PU-DVI1109TX & RX
DVI 5-Play HDBaseT™ Transmitter and Receiver
inc. PoC & 2x LAN, up to 100m
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PU-DVI1109TX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CYP PU-DVI1109TX

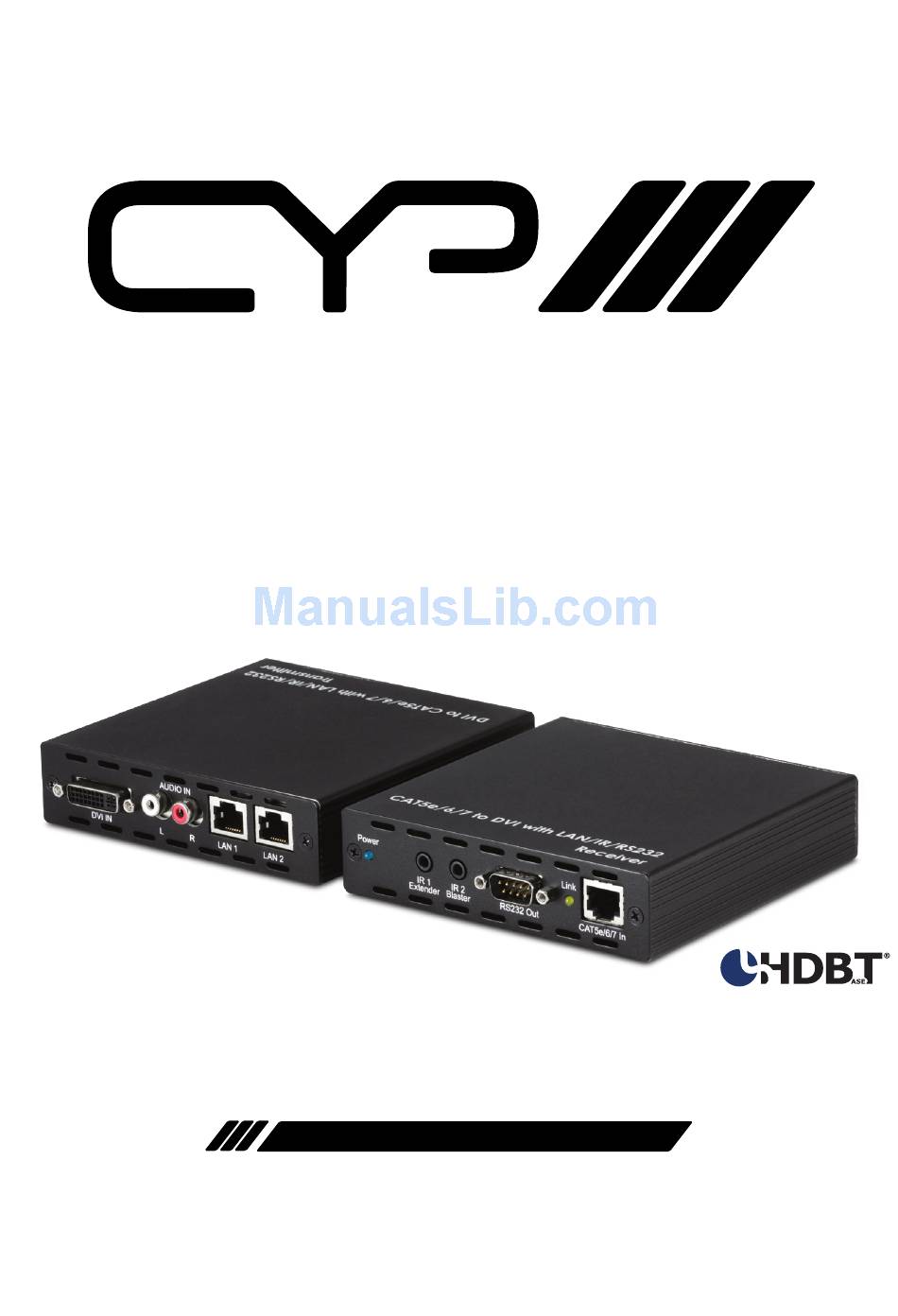

  • Page 1 PU-DVI1109TX & RX DVI 5-Play HDBaseT™ Transmitter and Receiver inc. PoC & 2x LAN, up to 100m OPERATION MANUAL...
  • Page 3: Copyright Notice

    DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......7 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Transmitter Front and Rear Panels ..8 6.2 Receiver Front and Rear Panels .... 9 6.3 IR Cable Pin Assignment .......10 6.4 D-Sub 9-Pin Definitions ......10 7.
  • Page 6: Introduction

    1. INTRODUCTION This HDBaseT DVI over CAT5e/6/7 Transmitter and Receiver set can transmit DVI video, analog audio, 2 LAN serving connections, control (RS- 232 and IR) and Power over Cable (PoC) over a single CAT5e/6/7 cable up to 100m. The Transmitter can power the Receiver, via the PoC function, eliminating the need for a separate power supply providing greater flexibility in installations.
  • Page 7: System Requirements

    4. SYSTEM REQUIREMENTS Input DVI source equipment such as PC/Laptop and output display with DVI input. RS232 controlled device Ethernet equipped device 5. FEATURES Simultaneous transmission of uncompressed video and audio (1080p@60Hz/-Deep Color) over a single CAT5e/6/7 cable for up to 100 m (300 ft.).
  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels Rear Front DC 24V AUDIO IN POWER LINK IR 1 IR 2 RS232 IN CAT5e/6/7 OUT DVI IN LAN 1 LAN 2 Power LED: This LED will illuminate when the 24 V DC Adaptor is connected to the AC outlet.
  • Page 9: Receiver Front And Rear Panels

    6.2 Receiver Front and Rear Panels Rear Front AUDIO OUT POWER LINK IR 1 IR 2 RS232 CAT5e/6/7 DVI OUT LAN 1 LAN 2 Power LED: The LED will illuminate when the 24 V DC Adaptor is connected to the AC outlet. IR 1 IN: Connect to supplied the IR Receiver cables for IR signal reception.
  • Page 10: Ir Cable Pin Assignment

    6.3 IR Cable Pin Assignment IR Blaster Power IR Blaster Signal IR Receiver IR Signal Power Ground 6.4 D-Sub 9-Pin Definitions Define TX/RX TxD / RxD RxD / TxD...
  • Page 11: Connection Diagram

    7. CONNECTION DIAGRAM Notebook PC with RS232 Control IR Extender IR Blaster Modem/Router 60° Media Server AUDIO IN DVI IN LAN 1 LAN 2 Power Supply DC 24V POWER LINK IR 1 IR 2 RS232 IN CAT5e/6/7 OUT Single CAT5e/6/7 RS232 Controlled Device POWER...
  • Page 12: Specifications

    8. SPECIFICATIONS Video Bandwidth 340 MHz/10.2 Gbps Ethernet Speed 100 Mbps Transmitter Inputs 1×DVI , 2×Ethernet, 1 x L/R 1×RS-232, 1×IR Extender Outputs 1×CAT5e/6/7, 1×IR Blaster Receiver Inputs 1×CAT5e/6/7, 1×IR Extender Outputs 1×DVI, 1×RS-232, 1 x L/R 2 ×Ethernet, 1×IR Blaster DVI In/Out Cable Distance Up to 6 Meters CAT6 In/Out Cable Up to 100 Meters...
  • Page 13: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable CAT7 Category 7 Cable HDMI High Definition Multimedia Interface Power over Cable...
  • Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...

This manual is also suitable for:

Pu-dvi1109rx
