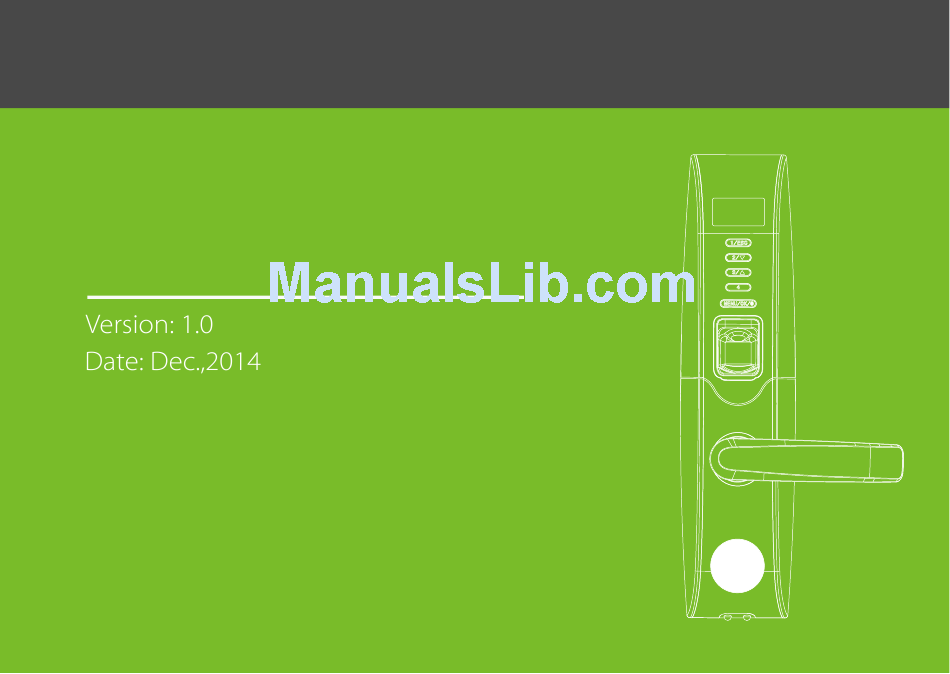

- Page 1 Installation Instruction L4000...
-
Page 2: Before Installation
Before Installation Diagram... -
Page 3: Packing List
PackingList Mounting Hardware Package Mounting Hardware Package 50-65mm door thickness 35-50mm door thickness 70mm 70mm 45mm 55mm 50mm 30mm 40mm 20mm... -
Page 4: Door Preparation
Door Preparation 1. Check door thickness, prepare the mounting hardware package and cylinder. Door Thickness D Spindle Length N Screw Length L Screw Length Q Screw Length E Cylinder Length (mm) (mm) (mm) (mm) (mm) (mm) 35-50 50-65 65-80 Note 1: The standard lock includes 2 mounting hardware package only, which is used for the door thickness of 35-50mm and 50-65 mm separately. - Page 5 2. Check door open direction. Left inward Right inward Left outward Right outward Note 1: Mortise (F) has 2 types: one is for left open, the other is for right open. Please use the correct one. Note 2: Strike plate (I) has 2 types: one is for inward open, the other is for outward open. Please use the correct one.
- Page 6 2. How to use mechanical key ? 3. How to use emergency power? Insert the key into key hole Remove the cover on the key and rotate 90°. hole with screwdriver or nails. Cautions 1. New lock is defined as always open mode. 2.
-
Page 7: Installation
Installation 1. Drill holes on the door. 2. Install the mortise(F). door thickness 35~80mm center line of the handle desired handle height Note 1: Align the template along the vertical center line of the mortise (F) at the desired handle height, and tape it to door. Note 2: Mark the holes first, then start drilling. - Page 8 4.Install spindle(D). 3.Install lock cylinder(E). Note: Ensure the red dot have to be vertically Note: Install lock cylinder in right direction, upward. then tighten screw (H) to fix it.
- Page 9 5. Install outdoor unit(B) with gasket(C).
- Page 10 6. Install mounting plate (K) with 7. Install spindle (D) on the door. gasket (C) on the door.
- Page 11 8. Install indoor unit (M). 9. Install the battery (O). Note: Push cable into the hole .
- Page 12 10.Mark and drill holes for striking. 21mm 15mm (Depth) 16.5mm 27.5mm 11.Test the lock by mechanical key(A) or registered fingerprint.
