Description and Operating Instructions
J Gigabit LAN Switch

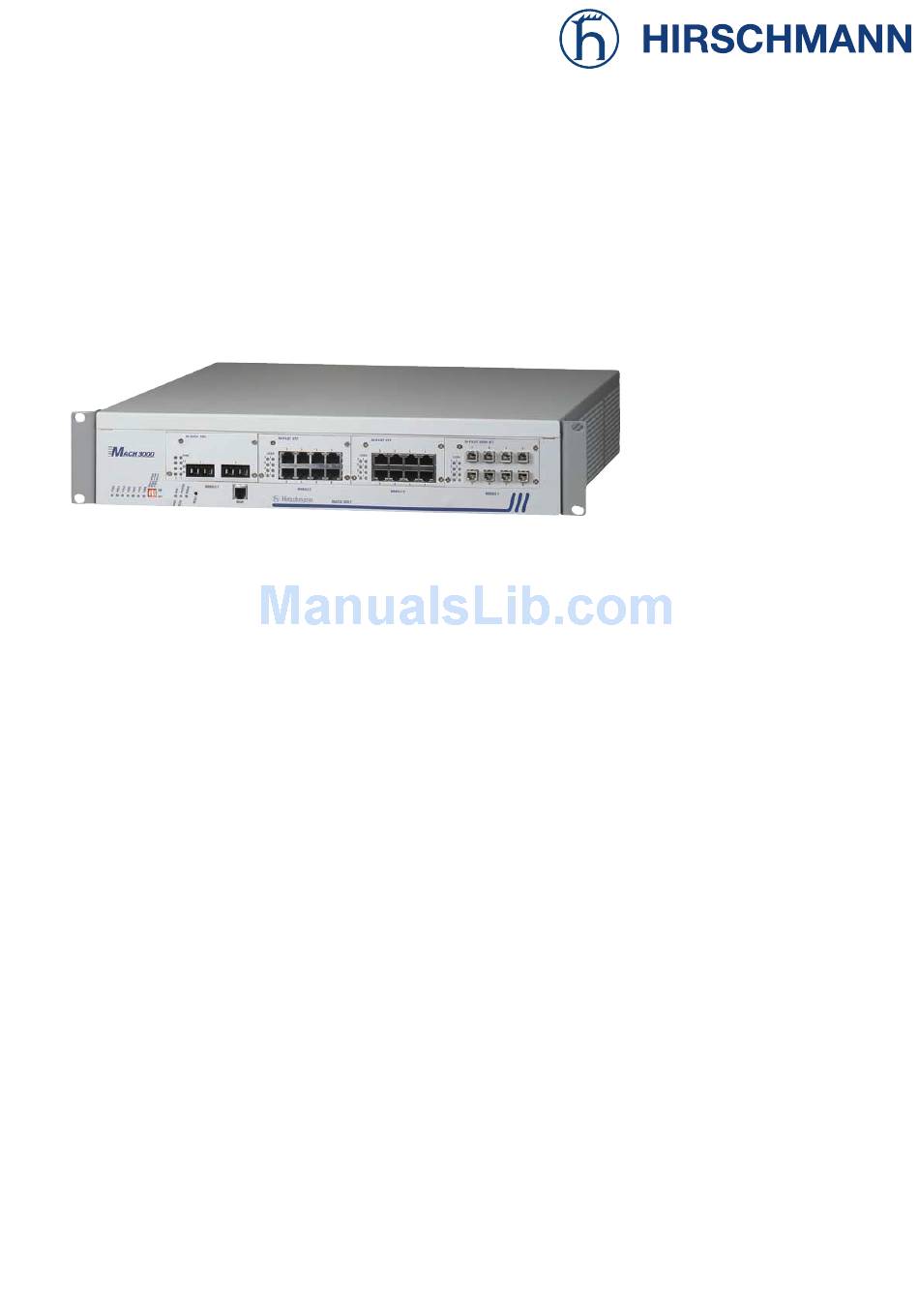

MACH 3001
MACH 3001
Order No.
943 739-001
The MACH 3001 is a modular Gigabit
Switch with optional IP routing.
The MACH 3001 chassis includes:
– one power supply unit (230/120VAC)
– four fans
– one basic board with four media sockets
for connecting media modules or the
router module
– two connectors for redundant 24VDC
operating voltage, 10 A maximum
The MACH 3001 switches support ETHERNET
10 MBit/s, Fast ETHERNET 100 MBit/s and
Gigabit ETHERNET 1000 MBit/s. They support
switchted ETHERNET networks, and backbo-
nes in accordance with IEEE standard 802.3
using copper technology or fiber optic (F/O).
Functions:
– Spanning tree algorithm
– Frame switching
– IP routing (optional)
– Displays
– Redundancy
– SNMP and web management
– Security
Displays for:
– Integrated Power supply unit (PSU1)
– 24VDC connectors (PSU2, PSU3)
– Integrated fans (FAN1 to FAN4)
– Integrated basic board (BOOT/RUN,
MASTER/SLAVE, ERROR)
– Media modules (Link status/Data, Syn-
chronous, Link status, Data out, Data In)
– Router module: Activity, Transmit
The integrated basic board has 4 sockets for
connecting the router module and media
modules. The MACH 3001 enables configu-
rations with up to 32 ports, depending on
the choice of media modules.
Media modules:
– 4 port ETHERNET multimode
2 port Fast ETHERNET singlemode
2 port Fast ETHERNET multimode
8 port Fast ETHERNET twisted pair
– 8 port Fast ETHERNET multimode
1 port Gigabit ETHERNET singlemode
– 2 port Gigabit ETHERNET singlemode
2 port Gigabit ETHERNET multimode
– 2 port Gigabit ETHERNET twisted pair
– Router module
The MACH 3001 has one V.24 interface for
external management.
You will find detailled description of the
Gigabit LAN Switch MACH 3000 in the
„MACH 3000 Manual – J Gigabit LAN
Switch" on the CD-ROM enclosed with the
chassis.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MACH 3001 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hirschmann MACH 3001

  • Page 1 – 2 port Gigabit ETHERNET multimode – 2 port Gigabit ETHERNET twisted pair – Router module The MACH 3001 has one V.24 interface for external management. You will find detailled description of the Gigabit LAN Switch MACH 3000 in the „MACH 3000 Manual –...
  • Page 2 The power supply unit PSU1 (regional vol- ship. All obligations on Hirschmann arise Cover empty slots with blank tage input, 230/120VAC) is fixed in the chas- from the respective purchasing agreement panels.
  • Page 3 Staff qualification Based specifications and Hirschmann Electronics GmbH Automation and Network Solutions requirements standards: Stuttgarter Straße 45-51 The devices fulfil the following specificati- D-72654 Neckartenzlingen Qualified personnel, as understood in this ons and standards: Telefon 01805-14-1538 manual and in the warning signs, are per- –...
  • Page 4 1.1 HARDWARE FUNCTIONS Diagnosis When restarting, the MACH 3001 performs Fig. 1: MACH 3001 chassis with plug-in modules a hardware self-test. During operation, an 1.3 SPECIFIC FUNCTIONS OF THE Note: Make a note of the community name...
  • Page 5 1.6 INTERFACES BOOT/RUN (green/yellow LED) Depending on the media modules connec- – not lit: – no power supply ted, the MACH 3001 provides you with the – lit yellow: – system start following interfaces: – flashes yellow and MASTER LED lit: 10/100 Mbit/s twisted pair connection –...
  • Page 6: Device Installation

    ACA and to the flash – far end fault memory. The LEDs RUN and Master are – automatic MDI/MDI-X configuration On the front of the MACH 3001, from left to flashing simultaneously and slowly during – autopolarity right, you will find the ”PSU1 active”, the writing process.
  • Page 7 Remove the three screws Fig. 7: MACH 3001 back of the device Lift the cover to an angle of 15° (see fig. 8). Caution! Fig. 9: Installing the media module Make sure that you do not bend the cover of the device too much, because the fixing loops could beco- me buckled otherwise.
  • Page 8: Basic Settings

    Fig. 14: 24VDC connectors of the MACH3001 Table 1 gives you an overview about the number of media modules, power supply units and fan units in the MACH 3001 chas- sis. – Stick one rubber foot approximately - Mounting the 24VDC connection 2 cm from each corner.
  • Page 9: Integrated Basic Board

    4.4 INTEGRATED BASIC BOARD Two different 1-port Gigabit ETHERNET media modules are available: The integrated basic board is for connecting – M-GIGA 1LH-SC singlemode for large the network segments. distances, The basic board has – M-GIGA 1LX-SC single/multimode for – the complete logic for controlling the data middle distances.
  • Page 10: Web-Based Management

    VLAN ID, for displaying the MAC address of Enter the IP address of the host, the IP To establish the connection enter the IP the MACH 3001 and for executing Plug & address of the desired station, and then address of the MACH 3001 you want to Play.
  • Page 11: Technical Data

    6. Technical Data General data MACH 3001 Chassis MACH 3001 Chassis with built-in basic board M-BASIC4, power supply unit and 4 fans; for up to 4 media modules, up to 2 external 24VDC power supply units Integrated power supply unit:...
  • Page 12 Scope of delivery MACH 3001 1 chassis with a basic board M-BASIC4 permanently built into a MACH 3001 chassis with integrated 230VAC power supply unit and 4 integrated fans, non-heating appliance power plug (Euro), terminal cable, mains connection cable, manual on CD-ROM, brief instructions;...
