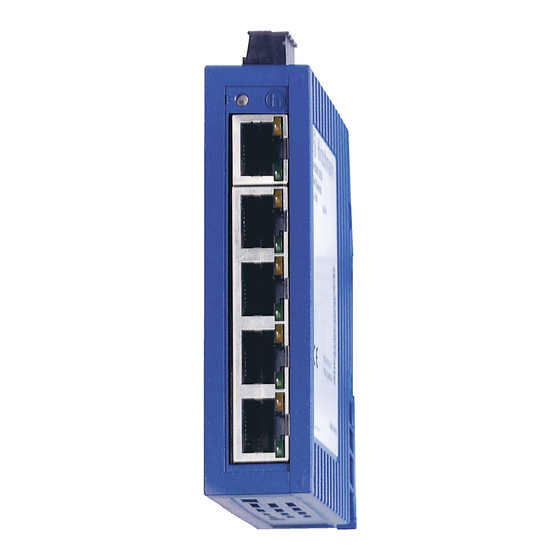

Hirschmann SPIDER 5TX Description And Operating Instructions

Industrial rail switch
Hide thumbs Also See for SPIDER 5TX:
1
2
3
4
5
6
7
Table of Contents

Advertisement

Quick Links

Download this manual
Description and operating instructions
Industrial Rail Switch
x
P

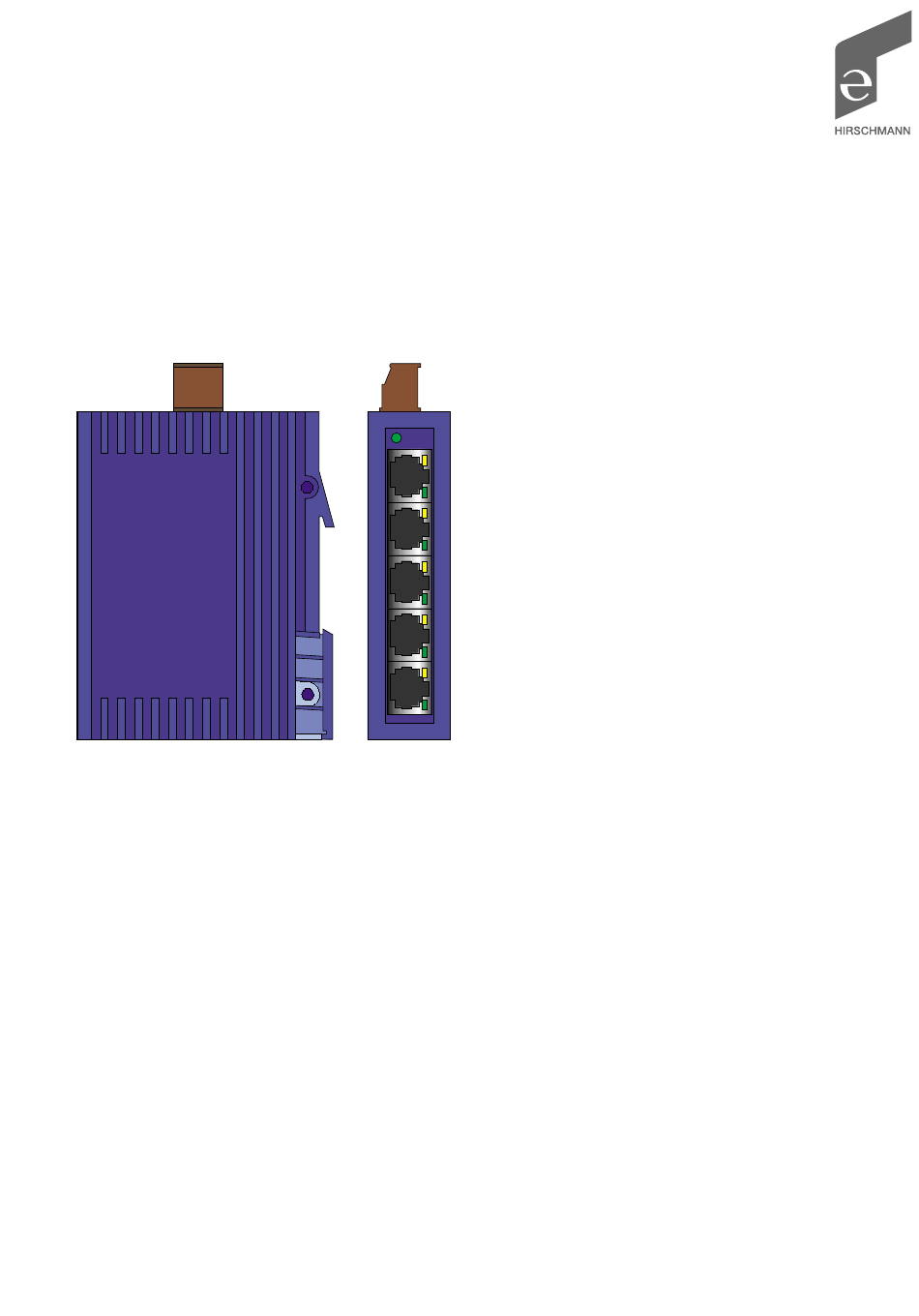

SPIDER 5TX
Order No.
943 824-001
The Rail Switch SPIDER 5TX has been
especially designed for use in industrial
environments. It supports ETHERNET
10 MBit/s and Fast ETHERNET 100 MBit/s.
The devices support switched ETHERNET
networks in accordance with IEEE standard
802.3 or 802.3u using copper technology.
The devices are plugged onto the standard
bar.
The devices have five 10/100 MBit/s twisted
pair ports (RJ45 connectors).
It is possible to connect up to five data
terminal equipments or other network
segments to the 10/100 Mbit/s ports using
twisted pair cabling. The ports support
Autonegotiation, autopolarity and

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPIDER 5TX and is the answer not in the manual?

Questions and answers

Related Manuals for Hirschmann SPIDER 5TX

Summary of Contents for Hirschmann SPIDER 5TX

  • Page 1 Description and operating instructions SPIDER 5TX Order No. Industrial Rail Switch 943 824-001 The Rail Switch SPIDER 5TX has been especially designed for use in industrial environments. It supports ETHERNET 10 MBit/s and Fast ETHERNET 100 MBit/s. The devices support switched ETHERNET networks in accordance with IEEE standard 802.3 or 802.3u using copper technology.
  • Page 2 We reserve the right to make technical the housing. modifications. Warning Note: The SPIDER 5TX is grounded via a The device may only be employed pin of the 3pin terminal block. Permission is not given for the circulation for the purposes described in the...
  • Page 3 EU directives at: serious injury and/or major damage. used in accordance with the instruction Hirschmann Electronics Only personnel that have received manual, may cause harmful interference to GmbH & Co. KG appropriate training should operate radio communications.
  • Page 4 Notes: n.c. Pin 4 If the receive line pair is incorrectly connec- Pin 3 – The SPIDER 5TX is grounded via a pin of Pin 2 ted (RD+ and RD- switched) polarity is auto- the terminal block. Pin 1 matically reversed.
  • Page 5 MICE ding to Fig 7. SPIDER Fig. 4: Configuration with SPIDER 5TX: Connection of up to 8 data termi- nal equipments or further segments via TP – The shielding ground of the twisted pair lines which can be connected is electrical- ly connected to the ground connection.
  • Page 6 5 x green LEDs DAT/STAT – data, link status 5 x yellow LEDs 10/100 – Data rate Scope of delivery Rail Switch SPIDER 5TX incl. terminal block for supply voltage description and operating instructions Order number Rail Switch SPIDER 5TX...
  • Page 7 Hirschmann. Solutions for communication. Germany Netherlands Hirschmann Electronics GmbH & Co. KG Hirschmann Electronics B.V. Automation and Network Solutions Pampuslaan 170 Stuttgarter Straße 45-51 1382 JS WEESP JBC-electronic D-72654 Neckartenzlingen Postbus 92 Postfach 1649 NL-1380 AB Weesp ul. Pilsudskiego 73 D-72606 Nürtingen...
