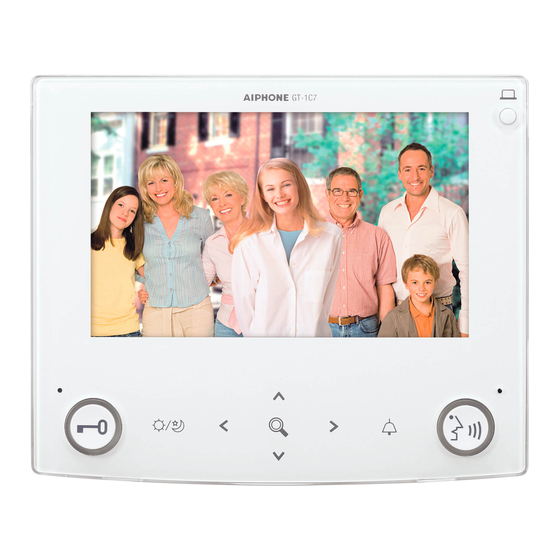

GT SERIES
Multi-Tenant Entry Security
Quick Start Installation Guide
ATTENTION:
This is an abbreviated Installation and Programming manual for the GT Series. The complete GT Series
Installation Manual is supplied with the GT-BC Bus Control Unit. Additional manuals are available online,
including The GT Standard & Expanded Setting Manual and GT Multi Building Installation and Setting Manuals.
If installing a digital entry system, the GT Setup Tool for programming tenant names and numbers and other
settings can be downloaded from www.aiphone.net.
Please note that images and illustrations depicted in this manual may differ from the actual product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aiphone GT SERIES

Summary of Contents for Aiphone GT SERIES

  • Page 1 Quick Start Installation Guide ATTENTION: This is an abbreviated Installation and Programming manual for the GT Series. The complete GT Series Installation Manual is supplied with the GT-BC Bus Control Unit. Additional manuals are available online, including The GT Standard & Expanded Setting Manual and GT Multi Building Installation and Setting Manuals.

  • Page 2: Table Of Contents

    Programming: addressing tenants via dip switch method....................19 Programming: entering resident info..........................20 Programming: entering entrance station and guard station information.................21 Programming: transfer data to entrance stations and guard stations................22 Programming: uploading to GT-MCX via LAN........................23 Programming: sharing handshake data..........................24 2 | GT Series Quick Start Guide...

  • Page 3: Standard System Wiring: Audio Only

    R1 R2 Max. wire distance from distribution point to any tenant is 980’ (300m). Max. cumulative wire distance is 8200’ (2500m). Refer to the GT Series Installation Manual for complete wire distance information. WIRE TYPE Homerun Wiring Method : Audio Line 20AWG (0.8mm)

  • Page 4: Standard System Wiring: Audio/Video

    R1 / R2 in the same manner. PS24 connection. (Terminal strip, Note: GT-2C(-L) requires ELM: Make (N/O) CN100 punch down block, wire a separate PS-24 power ELC: Common nuts, etc.) supply. ELB: Break (N/C) 4 | GT Series Quick Start Guide...

  • Page 5: Expanded System Wiring

    EXPANDED SYSTEM WIRING GT-VBX GT-VBC GT-VBC Video outputs to tenant stations and / or GT-4Z or GT-1Z units. Max. Connection of 25 tenants per for video trunk and 125 entrance total tenants per modules 5-8 GT-VBC. EXP STD EXP STD Connection for video entrance...

  • Page 6: Dip Switch Settings: Entrance And Guard Station Id Settings

    When using the GT-DMB(-N, -LVN), the settings listed below will be done via the keypad / display while in programming mode. Refer to the GT Series Installation Manual for instructions. Make sure power is removed from the system before making any dip switch changes.

  • Page 7: Programming

    PROGRAMMING: ENTERING TENANT INFORMATION The GT-DMB(-N, -LVN), GT-MKB-N, and modular digital entrance stations must be programmed with the resident’s information before tenant stations can be addressed. The resident’s information can be entered using the keypad or by using the GT Setup Tool software. Programming entrance stations using the GT Setup Tool for Windows Step 1: Open the GT Setup Tool and click the Create new site radio button.

  • Page 8: Programming: Addressing Tenants Via Dip Switch Method

    Enter the ID from the correlation table in Step 1 into the Unit Link-ID Setting for each station. GT-1A or GT-1D: Leave blank. Program via handshake method. Pages 14-15. Step 4: Click Save , and then Yes . 8 | GT Series Quick Start Guide...

  • Page 9: Programming: Entering Guard Station And Entrance Station Information

    PROGRAMMING: ENTERING GUARD STATION AND ENTRANCE STATION INFORMATION Programming Guard/Entrance Information Step 1: Click the + Guard Station , then select the guard station to program. Click Entrance Info, then enter 1 for the Section ID. Enter the Entrance ID (1-16), Entrance #, and Entrance Name (not required). Step 2: Click Guard Info, then enter 1 for the Section ID.

  • Page 10: Programming: Transfer Data To Other Guard/Entrance Stations

    Click Update . Click Save, then Yes . Click Select comparison and repeat until the Resident information has been copied to all desired entrance stations and guard stations. Step 4: When done, click Exit. 10 | GT Series Quick Start Guide...

  • Page 11: Programming: Uploading To Stations Via Usb

    DOWNLOAD FROM GOOGLE PLAY The Aiphone GT Setup Tool for Android app can be used to create and upload setting fi les to the GT-DMB(-N, -LVN) and GT-DB-VN entrance stations as well as the GT-MKB-N guard station. It is recommended to use the GT Support Tool for Windows for the initial setting fi...

  • Page 12: Gt Setup Tool For Android: Editing Settings

    Step 1 Step 2 Make the necessary edits to the Tap the menu button, then tap Save. downloaded setting fi le. Step 3 Enter a fi le name (i.e. Job Name) and tap OK. 12 | GT Series Quick Start Guide...

  • Page 13: Gt Setup Tool For Android: Uploading Settings

    GT SETUP TOOL FOR ANDROID: UPLOADING SETTINGS Step 1 Step 2 Step 3 Tap UPLOAD SETTING Select the fi le to upload, tap the Enter the appropriate passcode BY NFC. appropriate authorization level, then (default: Admin *1111, Manager #2222). tap OK. Ensure that Overwrite Unit Link-ID settings is checked, then tap OK.

  • Page 14: Programming: Addressing Tenants Via Handshake Method

    Download the program fi le to the GT Setup Tool from the GT-DB(-V, -VN) audio module with the USB cable provided. Click then select the station to download from and click OK . Step 9: Click to save the fi le to the computer. 14 | GT Series Quick Start Guide...
  • Page 15 PROGRAMMING: ADDRESSING TENANTS VIA HANDSHAKE METHOD (continued) GT-DMB-N(-LVN) Entrance Station Addressing Step 1: Using the GT Setup Tool for Windows, upload the program fi le to the GT-DMB-N(-LVN) with the USB cable provided. Click then select the station to upload to and click OK . Step 2 : While in standby mode, enter # plus the Admin ID code (default is 1111).

  • Page 16: Multi-Building System Wiring With Gt-Mcx

    Europe. This can be R1 R2 B1 B2 any device that parallels or commons the R1 / R2 connection. (Terminal strip, PQRS PQRS WXYZ WXYZ punch down block, wire PS24 nuts, etc.) 16 | GT Series Quick Start Guide...

  • Page 17: Gt-Mcx: Network Adaptor

    GT-MCX: NETWORK ADAPTOR The GT-MCX connects a GT system to a network, allowing the system to be remotely programmed or multiple GT systems to be tied together. When used for multiple systems, each system now becomes known as a section and requires its own GT-MCX.

  • Page 18: System Programming With Multiple Gt-Mcx: Multi-Building

    Click OK . A system will be created within the GT Setup Tool that will include the number of GT-MCX network adaptors selected and the number of guard stations and entrance stations selected for each. 18 | GT Series Quick Start Guide...

  • Page 19: Programming: Addressing Tenants Via Dip Switch Method

    The chart below is for the fi rst 48 stations in a non-expanded or expanded system. The full Dip Switch chart can be downloaded from http://www.aiphone.net/product/support/gt/ Standard system = S1 - S48. Expanded system = A1 - A250 & B251 - B500...

  • Page 20: Programming: Entering Resident Info

    Section List + Unit#, Section# + Unit#, or Unit Number in the Main Section. When set to these calling methods, resident information is not required in a Main Section when more than 500 tenants are being called. Tenants must be called via station number only. 20 | GT Series Quick Start Guide...

  • Page 21: Programming: Entering Entrance Station And Guard Station Information

    PROGRAMMING: ENTERING ENTRANCE STATION AND GUARD STATION INFORMATION Programming Entrance/Guard Information Step 1: Click the MCX1(Tenant Section), then select Entrance Info. Enter the Section ID, Entrance ID (2-16), Entrance #, and Entrance Name (not required) for each entrance station in the system. Ensure that the Section ID is correct in relation to which section the entrance station resides.

  • Page 22: Programming: Transfer Data To Entrance Stations And Guard Stations

    Step 5: Repeat steps 2-4 for each MCX(Tenant/Main section). When done copying all settings to each station in each section, click Exit to return to the main programming screen. 22 | GT Series Quick Start Guide...

  • Page 23: Programming: Uploading To Gt-Mcx Via Lan

    PROGRAMMING: UPLOADING TO GT-MCX VIA LAN Step 1: Click Upload Step 2: From the Upload menu, select the LAN radio button. Step 4: Select the desired GT-MCX and verify the correct IP address. Step 5: Select each station that you wish to upload the setting fi le to. Multiple stations can be selected at the same time.

  • Page 24: Programming: Sharing Handshake Data

    Upload settings to all stations in this section again (see page 23). Step 6: Repeat steps 1 - 5 for each tenant section in the system. http://www.aiphone.net/ AIPHONE CO., LTD., NAGOYA, JAPAN 24 | GT Series Quick Start Guide Issue Date: Nov. 2017 FK2114 B 1117 RZ 60150...
