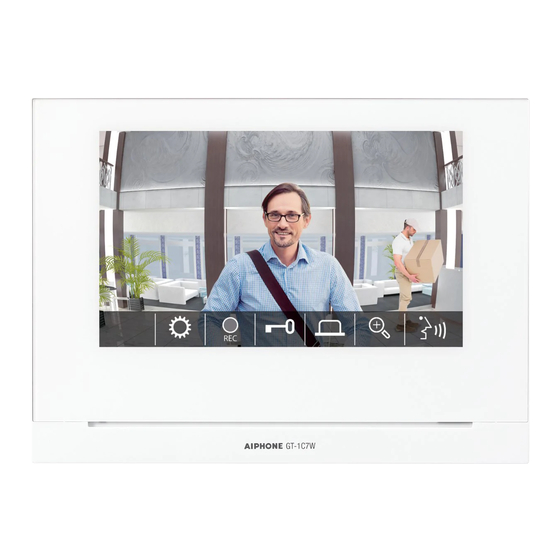

GT-1C7W/GT-1C7W-L
Residential/Tenant Station
OPERATION MANUAL
Be sure to read this document (Operation Manual) in advance to use the product in the proper manner. Keep this in a safe
place for future reference.
The illustrations and images used in this manual may differ from the actual items.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT-1C7W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aiphone GT-1C7W

Summary of Contents for Aiphone GT-1C7W

  • Page 1 GT-1C7W/GT-1C7W-L Residential/Tenant Station OPERATION MANUAL Be sure to read this document (Operation Manual) in advance to use the product in the proper manner. Keep this in a safe place for future reference. The illustrations and images used in this manual may differ from the actual items.

  • Page 2: Precautions

    • The illustrations used in this manual may differ from the actual product. property.) • Aiphone is not to be held responsible for any and all damages resulting 1. Do not attempt to cover, insulate, or coat the station in any way. This from content or specifi...
  • Page 3 • If there is no power for 15 minutes or more, the date and time return to default. • This station is not meant to protect lives or property. Aiphone is not to be held responsible for any and all resulting serious accidents, disaster accidents, or physical damage.

  • Page 4: Table Of Contents

    Table of Contents To delete a recording ............31 PRECAUTIONS ............2 To delete all recordings ............32 Copying recordings from the built-in memory PREPARATION onto a microSDHC card..........32 Emergency alarm ............. 33 Part names and functions ..........5 When receiving a call from the guard station .....

  • Page 5: Preparation

    PREPARATION Part names and functions Operation panel Remove protective fi lm before Color LCD touchscreen use. See the next page for details. Wireless LAN antenna B Wireless LAN antenna A RESET button Press this button to reboot the station when it is not responding.

  • Page 6: How To Read Screen

    (*1) Hearing aid icon * This icon blinks when a new en a a new (GT-1C7W-L only) noti cation has arrived. Monitor ( P. 28) Tap to monitor the entrance station. Set whether or not to enable mobile device to receive calls from the entrance station and guard station.

  • Page 7: Initial Set-Up

    PREPARATION Initial set-up Setting the current date and time Set the day, month, year, hour, and minute individually by taping When the station is powered up for the rst time, set the current date and time. If the monitor is o , tap the screen to turn on the LANGUAGE 1/2 screen.

  • Page 8: Preparing A Microsdhc Card

    Should this occur, reformat the card. • If a message appears to format the card, tap Aiphone is not responsible for the performance of a microSDHC • format the card. ( P. 9) card.

  • Page 9: Formatting A Microsdhc Card

    PREPARATION Formatting a microSDHC card MicroSDHC card may require to be formatted when used with the station for the rst time. * Previously formatted microSDHC card may not work with the station. Be sure to format a microSDHC card using the station.

  • Page 10: Connecting With A Mobile Device

    • Aiphone app may not work correctly. Up to 8 mobile devices can be registered to the station. • Register a wireless LAN router to only one GT-1C7W(-L) in the same residence/tenant. • Features: • A call and video from the entrance station or guard station can be received with a mobile device.

  • Page 11: Connecting The Station With Wi-Fi

    PREPARATION Connecting the station with Wi-Fi Press the WPS button on the Wi-Fi router, and then tap There are two connecting methods available. • Auto Connect (WPS) • Manual Setup • Wi-Fi (Search SSID) • Wi-Fi (Manual Setup) • IP Address Connection between the residential/tenant station and Connecting using "Auto Connect (WPS)"...
  • Page 12 PREPARATION Searching SSID When inputting SSID manually > The SSID of a router with the SSID stealth mode will not From the MENU screen, tap be displayed. Other Settings . > From the MENU screen, tap Other Settings . A con rmation mesage will be shown. To continue con guring the settings, tap A con rmation screen will be shown.
  • Page 13 PREPARATION Number of registerd Apps con rmation Setting IP address message From the MANUAL SETUP screen, tap IP Address . When connecting to the network for the rst time, delete registered apps before making setting changes. P. 20) The setting items will be shown. Con gure the settings for each item.

  • Page 14: Connection Check

    PREPARATION Connection check Con rming the current network settings Con rm the current network settings when the network > From the MENU screen, tap connection is unstable. Other Settings . > From the MENU screen, tap Other Settings . A con rmation screen will be shown. To continue con guring the settings, tap A con rmation screen will be shown.

  • Page 15: Enabling Or Disabling The Network Connection

    PREPARATION Enabling or disabling the network Selecting the antenna connection Antenna of the station can be selected according to the reception status or the location of the station or Wi-Fi router. If necessary, disable or enable the network connection. > >...
  • Page 16 PREPARATION Using the keyboard Full keyboard Alphanumeric input mode (lower case) Cursor Backspace key (yellow highlight) Cancel and return to Applies the inputted value and the previous screen. closes the keyboard Switches to the alphanumeric Moves the cursor input mode (upper case). Symbol input mode Alphanumeric input mode (upper case) Switches to the alphanumeric input mode...

  • Page 17: Connecting A Mobile Device With A Wi-Fi Router

    Wi-Fi router as the one connected to the station. Refer to the instruction manual of the Run the AIPHONE Type GT from the icon on the mobile device for how to connect the mobile device to a Wi-Fi Home screen.
  • Page 18 Read the screen for the End User Licence Select Agree or Disagree and tap Agreement carefully and tap Next . AIPHONE Type GT cannot be used without the End User License Agreements. The following message will be shown. Read the message, and proceed to the mobile device operation.
  • Page 19 PREPARATION If the following error message appears Operation with a mobile device You need to register the mobile device to the residential/ tenant station manually as follows. Enter the one-time password displayed on the screen of the station within the expiration time, to close the error message.

  • Page 20: Deleting The Mobile Device From The Station

    PREPARATION Deleting the mobile device from the station. > From the MENU screen, tap Other Settings . A con rmation screen will be shown. To continue con guring the settings, tap Tap Register / Delete Apps Delete Apps . Tap the mobile device to delete. The 7th and 8th mobile devices will be shown on the >...

  • Page 21: Using The Station Receiving A Call

    You can speak for approx. 60 seconds. during a call. ( P. 25) Hearing aid with T mode is available. (GT-1C7W-L only) • When the ambient noise is loud enough to interrupt the audio, the touch-to-talk method is recommended. ( P.

  • Page 22: Operation During Receiving A Call Or Communication

    USING THIS STATION Operation during receiving a call or communication Releasing the door Activating doctor call If doctor call (automatic entry) is active, the door release relay While being called or communicating, tap will activate on the entrance station when the call is placed to the residential/tenant station.

  • Page 23: Changing The Display To The Full-Screen Mode

    USING THIS STATION Changing the display to the full-screen Pan/tilt operation mode When in zoom view, tap , or Tap on the center of the screen. • : Up • : Down • : Left • : Right The icons will be hidden from the screen. ■...

  • Page 24: Recording

    USING THIS STATION ■ Manual recording Recording Video can be manually recorded during communication. ■ Automatic recording when a video is displayed. The station automatically records video at the entrance station after the elapse of a certain period of time after receiving a call.

  • Page 25: Communication Using Touch-To-Talk

    USING THIS STATION Communication using touch-to-talk Adjusting the screen brightness Touch-to-talk is a method of communication in which manual control of incoming and outgoing audio is used. Touch-to-talk is recommended in loud or noisy environments. While in communication, tap The brightness adjusting bar will be shown. The touch-to-talk method will be enabled.

  • Page 26: Turning On/Off Visibility Enhancement

    USING THIS STATION Turning on/o visibility enhancement Turning on/o the light control If the video on the screen is hard to see due to backlight in the When the light control is active, the installed light equipment daytime or darkness at night, turn on the visibility near the entrance will be lit during receiving a call from the enhancement.

  • Page 27: Switching To Surveillance Camera Video Image

    USING THIS STATION Switching to surveillance camera video image This feature can be used only when a surveillance camera is installed. Switch the video image at between the entrance station and the surveillance camera. when video image at the entrance station is displayed.

  • Page 28: Monitoring The Entrance Station

    • Activating the external unit such as lightning equipment ( P. 22) NOTE: Entrance station cannot be monitored by using the AIPHONE • Type GT. You may not be able to perform monitoring depending on the • setting of the entrance station. Also, you cannot monitor an entrance station without a camera.

  • Page 29: Playing Recordings

    USING THIS STATION Playing recordings Screens and icons ■ Recording list The recordings are shown in order. * When a microSDHC card is installed, only the recordings in a microSDHC card will be shown. To display the recordings stored in the built-in memory, remove the microSDHC card. : Shows this recording is not Recorded date and time protected.

  • Page 30: Playing Recordings

    USING THIS STATION Playing recordings Protecting recordings Protect recordings from being accidentally overwritten. From the MENU screen, tap To protect a recording on the recording list From the MENU screen, tap The recording list screen will be shown. of the recording to protect. The recording list screen will be shown.

  • Page 31: Deleting A Recording

    USING THIS STATION ■ To cancel the protection of the currently- Deleting a recording selected recording NOTE: A protected recording cannot be deleted. To delete, the protection While in standby, tap must be removed. Tap OFF . To delete a recording Protect ■...

  • Page 32: To Delete All Recordings

    In order to play a recording on a PC, a special tool for recording • and playback is necessary. It can be downloaded from the Aiphone website (www.aiphone.net). The timestamp of the exported recordings will be displayed in • Coordinated Universal Time (UTC).

  • Page 33: Emergency Alarm

    USING THIS STATION Emergency alarm When the emergency alarm switch is pressed and locked (or when there is a line - o trouble) • An alarm will sound. • A warning signal will be sent to the guard station. • An emergency screen will be displayed.

  • Page 34: Noti Cation

    USING THIS STATION Notifi cation The following noti cations can be checked. • Date and time are not set. • The rmware can be updated. From the MENU screen, tap The notification list will be shown. Tap Check of the noti cation to view. The details of the notification will be shown.

  • Page 35: Settings

    SETTINGS Settings list The following are all of the available settings. These settings can be adjusted at any time. Relevant Item Details page Brightness Adjusts the screen brightness. Volume Receive Adjusts the receiving volume. Ringtone Adjusts the incoming ringtone volume. Touch Sounds Enables or Disables the touch sound made whenever the touchscreen is used.

  • Page 36: Adjusting Screen Brightness

    SETTINGS Adjusting screen brightness Settings 1 to 5 Default From the MENU screen, tap The SETTINGS 1/2 screen will be shown. Tap Brightness . The brightness adjusting bar will be shown. to adjust the screen brighter, and to adjust the screen darker. to apply changes.

  • Page 37: Changing The Sound Settings

    SETTINGS Changing the sound settings Adjusting receiving volume Enabling/Disabling the touch sound Settings 1 to 3 Enable (ON) or disable (OFF) the touch sound made whenever Default the touchscreen is used. Volume From the MENU screen, tap Settings ON/OFF Default Receive .

  • Page 38: Changing The Time Settings

    SETTINGS Changing the time settings Setting the current date and time to apply changes. P. 7) When one of the following time zone is set, the daylight saving time setting is automatically applied, so set Daylight Saving Time to None ( P.

  • Page 39: Setting Daylight Saving Time

    SETTINGS Setting daylight saving time Changing the display language Set whether to utilize daylight saving time (+1(h)) or not (None). P. 7) Settings Description None Daylight saving time is not utilized. +1(h) Daylight saving time is utilized for 1 hour. Cleaning mode Date/Time From the MENU screen, tap...

  • Page 40: Other Settings

    SETTINGS Other settings ATTENTION: While confi guring the settings in "Other Settings", the station will not respond to an incoming call and will not sound ringtone. Registering/Deleting a mobile Tap Video Quality . device • Downloading the App to the mobile device P.

  • Page 41: Viewing Station Information

    SETTINGS Con guring the settings for automatically Viewing station information updating the station View a noti cation for updating the rmware of the station. If an To enable the automatic update, the station must be update is available, continue to update the station. It is also connected to the network.

  • Page 42: Confi Guring Network Settings

    "Deleting a recording" ( P. 31) "Please read the end user license agreement in the app." will be shown. Con rm the contents with the AIPHONE Type GT and select "Agree" or "Disagree". NOTE: If the station is not connected to the network, you cannot confi rm •...

  • Page 43: For Proper Use Of The Station

    FOR PROPER USE OF THE STATION Updating a fi rmware of the station The rmware of the station must be updated periodically. The following methods are available for updating. • Automatic update through the network. • Receiving a noti cation for available updates through the network. •...

  • Page 44: Updating The Station By Using A Microsdhc Card On

    Use this method when the station is not connected to the network. In advance, download the newest version of the rmware from the Aiphone website (www.aiphone.net) to a microSDHC card. Install a microSDHC card on which the newest version of the rmware is stored.

  • Page 45: Troubleshooting

    FOR PROPER USE OF THIS STATION Troubleshooting If issues with the station occur, refer to the following information to determine whether the issue can be corrected by the suggested testing and solutions. For further help and assistance, contact your installer or service provider. Problem Cause Solution...

  • Page 46: Speci Cations

    FOR PROPER USE OF THIS STATION Specifi cations Power supply DC24V (from power supply) Screen 7 inch TFT LCD touch screen GT-1C7W : (MAX) Approx. 300mA Mounting Wall-mount Current consumption GT-1C7W-L : (MAX) Approx. 360mA Material Self-extinguishing resin Hands-free (Auto-voice actuation)
  • Page 47 Trade Name : AIPHONE GT-1C7W, GT-1C7W-L Model : Responsible Party – U.S. Contact Information Company Name : AIPHONE CORPORATION Location of O ce : 6670 185th Ave NE, Redmond, WA, 98052, USA Telephone Number : (800) 692-0200 Email Address : tech@aiphone.com Website : https://www.aiphone.com/home...

  • Page 48: Warranty

    Warranty Aiphone warrants its products to be free from defects of material and workmanship under normal use and service for a period of 2 years after delivery to the ultimate user and will repair free of charge or replace at no charge, should it become defective upon which examination shall disclose to be defective and under warranty.
