Robe ColorStrobe IP User Manual page 27

Mode/channel
1 2 3 4
* * * *
* * * *
* * * *
* * * *
* * * *
* * * *
* * * *
* * * *
* * * *
* * * *
* * * *
* * * *
* * * *
* In the Halogen lamp mode the Dimmer channel imitates behaviour of the halogen lamp during dimming

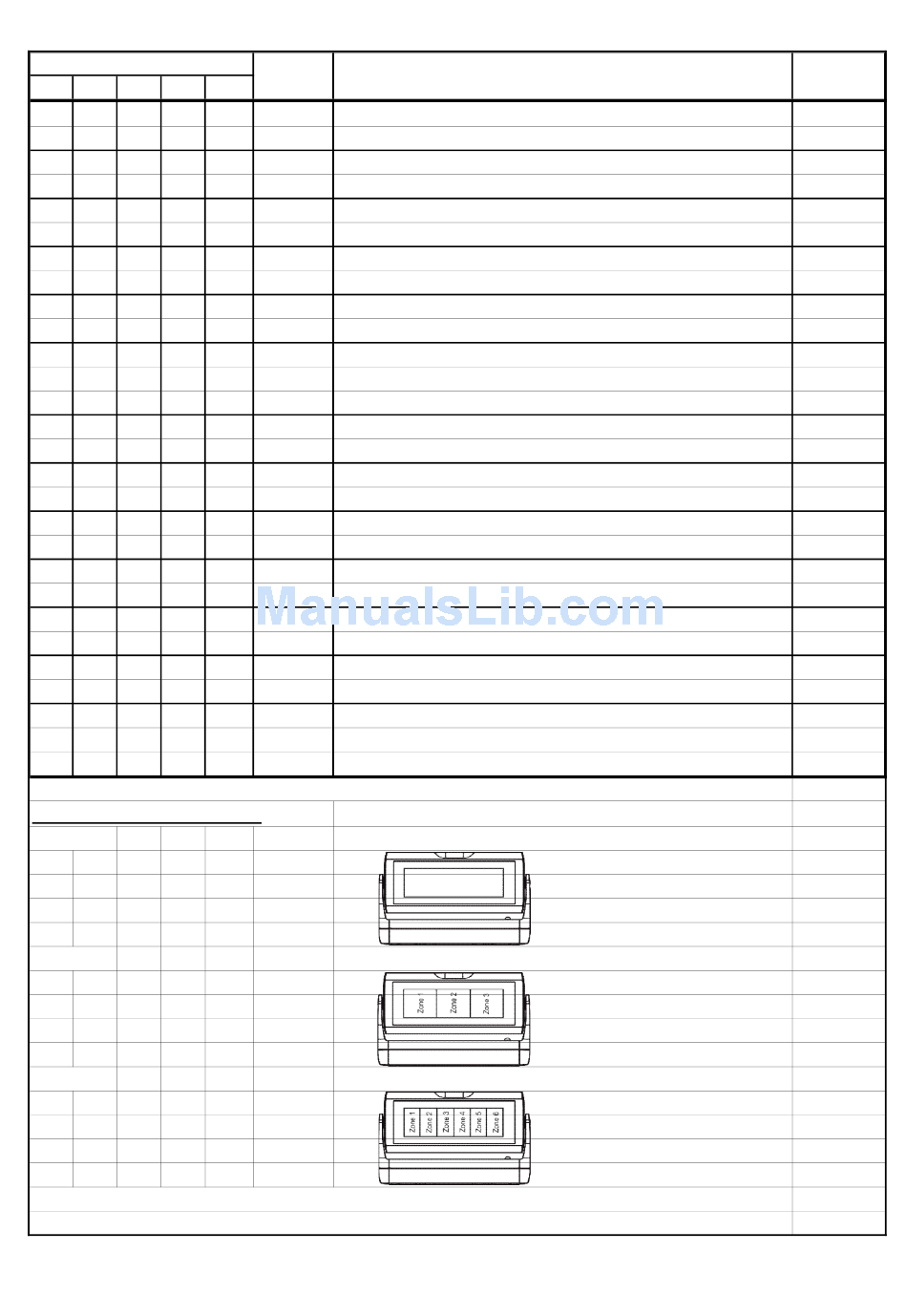

Order of zones (front view) :
Mode 1,2,3
Mode 4
Mode 5
Copyright © 2017 Robe Lighting s.r.o. - All rights reserved
All Specifications subject to change without notice
DMX
5
value
30 Green intensity (8bit)-zone 5
0-255 Coarse green intensity from 0% to 100%
31 Blue intensity (8bit)-zone 5
0-255 Coarse blue intensity from 0% to 100%
32 White intensity (8bit)-zone 5
0-255 Coarse white intensity from 0% to 100%
33 Intensity (8bit)-zone 5
0-255 Coarse intensity from 0% to 100%
34 Duration - zone 5
0-255 Light time duration from min. —>max.
35 Rate - zone 5
0-5 No flash
6-255 Flash frequency from min. —>max
36 Red intensity (8bit)-zone 6
0-255 Coarse red intensity from 0% to 100%
37 Green intensity (8bit)-zone 6
0-255 Coarse green intensity from 0% to 100%
38 Blue intensity (8bit)-zone 6
0-255 Coarse blue intensity from 0% to 100%
39 White intensity (8bit)-zone 6
0-255 Coarse white intensity from 0% to 100%
40 Intensity (8bit)-zone 6
0-255 Coarse intensity from 0% to 100%
41 Duration - zone 6
0-255 Light time duration from min. —>max.
42 Rate - zone 6
0-5 No flash
6-255 Flash frequency from min. —>max
DMX protocol
Function
Page 5
Type of
control
proportional
proportional
proportional
proportional
step
step
step
proportional
proportional
proportional
proportional
proportional
step
step
step
