3.2 Mounting the fixture

Disconnect the fixture from mains prior to start any installation/assembly works.
The ColorStrobe IP can be arranged in any position/orientation without altering its operation characteristics. The
LED module can be tilted to desired position by means of the tilt lock.
Universal base adaptor installation

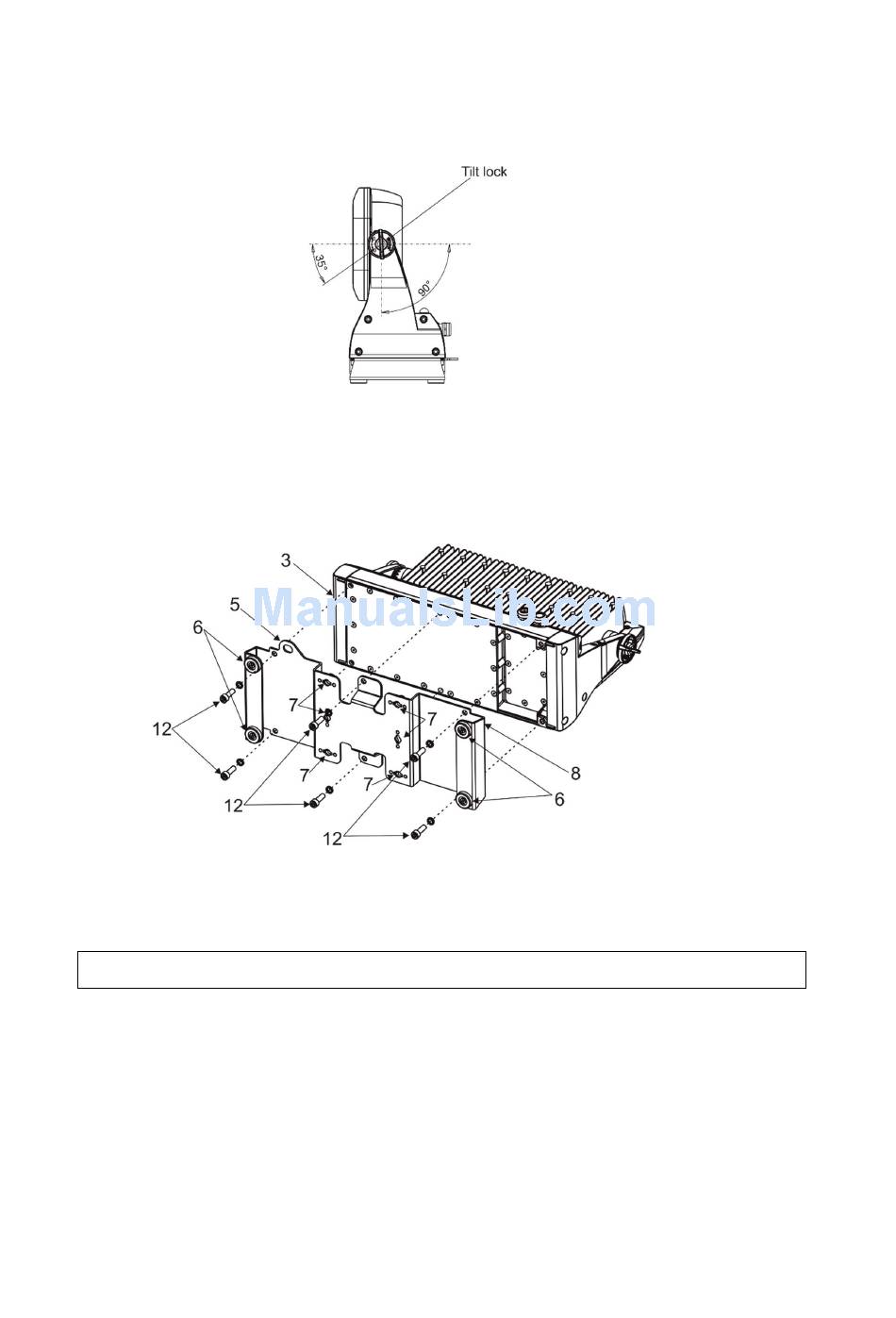

Screw the universal base adaptor (8) to the base (3) of the fixture by means of six Allen head bolts M8x25 (12) with
six spring washers .
The Universal base adaptor of the fixture (8) is equipped with two pairs of rubber feet (6) for standing the fixture
on the floor and three pairs of openings (7) for installation of the mounting adaptors Omega CL (9) which allow to
rig the fixture to the truss.
For overhead installation, the fixture must be always secured with a safety wire.
A structure (truss) intended for installation of the fixture (s) must safely hold weight of the fixture(s) placed on it.
The structure has to be certificated to the purpose.
The operator has to make sure that safety-relating and machine-technical installations are approved by an expert
before taking into operation for the first time and after changes before taking into operation another time.
IMPORTANT! Overhead installation requires extensive experience including calculating working load limits,
installation material being used, and periodic safety inspection of all installation material and fixtures.
Fixtures may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible
installation, do not install the fixtures and consult installation with an expert.
