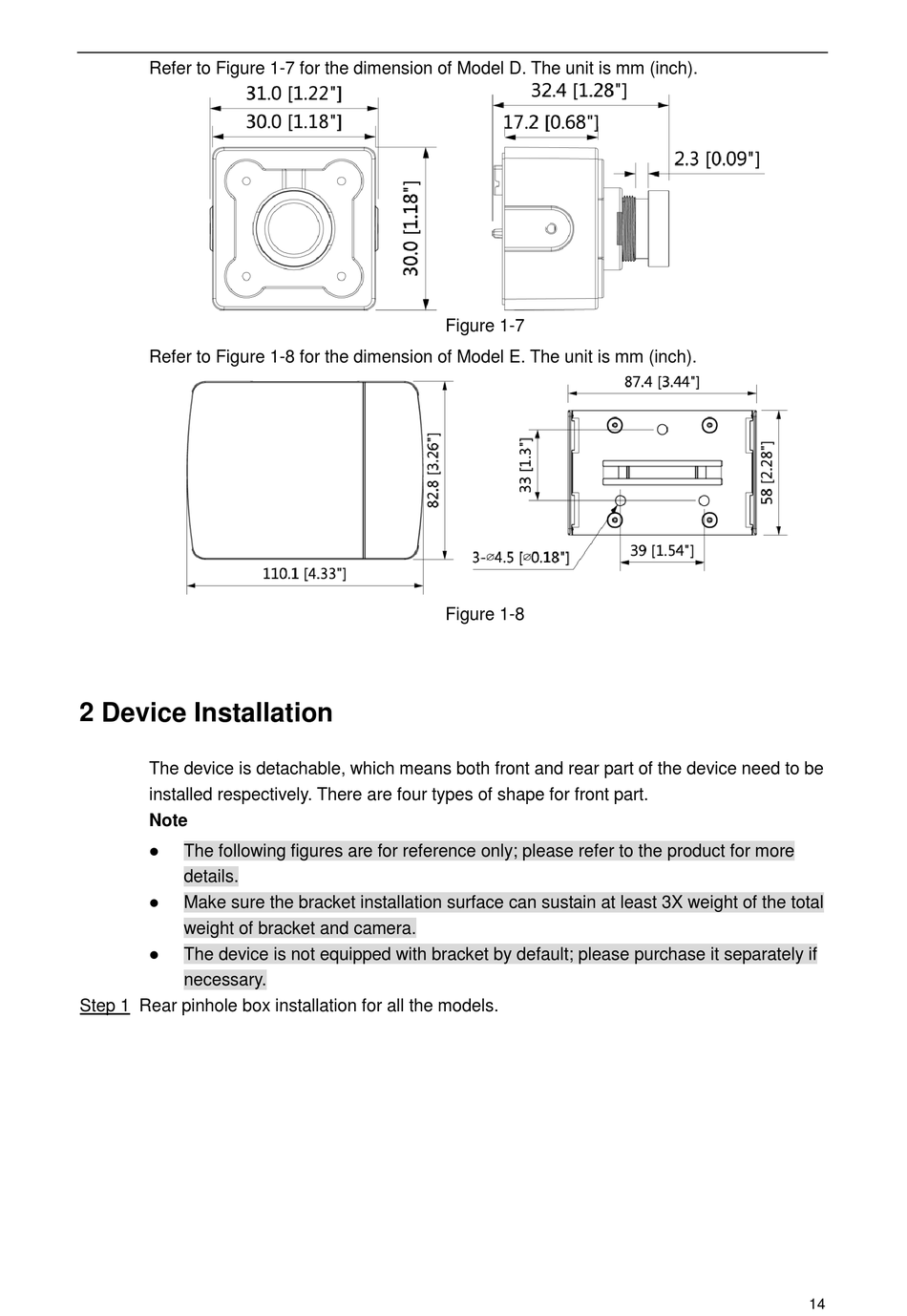

Refer to Figure 1-7 for the dimension of Model D. The unit is mm (inch).
Refer to Figure 1-8 for the dimension of Model E. The unit is mm (inch).

2 Device Installation

The device is detachable, which means both front and rear part of the device need to be
installed respectively. There are four types of shape for front part.
Note
The following figures are for reference only; please refer to the product for more
details.
Make sure the bracket installation surface can sustain at least 3X weight of the total
weight of bracket and camera.
The device is not equipped with bracket by default; please purchase it separately if
necessary.
Step 1 Rear pinhole box installation for all the models.
Figure 1-7
Figure 1-8
14
