Dimension - Dahua IPC-HUM8231-L3 Quick Start Manual

Port name

1.2 Dimension

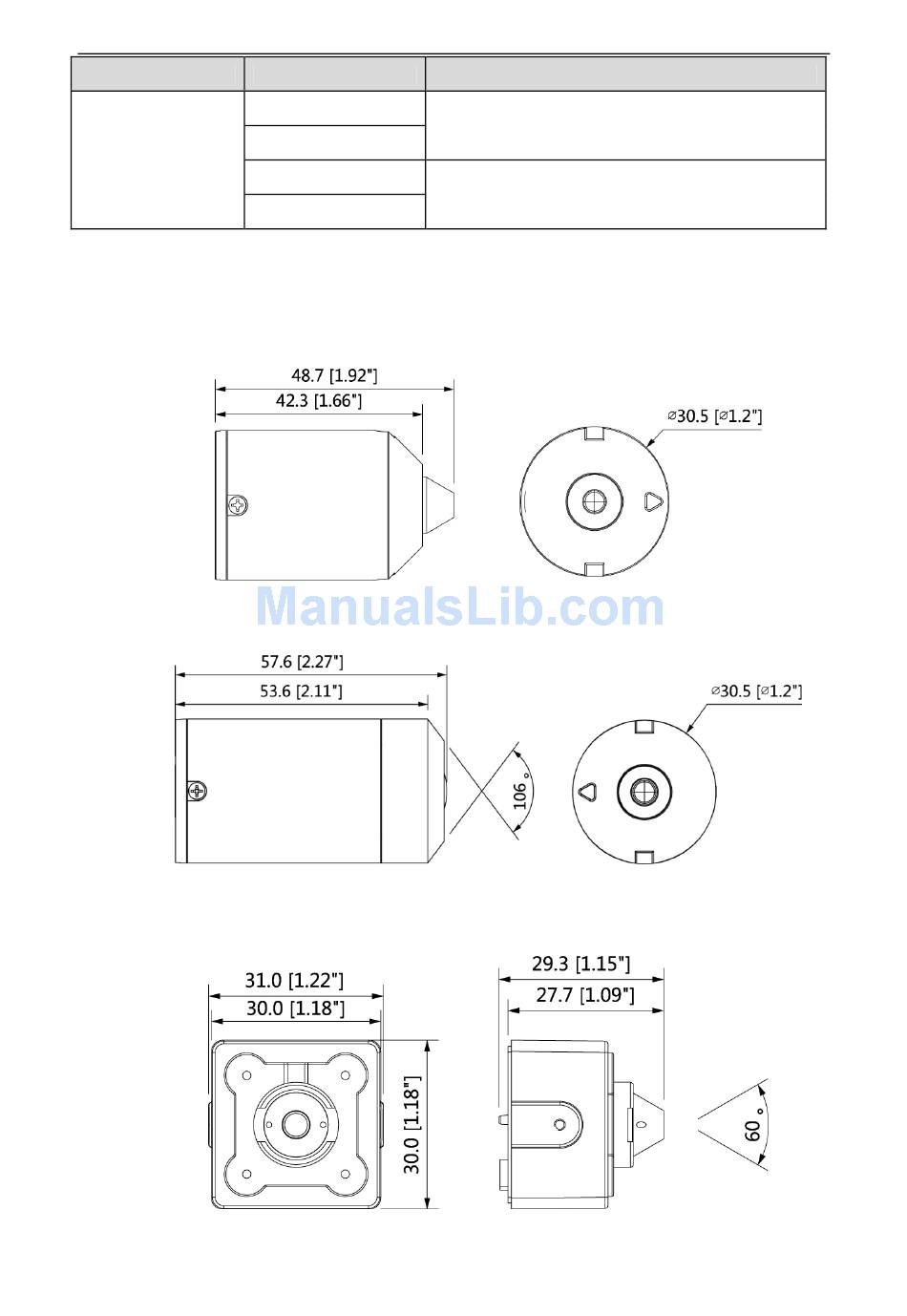

Refer to Figure 1-4 for the dimension of Model A. The unit is mm (inch).
Refer to Figure 1-5 for the dimension of Model B. The unit is mm (inch).
Refer to Figure 1-6 for the dimension of Model C. The unit is mm (inch).
Cable port name
N1
C1
N2
C2
Table 1-2
Function description
Alarm output port 1, output alarm signal to alarm
device.
Alarm output port 2 (reserved).
Figure 1-4
Figure 1-5
Figure 1-6
