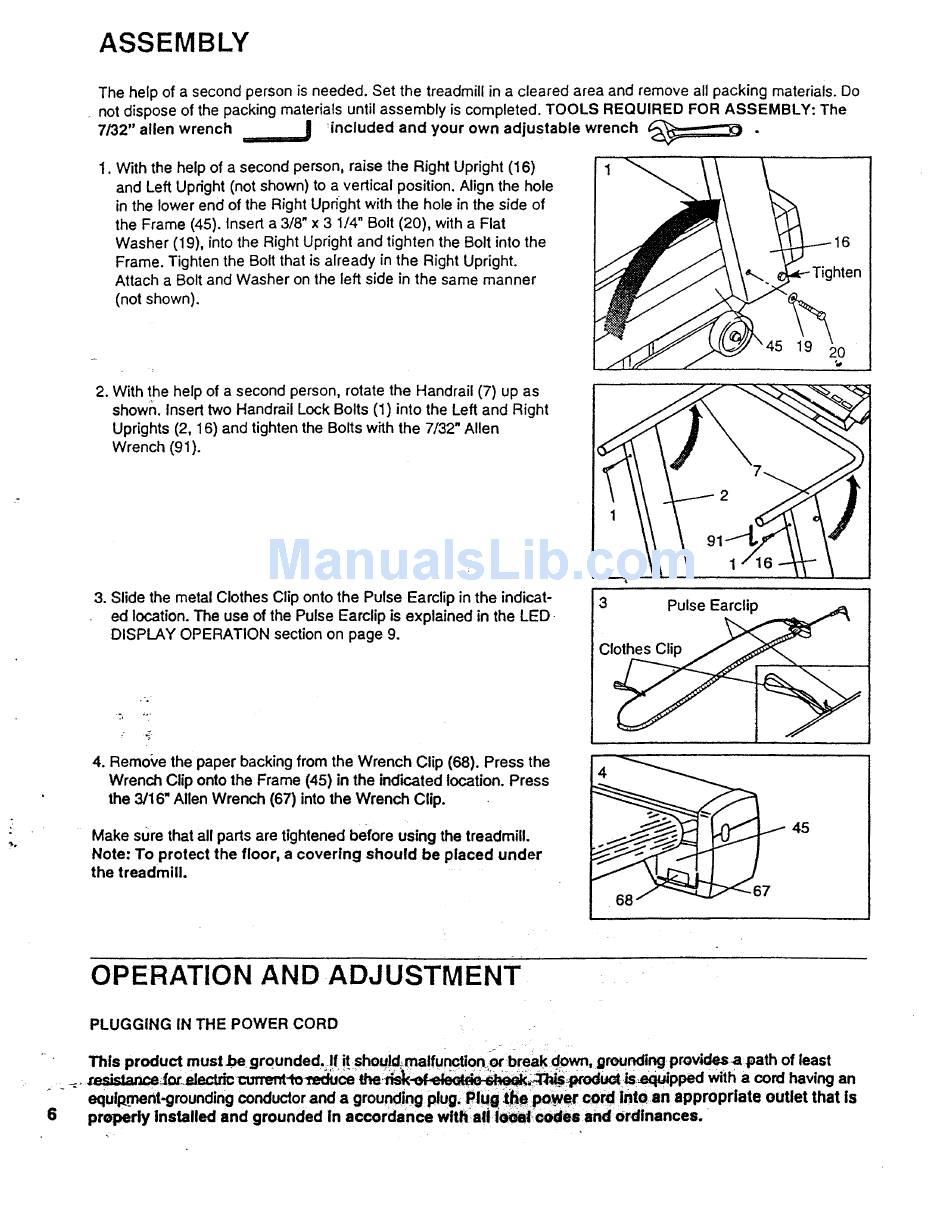

ASSEMBLY
The help of a second person is needed. Set the treadmill in a cleared area and remove all packing materials. Do
not dispose of the packing materials until assembly is completed. TOOLS REQUIRED FOR ASSEMBLY: The
7/32" allen wrench ==.,==,==j :included and your own adjustable wrench
1. With the help of a second person, raise the Right Upright (16)
and Left Upright (not shown) to a vertical position. Align the hole
in the lower end of the Right Upright with the hole in the side of
the Frame (45). Insert a 3/8" x 3 1/4" Bolt (20), with a Flat
Washer (19), into the Right Upright and tighten the Bolt into the
Frame. Tighten the Bolt that is already in the Right Upright.
Attach a Bolt and Washer on the left side in the same manner
(not shown).
19 )
2. With the help of a second person, rotate the Handrail (7) up as
shown. Insert two Handrail Lock Bolts (1) into the Left and Right
Uprights (2, 16) and tighten the Bolts with the 7/32" Allen
Wrench (91).
3. Slide the metal Clothes Clip onto the Pulse Earclip in the indicat-
ed location. The use of the Pulse Earclip is explained in the LED
DISPLAY OPERATION section on page 9.
4. Remo_,e the paper backing from the Wrench Clip (68). Press the
Wrench Clip onto the Frame (45) in the indicated location. Press
the 3/16" Allen Wrench (67) into the Wrench Clip.
Make sure that all parts are tightened before using the treadmill.
Note: To protect the floor, a covering should be placed under
the treadmill.
91
1
45
OPERATION AND ADJUSTMENT
PLUGGING IN THE POWER CORD
• " This product must be grounded. !f. it shou!d_malfunctionor •break down, grounding provides a path of least
_:_.r__f_ectticcurm_ffo-_Cethe _roduGt is_pped With a cord having an
equip_rnent-grounding conductor and a grounding plug. Plug t f_epower cord Into an appropriate outlet that is
6 properly Installed and grounded in accordance withal| Jeeiai _les and ordinances.
