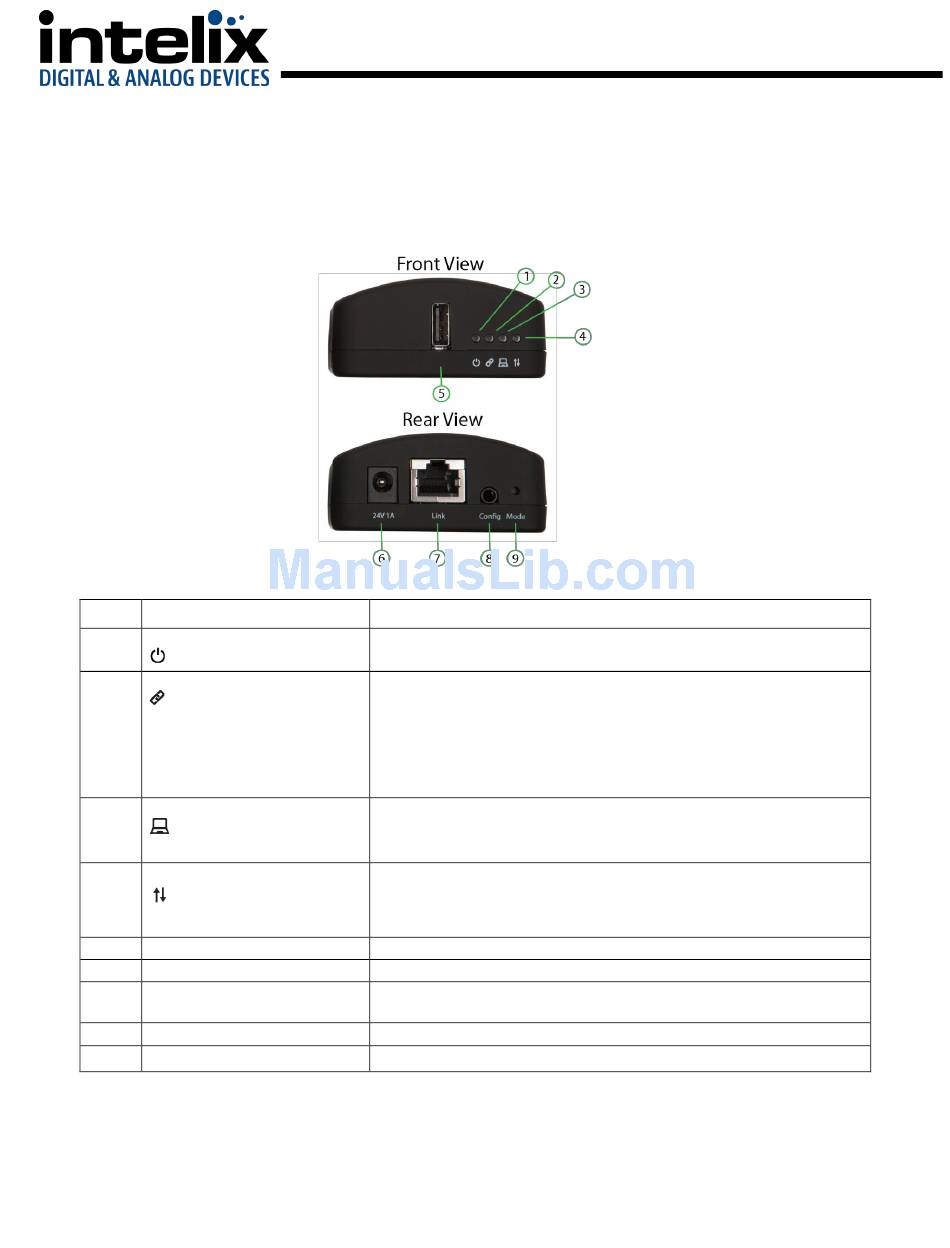

The REX
The REX provides a USB Type A port for connecting standard USB devices. The REX allows you to
connect one USB device directly. Additional devices may be connected by attaching USB hubs to the
REX. The REX is powered either directly by the included power supply, or via the CAT 5e/6/7 link
extension cable from the LEX. The USB port delivers up to 1 Amp of current to the attached USB device.
ITEM
TYPE
1
Power LED (Green)
2
Link LED (Green)
3
Host LED (Green)
4
Activity LED (Green)
5
USB Device Port
6
Power Port
7
Link Port (RJ45)
8
Config Port
9
Mode
DESCRIPTION
LED turns on when power is supplied.
Indicates a valid ExtremeUSB link is established between the LEX and REX.
LED turns on when link between LEX and REX is established.
LED is off when there is no link between the LEX and REX. LED is slow blinking
when the unit is attempting to establish a link.
Indicates that the extender system is properly enumerated on the host
computer.
LED blinks when the extender system is in a suspended state.
Indicates data transmission is occurring between the LEX and REX.
LED blinks intermittently with or without a USB device connected.
When the LEX and REX are in suspend mode, the LED is off.
Accepts USB device using Type A connector.
Connects to the AC Power Supply
Accepts RJ45 connector for CAT 5e/6/7 cabling to connect the LEX to the REX.
Reserved for Manufacturer use.
Reserved for Manufacturer use.
Page 6 of 13
