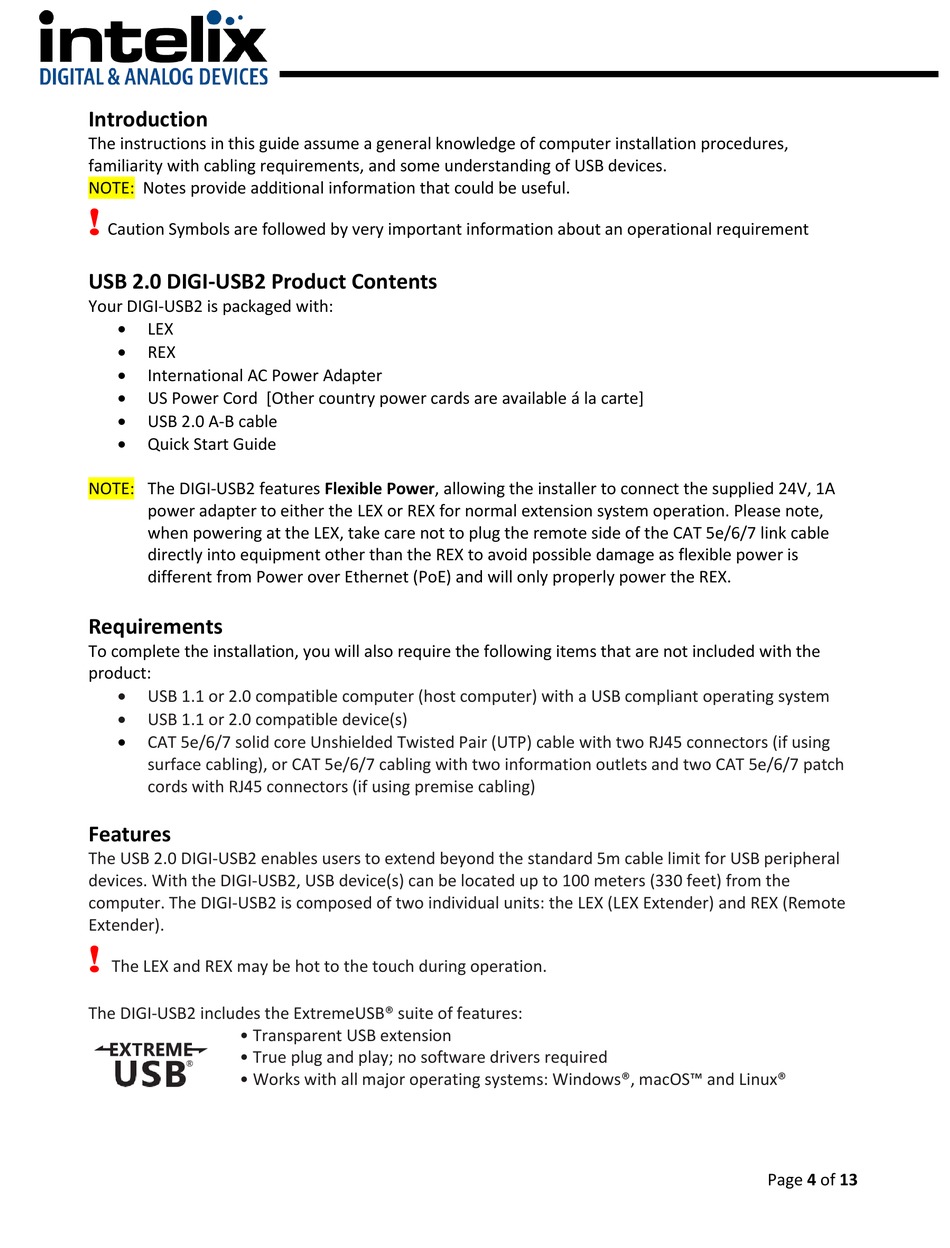

Introduction

The instructions in this guide assume a general knowledge of computer installation procedures,
familiarity with cabling requirements, and some understanding of USB devices.
NOTE: Notes provide additional information that could be useful.
!
Caution Symbols are followed by very important information about an operational requirement
USB 2.0 DIGI-USB2 Product Contents
Your DIGI-USB2 is packaged with:

LEX

REX

International AC Power Adapter

US Power Cord [Other country power cards are available á la carte]

USB 2.0 A-B cable

Quick Start Guide
NOTE: The DIGI-USB2 features Flexible Power, allowing the installer to connect the supplied 24V, 1A
power adapter to either the LEX or REX for normal extension system operation. Please note,
when powering at the LEX, take care not to plug the remote side of the CAT 5e/6/7 link cable
directly into equipment other than the REX to avoid possible damage as flexible power is
different from Power over Ethernet (PoE) and will only properly power the REX.
Requirements
To complete the installation, you will also require the following items that are not included with the
product:

USB 1.1 or 2.0 compatible computer (host computer) with a USB compliant operating system

USB 1.1 or 2.0 compatible device(s)

CAT 5e/6/7 solid core Unshielded Twisted Pair (UTP) cable with two RJ45 connectors (if using
surface cabling), or CAT 5e/6/7 cabling with two information outlets and two CAT 5e/6/7 patch
cords with RJ45 connectors (if using premise cabling)
Features
The USB 2.0 DIGI-USB2 enables users to extend beyond the standard 5m cable limit for USB peripheral
devices. With the DIGI-USB2, USB device(s) can be located up to 100 meters (330 feet) from the
computer. The DIGI-USB2 is composed of two individual units: the LEX (LEX Extender) and REX (Remote
Extender).
!
The LEX and REX may be hot to the touch during operation.
The DIGI-USB2 includes the ExtremeUSB® suite of features:
• Transparent USB extension
• True plug and play; no software drivers required
• Works with all major operating systems: Windows®, macOS™ and Linux®
