DIGI-USB2-4P Installation Guide

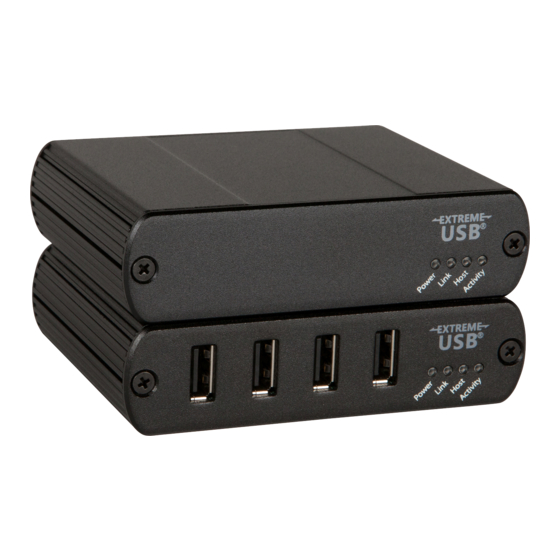

The Intelix DIGI-USB2-4P extends computer USB 1.1 and USB 2.0
signals up to 100m (330 ft) over twisted pair cabling to four remote
devices.
The DIGI-USB2-4P utilizes inexpensive twisted pair cabling and
has a throughput of up to 480Mbps. The DIGI-USB2-4P is perfect
for keyboard and mouse extension, remote data ports, up to 4
USB hubs, security applications and interactive white board
applications.
Important notice:
•
Do not attempt to disassemble or alter the housing. There are no user-serviceable
parts inside the unit. Doing so will void your warranty.
•
To minimize the possibility of equipment damage from electrostatic discharge (ESD),
all source and destination equipment must be powered off during installation.
•
Do not connect the device to a telecommunication outlet wired to unrelated
equipment. Doing so may damage the unit or any connected equipment. Ensure all
connected twisted pair cabling is straight-through (point-to-point).
•
Allow proper ventilation to reduce the risk of thermal failure.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Intelix DIGI-USB2-4P
Summary of Contents for Intelix DIGI-USB2-4P
- Page 1 100m (330 ft) over twisted pair cabling to four remote devices. The DIGI-USB2-4P utilizes inexpensive twisted pair cabling and has a throughput of up to 480Mbps. The DIGI-USB2-4P is perfect for keyboard and mouse extension, remote data ports, up to 4 USB hubs, security applications and interactive white board applications.
- Page 2 Host Side Connections Status LEDs • Power: Solid blue when power is applied • Link: Solid green when link is present between extenders • Host: Solid green when connected to host PC; flashes green when in a suspended state • Activity: Flashes amber when transmitting data;...
- Page 3 Included Accessories • Power supply • USB Type A to USB Type B cable Instructions Verify all components included with the extender set are present before installation. 2. Connect the included USB cable between the computer and the Host device. 3.
- Page 4 Low-speed devices (USB 2.0 & 1.1) - up to 1.5 Mbps USB Hub Support Any single chain can include up to 4 USB hubs plus one DIGI-USB2-4P. USB Host Support xHCI (USB 3.0) at USB 2.0 speed, EHCI (USB 2.0) and OHCI/UHCI (USB 1.1) Maximum USB Devices Supported Up to 15 USB devices or 4 USB hubs with 11 USB devices.
