Assembly Instructions
Please keep for future reference
Oakstyle 110
Version 1 : 25/07/2017
Important -
Please read these instructions fully before starting assembly
ALR3413

Advertisement

loading

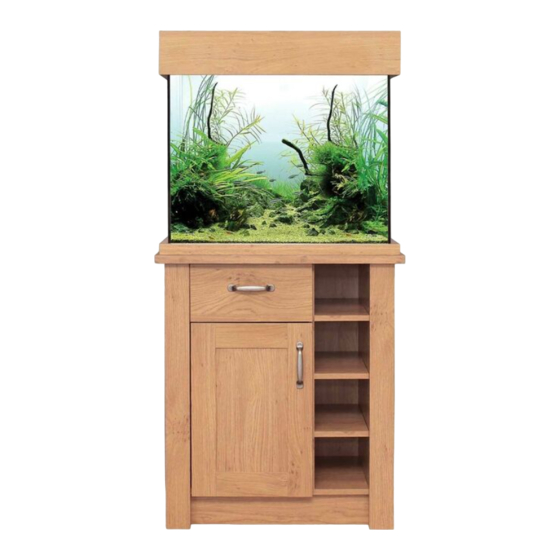

Summary of Contents for Aqua One Oakstyle 110

  • Page 1 Assembly Instructions Please keep for future reference Oakstyle 110 Version 1 : 25/07/2017 Important - Please read these instructions fully before starting assembly ALR3413...
  • Page 2: Care And Maintenance

    Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit is heavy. • Make sure you have enough • We do not Please lift with care. space to layout the parts before recommend the starting.
  • Page 3 Panels Please check you have all the panels listed below 1 Drawer Front 2 Left Drawer 3 Right Drawer 4 Drawer Back (DF-00011548) (W303-124) Side Side (W330-124LH) (W330-124RH) (34.2 x 16.2cm) (30.3 x 12.4cm) (33 x 12.4cm) (33 x 12.4cm) 5 Drawer Base (T314-327) (31.4 x 32.7cm)
  • Page 4 Fittings Please check you have all the fittings listed below Small Locking Cam Knock-in Peg Large Metal Dowel x 18 (F901) (F900) (F171GY) Large Locking Cam Wooden Dowel x 20 (F22) Wedgefix x 22 (F639) (F900) 45mm Screw 40mm Screw 19mm Screw ( (F65) (F910)
  • Page 5 Step 1 Prepare the Drawer Front Screw 2 Metal Dowels into the Drawer Front. Note: Tighten the Metal Dowels up fully against the panels. Stick a Door Buffer into the top right hand corner and bottom right hand corner of the Drawer Front.
  • Page 6 Step 4 Fit the Drawer Base Slide the Drawer Base down the grooves in the Drawer Sides and down into the groove in the Drawer Front. Step 5 Fit the Drawer Back Fit the Drawer Back between the Drawer Sides. Make sure that the Drawer Base fits into the groove in the Drawer...
  • Page 7 Step 8 Prepare the 2 Fascias Left Fascia - holes nearest this side 10mm Check that the holes are in the same place as the diagrams, as one will be the Left Fascia and one will be the Right Fascia. Tap a Wooden Dowel into each of the 2 Fascias.
  • Page 8 Step 10 Fit the Left Fascia to the Left Side Push the Left Side down onto the Left Fascia. Dowel this end Use a screwdriver to tighten the 3 Large Locking Cam Nuts fitted to the Left Side. Note: Turn the Large Locking Cam Nuts as far as they will go - more than 1/2 a turn.
  • Page 9 Step 12 Prepare the Right Side Tap 2 Wooden Dowels into the Right Side. Insert 5 Large Locking Cam Nuts into the Right Side. Push 3 of the Quickfit Dowels as far as they will go into the Right Side. Step 13 Fit the Right Fascia to the Right Side...
  • Page 10 Step 14 Finish preparing the Right Side Screw 4 metal dowels into the Right Side. Step 15 Prepare the Base Tap 4 Wooden Dowels into the Base. Insert 4 Large Locking Cam Nuts into the Base. Finished front edge...
  • Page 11 Step 16 Fit the Base Push the Base onto the Right Side. Use a screwdriver to tighten the 2 Large Locking Cam Nuts fitted to the Base. Finished front edge Step 17 Prepare the Divider Place a Runner on the Divider as shown. Slide back the top of Runner and use the 1st hole from the front to fit...
  • Page 12 Step 18 Fit the Divider Push the Divider onto the Base and fix it using two 40mm screws. Step 19 Prepare the 2 Plinths Tap 2 Wooden Dowels into each of the Plinths. Insert 2 Large Locking Cam Nuts into each of the Plinths.
  • Page 13 Step 21 Fit the Left Side Push the Left Side onto the Base and the Plinths. Use a screwdriver to tighten the 4 Large Locking Cam Nuts fitted to the Base and Plinths. Step 22 Raise the assembly To make it easier to fit the Top Panel, place packaging pieces underneath the Side...
  • Page 14 Step 24 Fit the Top Push the Top onto the assembly. Use a screwdriver to tighten the 6 Large Locking Cam Nuts fitted to the Sides and Divider. Step 25 Prepare the Back Tap 2 Wooden Dowels into the Back. Insert 2 Large Locking Cam Nuts into the Back.
  • Page 15 Step 27 Fit the plastic nails Tap 2 Plastic Nails into the bottom edge of each of the Sides. Tap a Plastic Nail into the centre of the bottom edge of the 2 Plinths and the Back.
  • Page 16 Step 28 This unit must be fixed to a wall using Secure the unit to a the Overbalance Protector Kit provided wall Before fitting the unit to a wall, use a spirit level to check the top of the unit is level, front-to-back and side-to-side in the 3 positions shown.
  • Page 17 Step 29 Fit the Wide Shelf Insert 4 Shelf Studs at the required height. Lower the Wide Shelf down onto the Shelf Studs. Step 30 Fit the 3 Narrow Shelves Insert 4 Shelf Studs for each of the Shelves. Lower the Narrow Shelves down onto the Shelf Studs.
  • Page 18 Step 31 The Runners could have sharp Fit the Drawer edges and we recommend that you position them using a Screwdriver. Slide both the Runners forward and locate the Drawer Sides between them, lining up their holes with the 2nd 'threaded' holes in the Runners.
  • Page 19 Step 33 Fit the Door and its Handle Line up the 2 screws in the top Hinge with the 2 holes at the top of the Left Side and push them When the Hinges have Press the Screws into been pushed in, the holes in the panel tighten up their Screws Now push in the other...
  • Page 20 Step 35 Fit the Door Buffers Stick a Door Buffer onto the top and bottom corner of the Door where they will hit the Divider.
