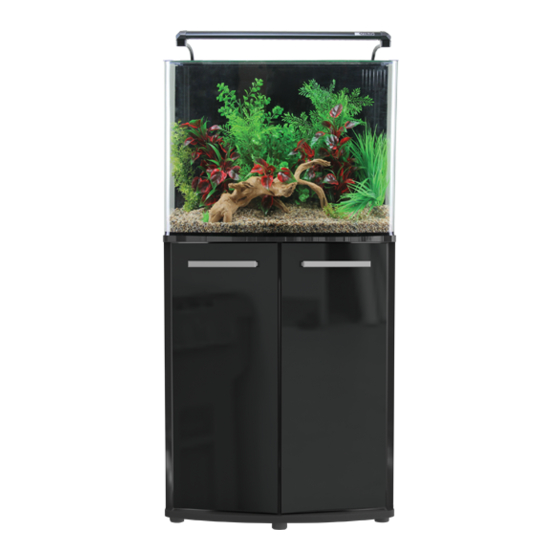

- Page 1 Assembly Instructions Please keep for future reference Aqua Nano Bow 60 Version 1 : 16/10/2017 Important - Please read these instructions fully before starting assembly ALR3437...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit is heavy. • Make sure you have enough • We do not Please lift with care. space to layout the parts before recommend the starting.
- Page 3 Panels Please check you have all the panels listed below 1 Left Side 2 Right Side 3 Divider (DF-00018252) (DF-00018253) (DF-00018254) (69.4 x 28cm) (69.4 x 28cm) (69.4 x 32.8cm) 4 Top 5 Base (DF-00018250) (DF-00018251) (60 x 38cm) (60 x 38cm) 6 Back Panel 7 Left Door 8 Right Door...
- Page 4 Fittings Please check you have all the fittings listed below Large Locking Cam Large Metal Dowel Wooden Dowel x 16 (F901) (F22) (F900) 25mm Screw (F50) 40mm Screw (F910) 25mm Screw (F95) Large 13mm Screw x 12 Small 13mm Screw (F63) (F109) Feet...
- Page 5 Step 1 10mm Prepare the Left Side Tap 4 Wooden Dowels into the Left Side. Insert 2 Large Locking Finished Cam Nuts into the Left Front Edge Side. Fit 2 Hinge Plates onto the Left Side, making sure that the slot is facing towards the finished front edge.
- Page 6 Step 4 Prepare the Back Tap 4 Wooden Dowels into the Back. Insert 2 Large Locking Cam Nuts into the Back. Step 5 Fit the Back Push the Back onto the Base and secure it using two 40mm Screws. Step 8 Step 6 Prepare the Divider Finished...
- Page 7 Finished Step 7 Front Edge Fit the divider Push the Divider onto the Base and fit it using 2 40mm screws. Step 8 Prepare the Top Screw 8 Metal Dowels into the Top. Fit the 2 Magnetic Catches to the shallow mark-holes in the Top using 4 of the Large 13mm Screws.
- Page 8 Step 9 Fit the Top Push the Top onto the assembly. Use a screwdriver to tighten the 8 Large Locking Cam Nuts fitted to the Sides, Divider and Back. Step 8 Step 10 Fit the 6 Feet Screw the Feet onto the mark-holes in the Base using the six 25mm Screws.
- Page 9 Step 11 This unit must be fixed to a wall using the Secure the unit to a 2 Overbalance Protector Kits provided wall Before fitting the unit to a wall, use a spirit level to check the top of the unit is level, front-to-back and side-to-side in the 3 positions shown.
- Page 10 Step 12 Prepare the 2 Doors Large 13mm Screw Small 13mm Screw Push fit 2 Hinges into each of the 2 Doors. Secure each hinge with two Large 13mm Screws fitted using the shallow mark holes. Fit a Magnetic Plate to each Door with a Small 13mm Screw using the shallow mark hole.
- Page 11 Step 13 Fit the Doors and Handles The easiest way to attach each Door is to fit the top Hinge first, then align and fit the other Hinge. Push the Hinge onto the front part of the Hinge Plate. The recess at the bottom of Screw B goes into the slot in the Hinge Plate.
- Page 12 Step 14 Adjust the doors if needed Before adjusting the doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the hinges,...
