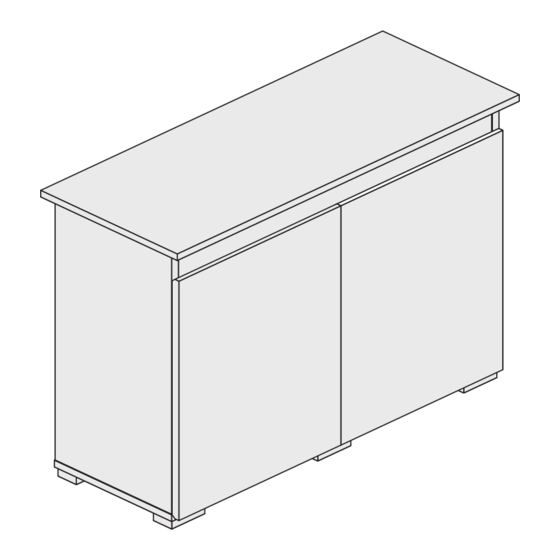

Assembly Instructions
Please keep for future reference
Styleline 93
Version 1 : 31/07/2017
Important -
Please read these instructions fully before starting assembly
ALR3416

Advertisement

loading
Need help?

Need help?

Do you have a question about the Styleline 93 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aqua One Styleline 93

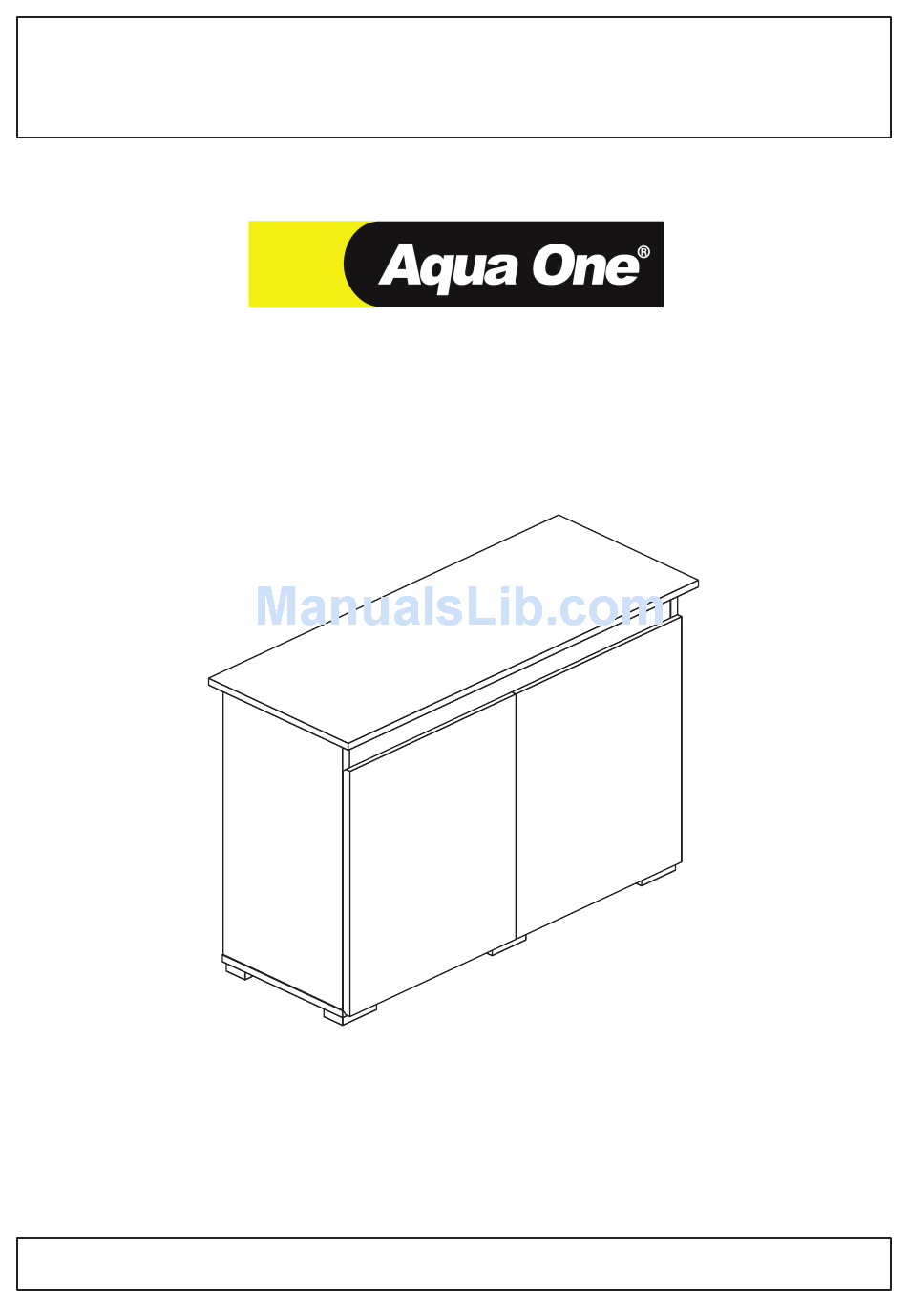

  • Page 1 Assembly Instructions Please keep for future reference Styleline 93 Version 1 : 31/07/2017 Important - Please read these instructions fully before starting assembly ALR3416...
  • Page 2: Care And Maintenance

    Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit is heavy. • Make sure you have enough • We do not Please lift with care. space to layout the parts before recommend the starting.
  • Page 3 Panels Please check you have all the panels listed below 1 Left Side 2 Right Side 3 Divider (DF-00012353) (DF-00012354) (DF-00012383) (71.8 x 31.8cm) (71.8 x 31.8cm) (71.8 x 29.8cm) 4 Top 5 Base (DF-00012352) (DF-00012355) (93.2 x 37.2cm) (89.6 x 32cm) 6 Front Rail (DF-00012569) (85.6 x 9.2cm)
  • Page 4 Fittings Please check you have all the fittings listed below Large Locking Cam Large Metal Dowel x 10 Wooden Dowel x 16 (F901) (F22) x 10 (F900) 45mm Screw 40mm Screw (F65) (F910) 38mm Screw x 10 (F81) Hinge Plate 13mm Screw (F63) Hinge (...
  • Page 5 Step 1 10mm Prepare the Left Side Tap 4 Wooden Dowels into the Left Side. Insert 2 Large Locking Finished Cam Nuts into the Left Front Edge Side. Screw a metal dowel into the Left Side. Fit 2 hinge plates onto the Left Side, making sure that the slot is facing towards the...
  • Page 6 Step 4 Fit the Sides to the Front Rail Push the Sides onto the Front Rail. Use a screwdriver to tighten the 2 Large Locking Cam Nuts Finished fitted to the Front Rail. Front Edge Finished Front Edge Note: Turn the Large Locking Cam Nuts as far as they will go - more than 1/2 a turn.
  • Page 7 Step 7 Fit the Divider Push the Divider onto the Base and fix it using two 40mm screws. Finished Front Edge Step 8 Raise the assembly To make it easier to fit the Top Panel, place packaging pieces underneath the Side Panels to raise the assembly.
  • Page 8 Step 10 Fit the Top Push the Top onto the assembly. Use a screwdriver to tighten the 6 Large Locking Cam Nuts fitted to the Sides and Divider. Step 11 Prepare the Back Tap 2 Wooden Dowels into the Back. Insert 2 Large Locking Cam Nuts into the Back.
  • Page 9 Step 13 Fit the Feet Fit the Feet to the Base using the 38mm Screws. Step 14 Prepare the 2 Doors Push fit 2 Hinges into each of the Doors. Secure each Hinge with two 13mm screws into the shallow mark holes.
  • Page 10 Step 15 This unit must be fixed to a wall using the Secure the unit to a 2 Overbalance Protector Kits provided wall Before fitting the unit to a wall, use a spirit level to check the top of the unit is level, front-to-back and side-to-side in the 3 positions shown.
  • Page 11 Step 16 Fit the Doors The easiest way to attach each Door is to fit the top Hinge first, then align and fit the other Hinge. Push the Hinge onto the front part of the Hinge Plate. The recess at the bottom of Screw B goes into the slot in the Hinge Plate.
  • Page 12 Step 17 Adjust the Doors if needed Before adjusting the Doors, use a spirit level to check the Base (or Top) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the...
