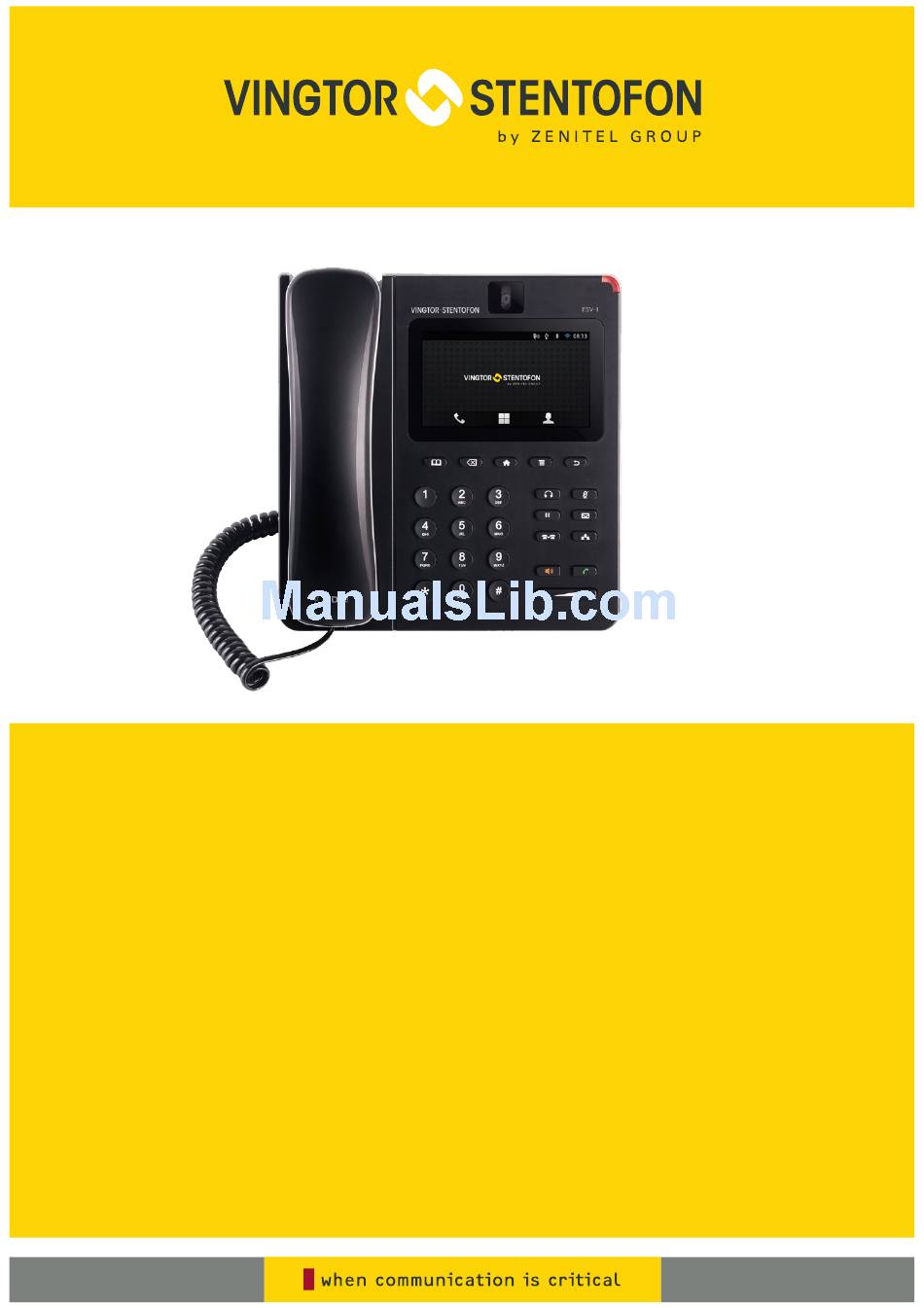

- Page 1 QUICK INSTALLATION & CONFIGURATION GUIDE ITSV-1 IP Touch Station with Video Technical Manual 1490001010 ...
- Page 2 The ITSV-1 is a product developed for Zenitel Norway AS and is primarily used as part of a Zenitel Norway AS IP Intercom solution. The ITSV-1 is not pre-configured to support or carry emergency calls to any type of hospital, law enforcement agency, medical care unit (“Emergency Service(s)”) or any other kind of...
-
Page 3: Package Contents

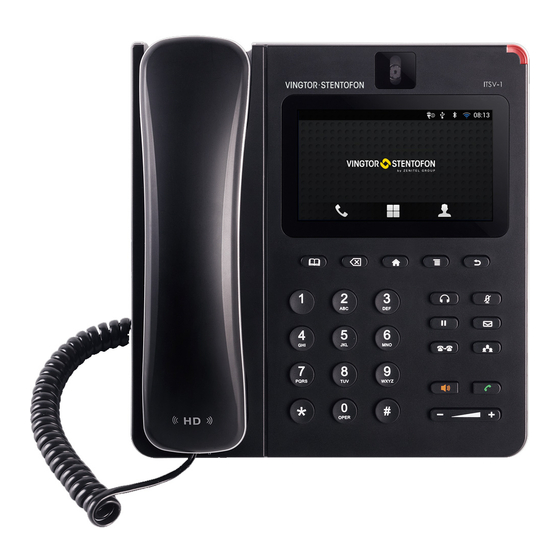

PRECAUTIONS WARNING: Please DO NOT power cycle the ITSV-1 during system boot-up or firmware upgrade. You may corrupt firmware images and cause the unit to malfunction. PACKAGE CONTENTS Vingtor-Stentofon logo - as original artwork. Short Name ITSV-1 - font Century Gothic... - Page 4 System 4.2, a 4.3” (480x272) capacitive touch screen, a tiltable 1 megapixel CMOS camera, dual Gigabit network ports, integrated Wi-Fi, PoE and Bluetooth. The ITSV-1 delivers superior HD audio & video, leading edge SIP intercom features and integration with the Pulse and AlphaCom IP Intercom Platforms, developed by Zenitel Norway AS.
- Page 5 Installing the Phone with Phone Stand: Attach the phone stand to the back of the phone where there are slots for mounting. The upper and bottom slots enable mounting at two different angles. CONNECTING THE PHONE 1. Connect the handset and main phone case with the phone cord. 2.
- Page 6 Account Activation to ON and selecting OK. 5. Follow the LCD menu options to configure other settings on the phone. For example, to configure static IP on the ITSV-1, set up static IP address via LCD menu Settings > Wireless & Network > Ethernet Settings.
- Page 7 3. Enter the phone’s IP address in your PC’s browser. 4. Log in by entering the default username: admin and password: alphaadmin 5. To register the account on the ITSV-1, go to General Settings > Account 1/2/3/4/5/6 to configure Account Name, SIP Server (AlphaCom or Pulse), SIP User ID (Extension Number), SIP Authentication ID (if required) and SIP Authentication Password (if required).
- Page 8 The following sections describes how the ITSV-1 is configured to work together with the Turbine Video Intercom TCIV-2/TCIV-3/TCIV-6. ALPHACOM CONFIGURATION • Log into the ITSV-1 by entering default username: admin and password: alphaadmin AlphaCom ITSV-1 Account Setup: ● Select Account > Account 1 > General Settings ●...
- Page 9 AlphaCom ITSV-1 Video Configuration: The video is streamed in MJPEG format directly from the TCIV camera to the ITSV-1. The TCIV camera must have a static IP address. Select Account 1 > Call Settings ● ● Click the Yes box for Start Video Automatically ●...
- Page 10 SIP User ID: Directory Number of the ITSV-1 phone SIP Authentication ID: Same as SIP User ID Pulse ITSV-1 Video Configuration: The video is streamed directly from the TCIV camera to the ITSV-1. The TCIV camera must have a static IP address. ●...
- Page 11 The ITSV-1 will display the text of the Group Call as entered under Label. If the ITSV-1 is busy in a regular call when a Group Call is made, it will by default not play the Group Call audio. If Paging Barge is set to value 2 or higher, the current call will be placed On Hold, and the Group Call audio will be broadcast.
