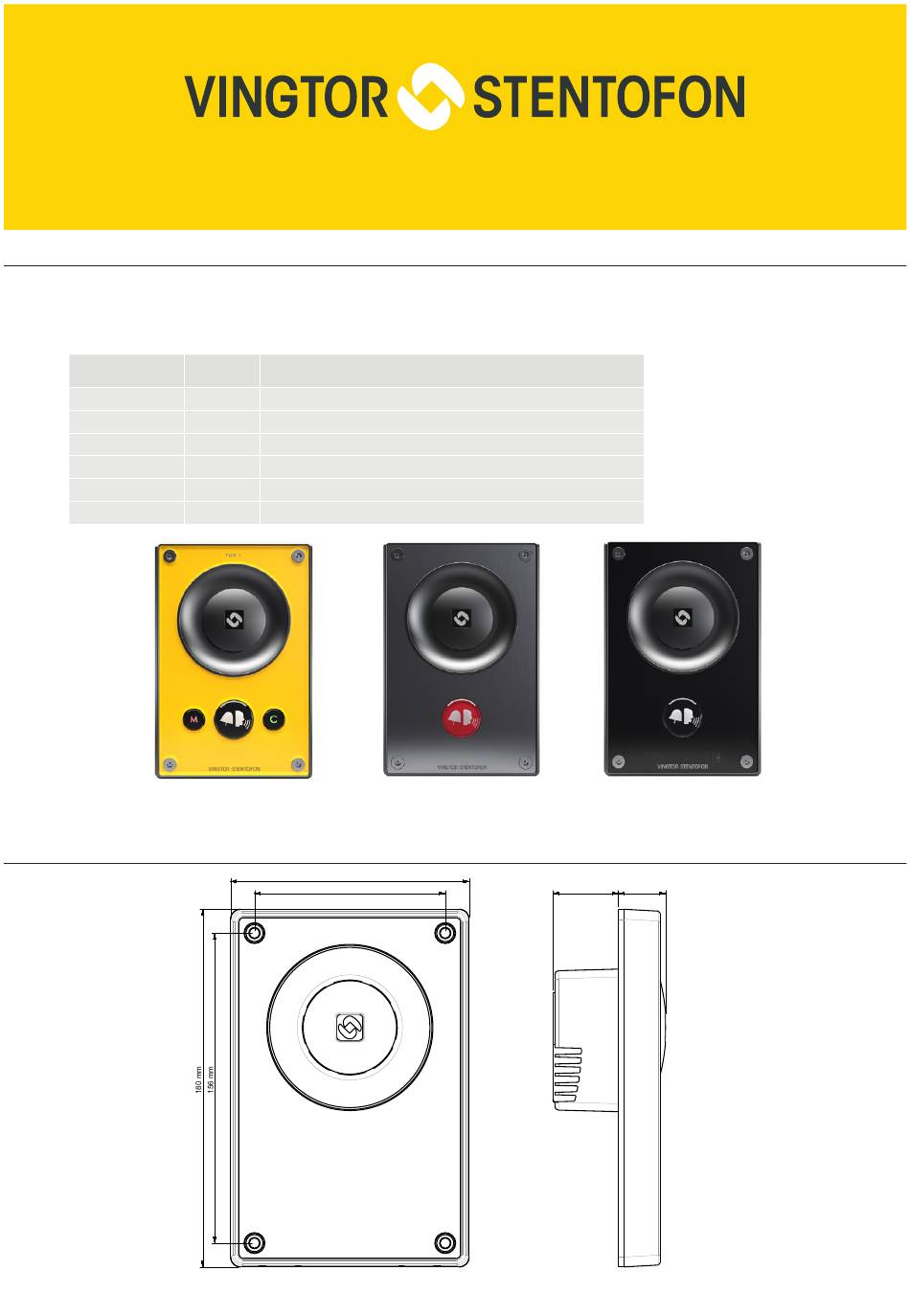

TCAS Turbine Compact Analog
1

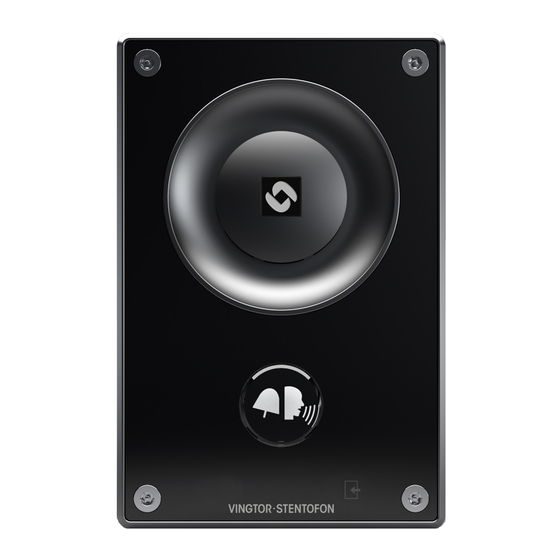

Turbine Compact Analog Stations
This document describes the dimensions, mounting procedure, and connections of the Turbine Compact
Analog Stations. Zenitel takes no responsibility for damages caused by improper or inadequate mounting.
The Turbine Compact Analog product range comprises the following stations & accessories:
Item Number
1008114010
1008114020
1008114030
1008140010
1008140030
1008140050
1.1
TCAS Compact Station Dimensions
Mounting Manual
Type
Item Name
TCAS-1
Turbine Compact Analog - thermoplastic front plate
TCAS-2
Turbine Compact Analog - stainless steel front plate
TCAS-3
Turbine Compact Analog - thermoplastic front plate
TA-1
Turbine On-Wall Back Box
TA-3
Turbine Flush Mount 2-Gang Back Box
TA-5
Turbine Bracket for Flush Mount Back Box
TCAS-1
120 mm
96 mm
TCAS-2
33 mm
TCAS-3
23.8 mm
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vingtor Stentofon Turbine Compact Analog TCAS Series
Summary of Contents for Vingtor Stentofon Turbine Compact Analog TCAS Series
- Page 1 TCAS Turbine Compact Analog Mounting Manual Turbine Compact Analog Stations This document describes the dimensions, mounting procedure, and connections of the Turbine Compact Analog Stations. Zenitel takes no responsibility for damages caused by improper or inadequate mounting. The Turbine Compact Analog product range comprises the following stations & accessories: Item Number Type Item Name...
- Page 2 On-Wall Surface Mounting On-Wall Surface Mount Back Box - TA-1 L IP-66 rating is only valid when Mounting Hole Mounting Hole TA-1 Back Box is used 25 mm 1” Mounting holes are to be drilled as shown. Max. recommended screw diameter: ISO M6 or ANSI 1/4".
- Page 3 Flush Mounting Flush Mount 2-Gang Back Box - TA-3 1.81? 0.98? 46 mm 25 mm 64 mm / 2.52? 96 mm / 3.78? 23 mm 0.90? SIDE L It is recommended to utilize back boxes with weep holes at the bottom Flush Mount Bracket - TA-5 L The TA-5 Bracket is mandatory for flush mounting.
- Page 4 Flush Mounting Procedure L The Gasket MUST be mounted to seal the station! L Ensure the station is mounted verti- cally with the microphone aperture facing down. Turbine L Ensure there is enough clearance Station under the station so that the micro- phone aperture is NOT smothered.
