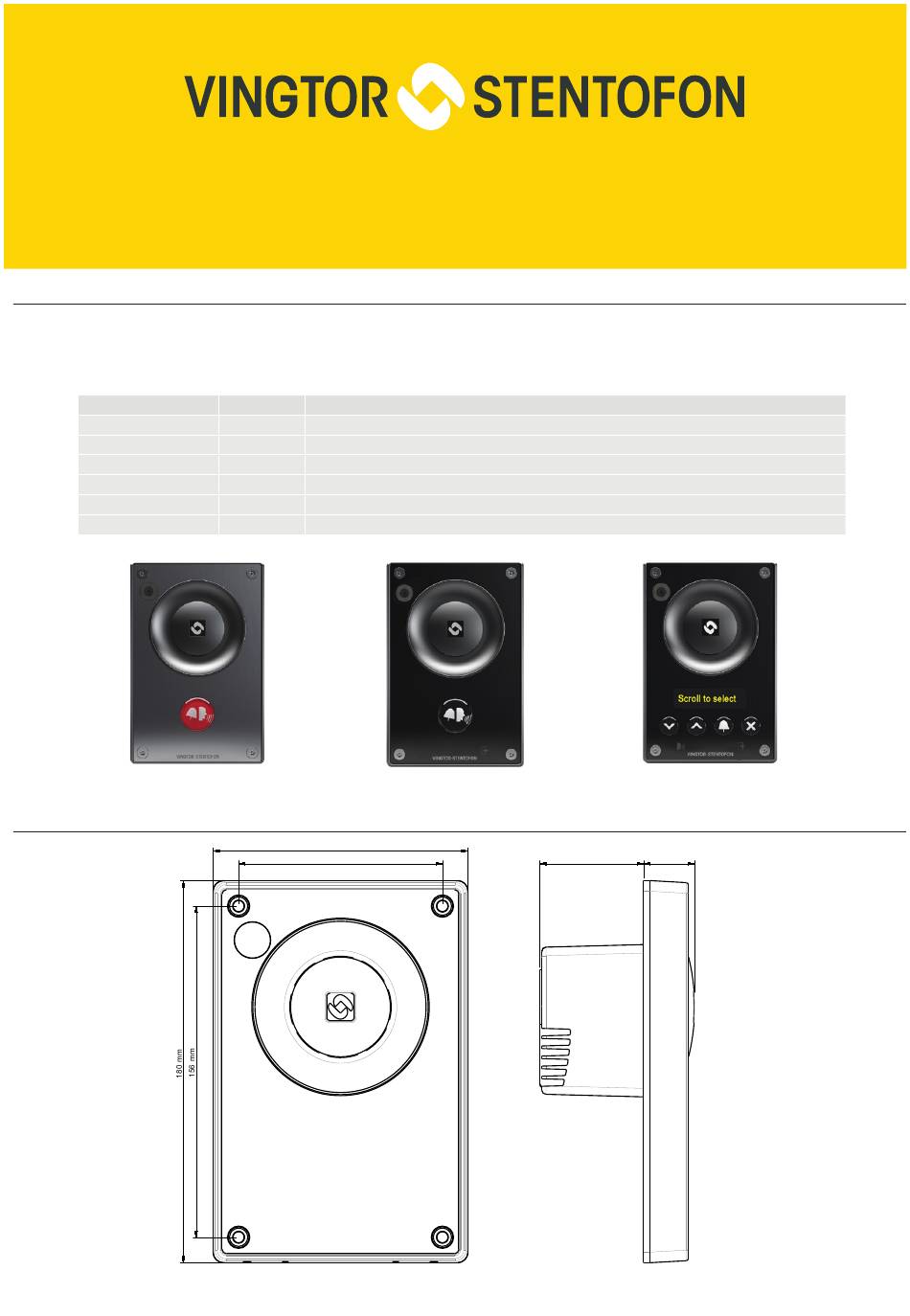

Turbine SIP Video Stations
This document specifies the dimensions, mounting procedure, and camera field of view of the Turbine SIP
Video Stations. Zenitel takes no responsibility for damages caused by improper or inadequate mounting.
The Turbine Video series comprises the following stations & accessories:
ITEM NUMBER
1008215020
1008215030
1008215060
1008140010
1008140020
1008140050
TCIV-2SIP
1.1
Station Dimensions
Turbine SIP Video Station
Mounting Manual
TYPE
ITEM NAME
TCIV-2SIP
Turbine SIP Video - stainless steel front plate
TCIV-3SIP
Turbine SIP Video - thermoplastic front plate
TCIV-6SIP
Turbine SIP Video - thermoplastic front plate with PMOLED display
TA-1
Turbine On-Wall Back Box
TA-2
Turbine Flush Mount 2-Gang Double-Depth Back Box
TA-5
Turbine Bracket for Flush Mount Back Box
120 mm
96 mm
TCIV-3SIP
49 mm
TCIV-6SIP
23.8 mm
Advertisement
Related Manuals for Vingtor Stentofon TCIV-2SIP
Summary of Contents for Vingtor Stentofon TCIV-2SIP
- Page 1 Video Stations. Zenitel takes no responsibility for damages caused by improper or inadequate mounting. The Turbine Video series comprises the following stations & accessories: ITEM NUMBER TYPE ITEM NAME 1008215020 TCIV-2SIP Turbine SIP Video - stainless steel front plate 1008215030 TCIV-3SIP Turbine SIP Video - thermoplastic front plate 1008215060...
- Page 2 On-Wall Surface Mounting On-Wall Surface Mount Backbox - TA-1 Mounting Hole Mounting Hole 25 mm 1” Mounting holes are to be drilled as shown. Max. recommended screw diameter: ISO M6 or ANSI 1/4". Screw length must be greater than 25 mm or 1". A4 stainless steel socket head screws/bolts are recommended.
-
Page 3: Flush Mounting
Flush Mounting Flush Mount 2-Gang Double-Depth Backbox - TA-2 1.81? 0.98? 46 mm 25 mm 89 mm / 3.50? 96 mm / 3.78? 23 mm 0.90? SIDE L It is recommended to utilize backboxes with weep holes at the bottom. Flush Mount Bracket - TA-5 L The TA-5 Bracket is mandatory for flush mounting. - Page 4 Flush Mounting Procedure L The Gasket MUST be mounted to seal the station! L Ensure the station is mounted vertically with the microphone aperture facing down. Camera Turbine Lens L Ensure there is enough clearance under Station the station so that the microphone aperture is NOT smothered.
