1
Turbine SIP Stations
This document describes the dimensions, mounting procedure, and connections of the Turbine SIP Stations.
Zenitel takes no responsibility for damages caused by improper or inadequate mounting.
The Turbine SIP product range comprises the following stations & accessories:
Item Number
1008211010
1008211020
1008211030
1008211040
1008211050
1008211060
1008140010
1008140020
1008140050
TCIS-1SIP
1.1

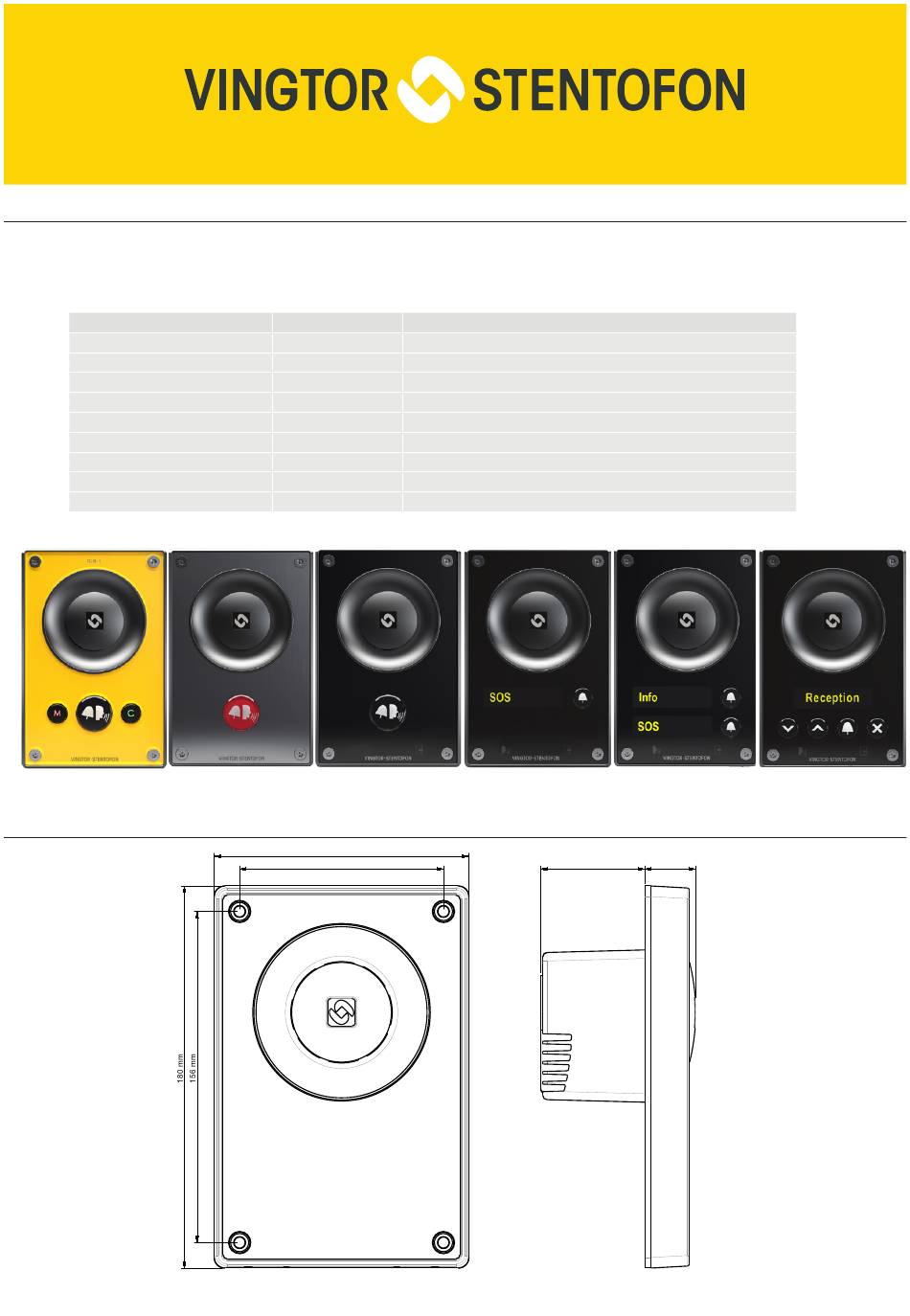

Station Dimensions
Turbine SIP Station Mounting Manual
Type
TCIS-1SIP
TCIS-2SIP
TCIS-3SIP
TCIS-4SIP
TCIS-5SIP
TCIS-6SIP
TA-1
TA-2
TA-5
TCIS-2SIP
TCIS-3SIP
120 mm
96 mm
Item Name
Turbine SIP Station
Turbine SIP Station
Turbine SIP Station
Turbine SIP Station
Turbine SIP Station
Turbine SIP Station
Turbine On-Wall Back Box
Turbine Flush Mount 2-Gang Double-Depth Back Box
Turbine Bracket for Flush Mount Back Box
TCIS-4SIP
49 mm
TCIS-5SIP
TCIS-6SIP
23.8 mm
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vingtor Stentofon TCIS-1SIP
Summary of Contents for Vingtor Stentofon TCIS-1SIP
- Page 1 Zenitel takes no responsibility for damages caused by improper or inadequate mounting. The Turbine SIP product range comprises the following stations & accessories: Item Number Type Item Name 1008211010 TCIS-1SIP Turbine SIP Station 1008211020 TCIS-2SIP Turbine SIP Station 1008211030 TCIS-3SIP...
- Page 2 On-Wall Surface Mounting On-Wall Surface Mount Back Box - TA-1 Mounting Hole Mounting Hole 25 mm 1” Mounting holes are to be drilled as shown. Max. recommended screw diameter: ISO M6 or ANSI 1/4". Screw length must be greater than 25 mm or 1". A4 stainless steel socket head screws/bolts are recommended.
- Page 3 Flush Mounting Flush Mount 2-Gang Double-Depth Back Box - TA-2 1.81? 0.98? 46 mm 25 mm 89 mm / 3.50? 96 mm / 3.78? 23 mm 0.90? SIDE L It is recommended to utilize back boxes with weep holes at the bottom. Flush Mount Bracket - TA-5 L The TA-5 Bracket is mandatory for flush mounting.
- Page 4 Flush Mounting Procedure L The Gasket MUST be mounted to seal the station! L Ensure the station is mounted verti- cally with the microphone aperture facing down. Turbine Station L Ensure there is enough clearance under the station so that the micro- phone aperture is NOT smothered.
