Turbine Mini SIP Station

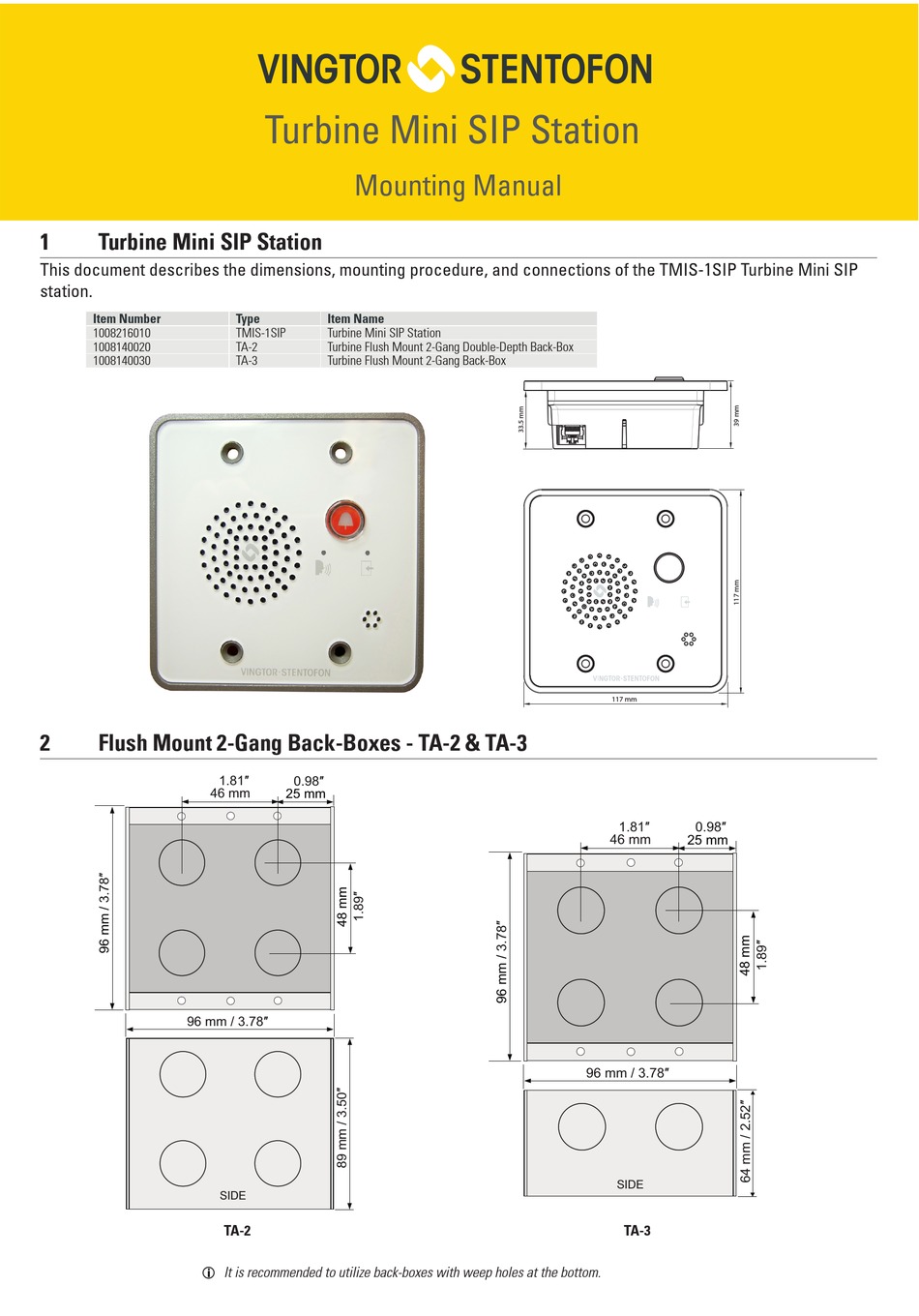

This document describes the dimensions, mounting procedure, and connections of the TMIS-1SIP Turbine Mini SIP
station.
Item Number
1008216010
1008140020
1008140030
2
Flush Mount 2-Gang Back-Boxes - TA-2 & TA-3
46 mm
96 mm / 3.78?
23 mm
0.90?
L It is recommended to utilize back-boxes with weep holes at the bottom.
Turbine Mini SIP Station
Mounting Manual
Type
Item Name
TMIS-1SIP
Turbine Mini SIP Station
TA-2
Turbine Flush Mount 2-Gang Double-Depth Back-Box
TA-3
Turbine Flush Mount 2-Gang Back-Box
1.81?
0.98?
25 mm
64 mm / 2.52?
SIDE
TA-2
117 mm
1.81?
46 mm
96 mm / 3.78?
23 mm
0.90?
SIDE
0.98?
25 mm
TA-3
ww
+24
COM
NO
NC
10
+5
Prod
Seria
1
2
3
4
5
6
Desig
+
Zenit
-
Asse
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vingtor Stentofon Turbine Mini SIP Station
Summary of Contents for Vingtor Stentofon Turbine Mini SIP Station
- Page 1 Turbine Mini SIP Station Mounting Manual Turbine Mini SIP Station This document describes the dimensions, mounting procedure, and connections of the TMIS-1SIP Turbine Mini SIP station. Item Number Type Item Name 1008216010 TMIS-1SIP Turbine Mini SIP Station 1008140020 TA-2 Turbine Flush Mount 2-Gang Double-Depth Back-Box...
- Page 2 Flush Mounting Procedure Flush Mount 2-Gang Back-Box TMIS-1SIP Station #6-32 UNC Screws #6-32 UNC Screws 1. Mount the Back-Box into the wall 2. Fasten the Station to the Back-Box with four #6-32 UNC countersunk-head screws Connections The TMIS-1SIP station has a RJ-45 PoE/LAN port, and 6-pin & 10-pin external connectors. Ethernet / 10/100 Mbps Ethernet RJ-45 port for LAN (uplink) connection.
