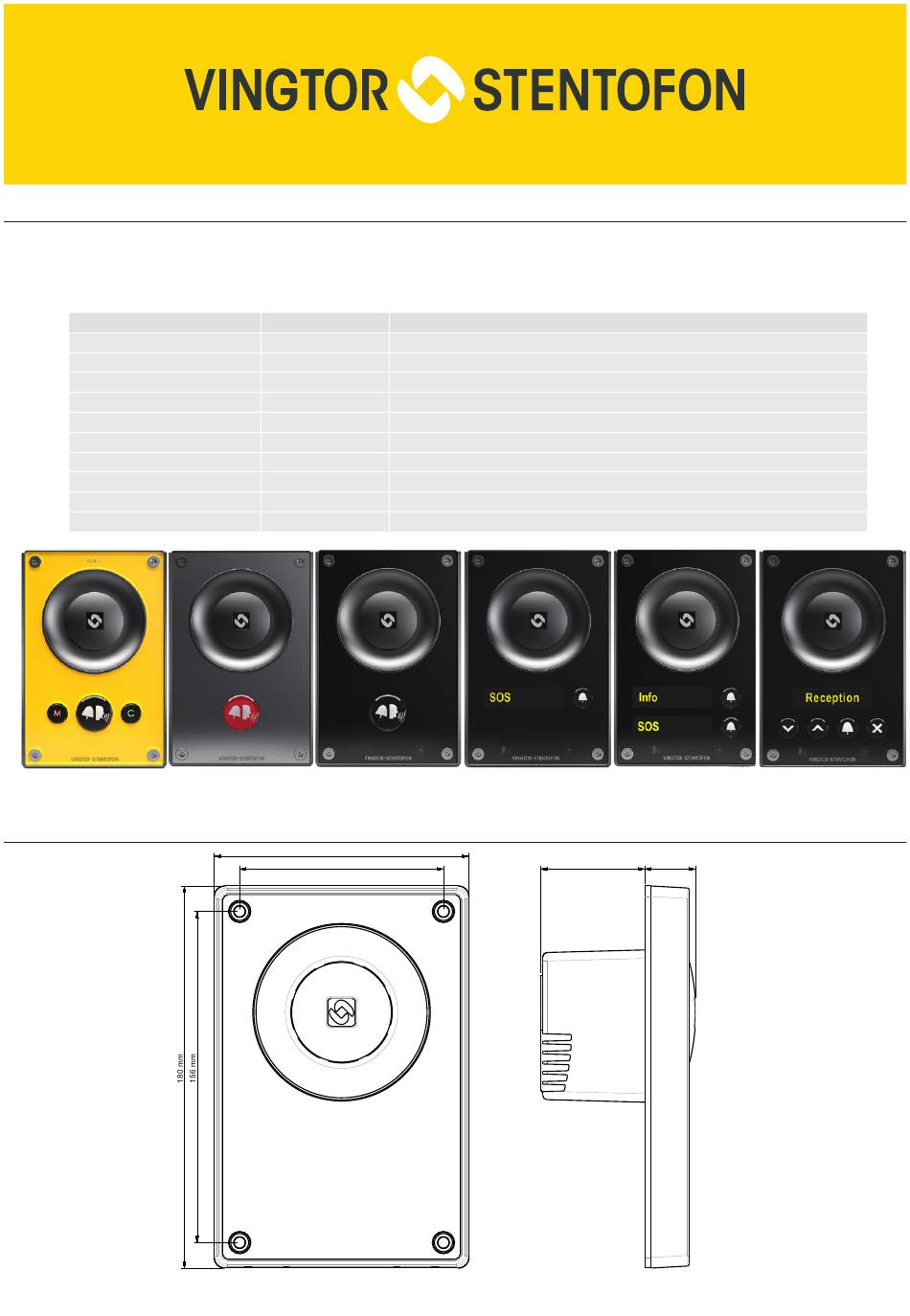

1
Turbine Compact IP Stations
This document describes the dimensions, mounting procedure, and connections of the Turbine Compact IP
Stations. Zenitel takes no responsibility for damages caused by improper or inadequate mounting.
The Turbine Compact IP product range comprises the following stations & accessories:
Item Number
1008111010
1008111020
1008111030
1008111040
1008111050/1008111901
1008111060
1008113020
1008140010
1008140020
1008140050

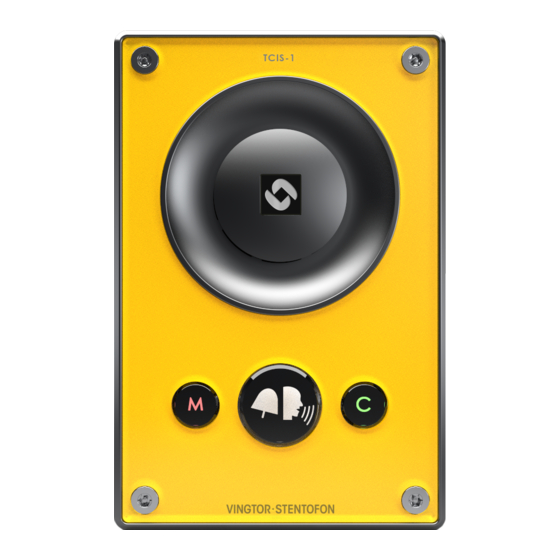

TCIS-1
1.1
TCIS Compact Station Dimensions
Turbine Compact IP Mounting Manual
Type
TCIS-1
TCIS-2
TCIS-3
TCIS-4
TCIS-5/TCIS-C1
TCIS-6
TCIA-2
TA-1
TA-2
TA-5
TCIS-2/TCIA-2
120 mm
96 mm
Item Name
Turbine Compact IP - thermoplastic front plate
Turbine Compact IP - stainless steel front plate
Turbine Compact IP - thermoplastic front plate
Turbine Compact IP - thermoplastic front plate with PMOLED display
Turbine Compact IP - thermoplastic front plate with PMOLED display
Turbine Compact IP - thermoplastic front plate with PMOLED display
Turbine Compact Analog over IP Intercom
Turbine On-Wall Back Box
Turbine Flush Mount 2-Gang Double-Depth Back Box
Turbine Bracket for Flush Mount Back Box
TCIS-3
TCIS-4
TCIS-5/TCIS-C1
49 mm
23.8 mm
TCIS-6
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vingtor Stentofon TCIS-1
Summary of Contents for Vingtor Stentofon TCIS-1
- Page 1 Stations. Zenitel takes no responsibility for damages caused by improper or inadequate mounting. The Turbine Compact IP product range comprises the following stations & accessories: Item Number Type Item Name 1008111010 TCIS-1 Turbine Compact IP - thermoplastic front plate 1008111020 TCIS-2 Turbine Compact IP - stainless steel front plate 1008111030...
- Page 2 On-Wall Surface Mounting On-Wall Surface Mount Back Box - TA-1 L IP-66 rating is only valid when Mounting Hole Mounting Hole TA-1 Back Box is used 25 mm 1” Mounting holes are to be drilled as shown. Max. recommended screw diameter: ISO M6 or ANSI 1/4".
- Page 3 Flush Mounting Flush Mount 2-Gang Double-Depth Back Box - TA-2 1.81? 0.98? 46 mm 25 mm 89 mm / 3.50? 96 mm / 3.78? 23 mm 0.90? SIDE L It is recommended to utilize back boxes with weep holes at the bottom. Flush Mount Bracket - TA-5 L The TA-5 Bracket is mandatory for flush mounting.
- Page 4 Flush Mounting Procedure L The Gasket MUST be mounted to seal the station! L Ensure the station is mounted verti- cally with the microphone aperture facing down. Turbine Station L Ensure there is enough clearance under the station so that the micro- phone aperture is NOT smothered.
