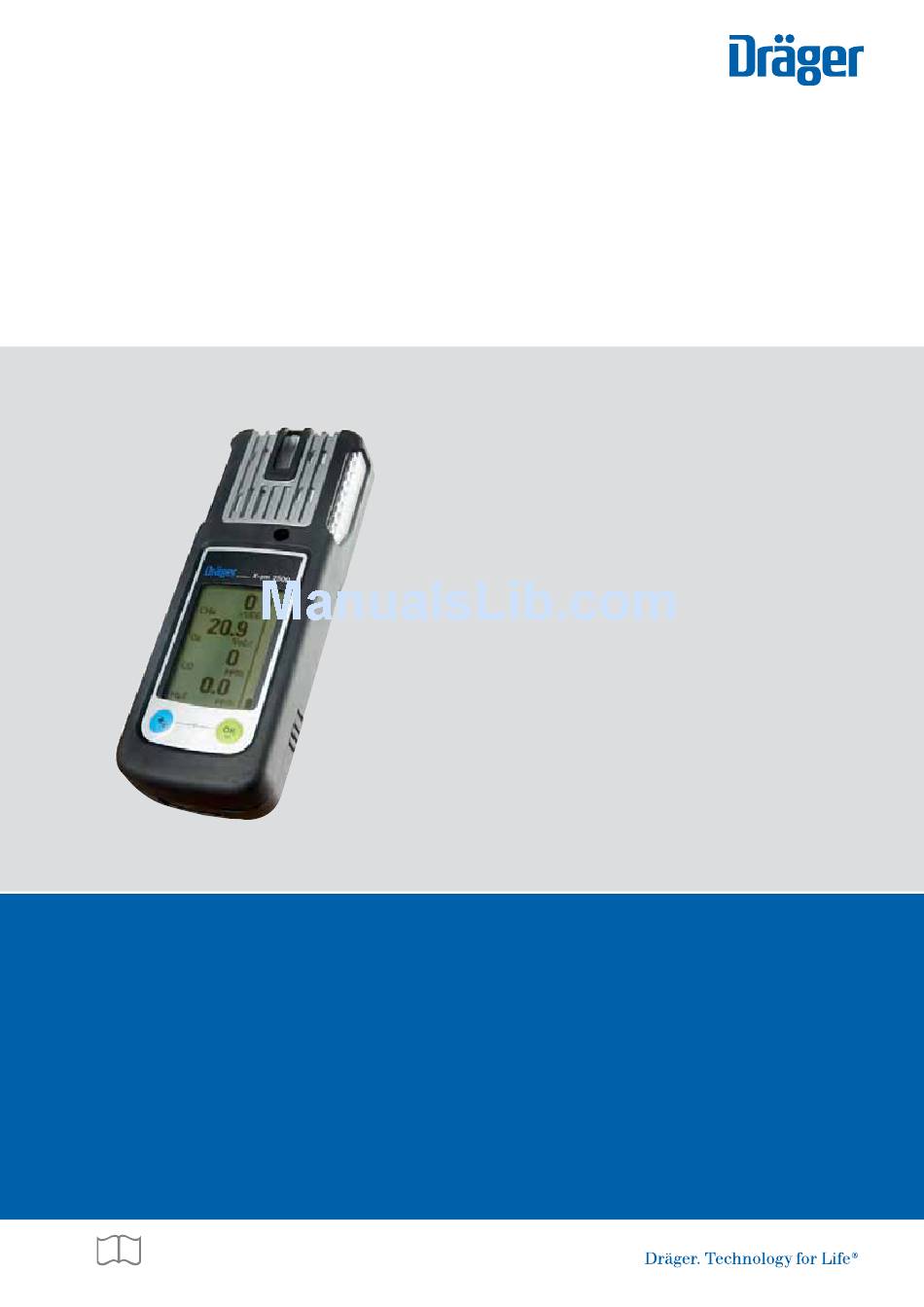

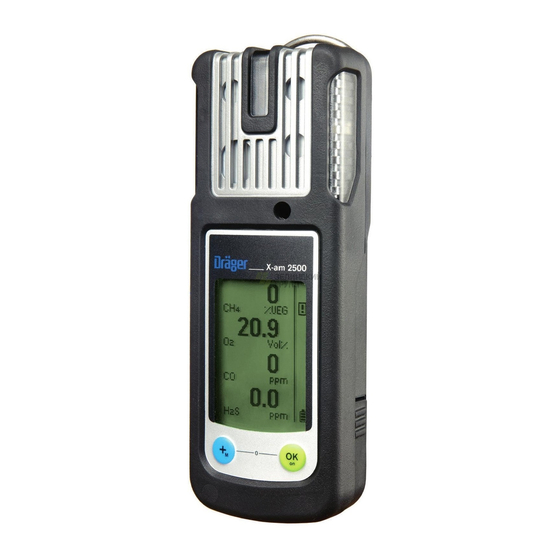

- Page 1 Dräger X-am 2500 (MQG 0011) Technical Manual...
- Page 3 11.1 X-am 2500 ....... 28 Preparations for use ......8 11.2...
-
Page 4: For Your Safety
Indicates a potentially hazardous situation which, if not avoided, could result in physical injury, or damage to the product or environment. It may also be used to alert against unsafe practices. NOTICE Indicates additional information on how to use the product. Dräger X-am 2500... - Page 5 Function for password input is active, see section 4.4 on page 16 Fastening clip Nameplate Battery / rechargeable battery 100 % full Charging contacts Battery / rechargeable battery 2/3 full Power pack Battery / rechargeable battery 1/3 full Serial no. Battery / rechargeable battery empty Dräger X-am 2500...
- Page 6 K = 2017, L = 2018, etc. Example: Serial number AREH-0054, the third letter is E, so the Not subject to BVS10 ATEX E 080X and PFG 10 G 001X year of manufacture is 2013. performance approval. Dräger X-am 2500...
- Page 7 0 to +20 % of the actual value. Correct the accuracy via adjustment if necessary. Only the functions of the part of the equipment used to measure flammable gases are measured as part of the CSA approval. Dräger X-am 2500...
- Page 8 Always connect or disconnect the charging modules individually and not in groups in order to prevent the charging station from becoming damaged. During transportation, the power pack and the charging modules should also always be handled individually and without inserted instruments. Dräger X-am 2500...
-
Page 9: Replacing The Batteries / Rechargeable Batteries 9
2. Press the [OK] key to cancel the display of the activation sequence. 1) Not part of the measurement performance tests BVS10 ATEX E 080X and PFG 10 G 001X. Only when activated in the instrument configuration. Delivery status: not activated. Dräger X-am 2500... -
Page 10: Switching Off The Instrument
CatEx sensor is not possible. In an oxygen enriched atmosphere (>22 Vol.-% O the electrical operational safety cannot be guaranteed; switch off instrument or leave work station. 3. Check that the gas inlet opening on the instrument is not covered. Dräger X-am 2500... -
Page 11: Configuration
1) Different settings can be selected to meet customer requirements on delivery. The current setting can be checked and changed with the Dräger CC Vision software. A version of the CC-Vision software that can be used for Dräger X-am 2500 is available for download from the product page for the X-am 2500 at the following web address: www.draeger.com 2) With O , A1 is the lower alarm threshold: an alarm is triggered if the value is too low. -
Page 12: Standard Instrument Configuration
Dräger CC Vision software. A version of the CC-Vision software that can be used for Dräger X-am 2500 is available for download from the product page for the X-am 2500 at the following web address: www.draeger.com Changing the configuration: see “Replacing the sensors” on page 21. -
Page 13: Running The Bump Test
If gas concentration exceeds the alarm thresholds A 1 or 00933366_en.eps A 2 the corresponding alarm will occur. Upon application of the Dräger mixed gas (order no. 68 11 130) the displays should be within this range. Dräger X-am 2500... -
Page 14: Bump Test Station
Excess concentrations of flammable materials can lead to Composition of test gas (mixed gas) – standard on delivery: a lack of oxygen. 50 ppm CO, 15 ppm H S, 2.5 vol. % CH , 18 vol. % O Dräger X-am 2500... -
Page 15: Identifying Alarms
« on the right side of the display: In the event of an impact load when using a CatEx sensor in the Dräger X-am 2500 that causes the fresh Acknowledging the pre-alarm: air display to deviate from zero, the zero point and Press the key. -
Page 16: Menu Functions
PC software Dräger CCVision. On delivery, only the fresh air calibration is activated in the Quick Menu. The PC software Dräger CC Vision can be used Only when activated in the instrument configuration. Delivery status: not activated. Dräger X-am 2500... -
Page 17: Calibrate Instrument
Allow the sensors to warm up before the calibration! The current gas concentra- Warming-up time: see instructions for use / data sheets for tion values flash. the Dräger sensors installed (product page for X-am 2500 When the measured values at www.draeger.com). %LEL have stabilized: 3. -
Page 18: Button Calibration
If it is detected that no test gas has been supplied, the 1-button calibration is cancelled. The channels then display » n/a «. If only one sensor is included in the 1-button calibration, an adjustment is carried out in any case when key is pressed. Dräger X-am 2500... -
Page 19: Channel
DrägerSensors. 1. Connect test cylinder with the calibration 00833366.eps cradle. 2. Vent the test gas into a fume cupboard or into the open air 02133366.eps (with a hose connected to the second connector of the calibration cradle). Dräger X-am 2500... - Page 20 Vol% concentration is displayed 9. Press confirm the calibration gas concentration or use the [ + ] key to change the calibration concentration complete the process by pressing the key. 02133366.eps The measurement value flashes. Dräger X-am 2500...
-
Page 21: Operation With Pump
60 seconds. Therefore, the total time before reading the gas measuring instrument is approx. 90 seconds. The flow-rate alarm is delayed by 10 to 30 seconds depending on the length of the hose. Dräger X-am 2500... -
Page 22: Troubleshooting
EC1 concentration has drifted into the Conduct the fresh air calibration page 17. negative range The temperature is too high Operate the instrument within the allowed temperature range. The temperature is too low Operate the instrument within the allowed temperature range. Dräger X-am 2500... - Page 23 The calibration interval for DrägerSensor Run sensitivity calibration for DrägerSensor XXS EC 4 has elapsed XXS EC 4, page 19. Alarm threshold A2 is set to greater than Set alarm threshold to less than 60 %LEL. 60 %LEL Dräger X-am 2500...
-
Page 24: Fault Messages
17. The measured value of DrägerSensor XXS EC Conduct the fresh air calibration page 17. 1 is in the negative range DrägerSensor XXS EC1 is not inserted or faulty Check Dräger Sensor XXS EC1, page 21. Dräger X-am 2500... - Page 25 DrägerSensor XXS EC4 is not inserted or faulty Check Dräger Sensor XXS EC4, page 21. Error in bump test of Dräger Sensor XXS EC4 Repeat bump test, calibrate replace DrägerSensor XXS EC4, if necessary page 21. Dräger X-am 2500...
- Page 26 Faulty rise time test Repeat rise time test using X-dock. Error during warm-up acceleration Dräger Disconnect and reconnect power pack or replace Sensor XXS EC4 the sensor. Sensor must not be loaded with gas within the first 5 minutes. Dräger X-am 2500...
-
Page 27: Maintenance
Carefully dry the instrument with a cloth. Instructions for use/data sheets for the Dräger sensors can be downloaded from the product page for the X-am 2500 on the following website: www.draeger.com. See also the enclosed instructions for use and data sheets for the sensors used. -
Page 28: Technical Data
Technical data Technical data 11.1 X-am 2500 Ambient conditions: during operation and storage –20 to +50 °C for NiMH power pack type: HBT 0000 and HBT 0100, and for alkaline single cell type: Duracell Procell MN 1500 –20 to +40 °C for NiMH single cell type: GP 180AAHC and for alkaline single cell type: Panasonic LR6 Powerline 0 to +40 °C for alkaline single cell type: Varta 4006... -
Page 29: Sensor Data
11.2 Sensor Data Extract! For details, see the data sheets for the sensors used (Instructions for use/data sheets for the Dräger sensors can be downloaded from the product page for the X-am 2500 on the following website: www.draeger.com) XXS O... - Page 30 The measuring signals may be additively affected by sulphur dioxide, nitrogen dioxide and hydrogen, and negatively affected by chlorine. The measuring signals can be affected additively by acetylene, hydrogen and nitrogen monoxide. A table of the cross sensitivities is contained in the Instructions for Use or the data sheet of the respective sensor. Dräger X-am 2500...
-
Page 31: Order List
Including country-specific adjustable standard Telescopic probe 150 stainless steel 83 16 533 alarm thresholds. Tester 90 83 16 532 Dräger X-am 2500 standard instrument: Float probe with accessories 83 18 371 Dräger X-am 2500 Ex 83 23 910 Viton hose 12 03 150 Dräger X-am 2500 Ex, O... -
Page 32: Declaration Of Conformity
Declaration of Conformity Declaration of Conformity Dräger X-am 2500... - Page 36 © Dräger Safety AG & Co. KGaA Revalstraße 1 23560 Lübeck, Germany Tel +49 451 882 0 Fax +49 451 882 20 80 www.draeger.com 90 33 366 - TH 4638.205 © Dräger Safety AG & Co. KGaA Edition 01 - November 2012 Subject to alteration...
