Elecro Engineering B-100 Installation & Operating Manual page 7

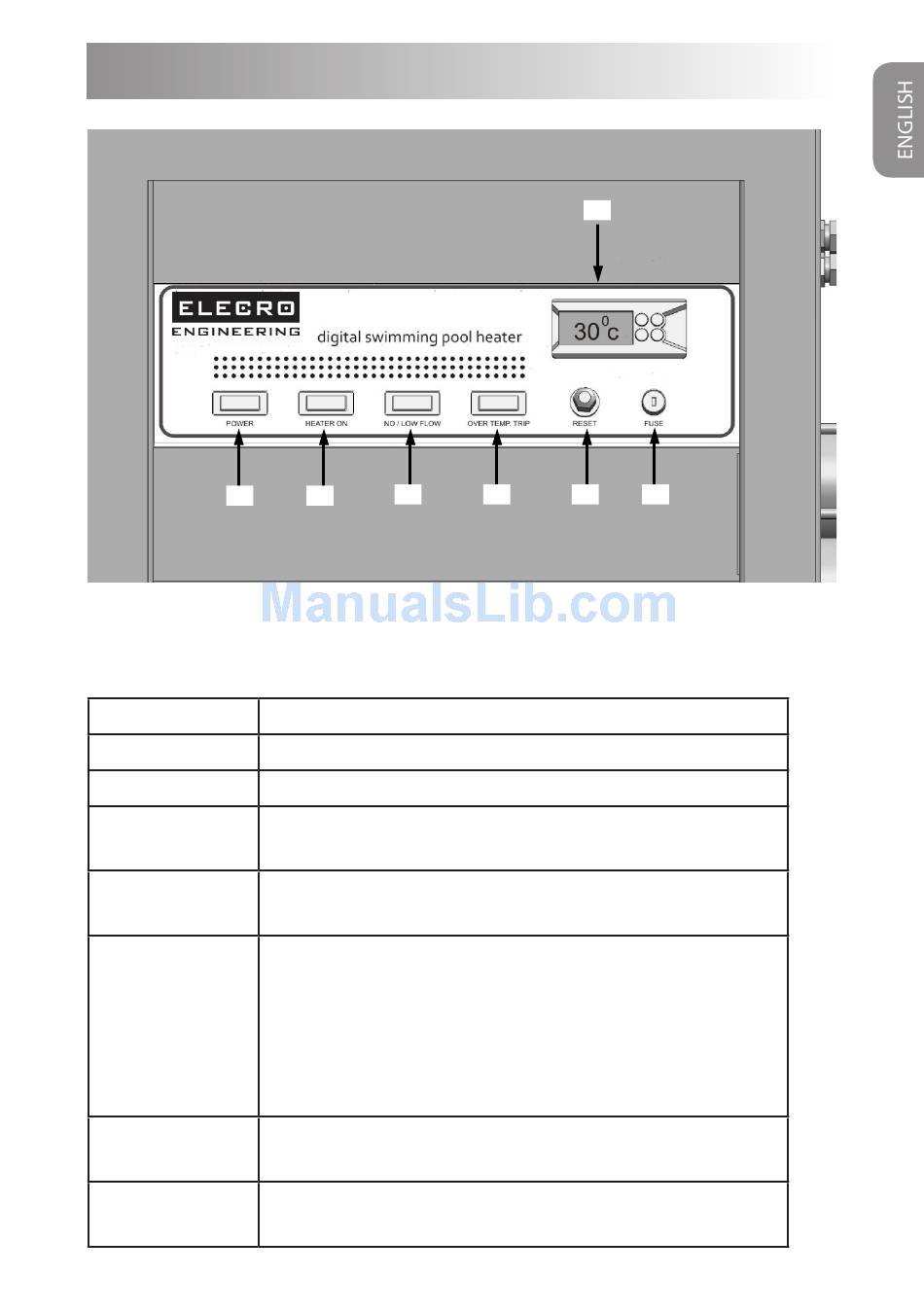

Operation Panel Key
8
4 5 6 7
2 3
Item Number Descreption
1 Digital Thermostat
2 Power Indicator
3 Indicates the heating elements are
energised and the unit is heating
4 Indicates the flow volume has fallen below
12,000-litres per hour, or has stopped completely
5 Indicates that:
A = The high limiting thermostat has tripped (re-
quires resetting)
B = The temperature within the electrical cabinet
is above 60˚C (run the filtration pump to reduce
temperature).
6 Safety Thermal Cut Out—Manual reset button
(under black cover)
7 Panel mounted fuse holder - fitted with 3-Amp
glass fuse
