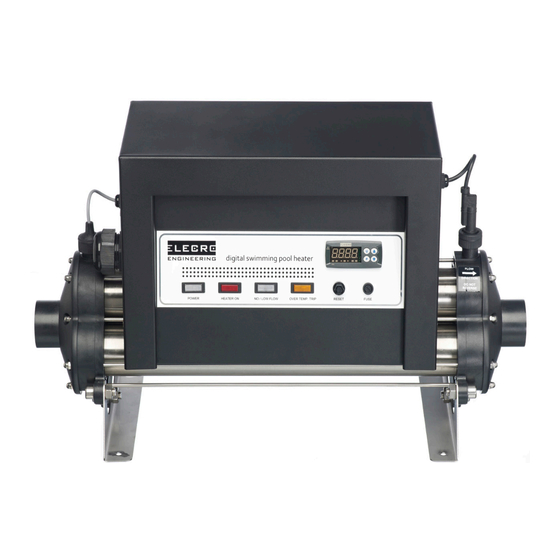

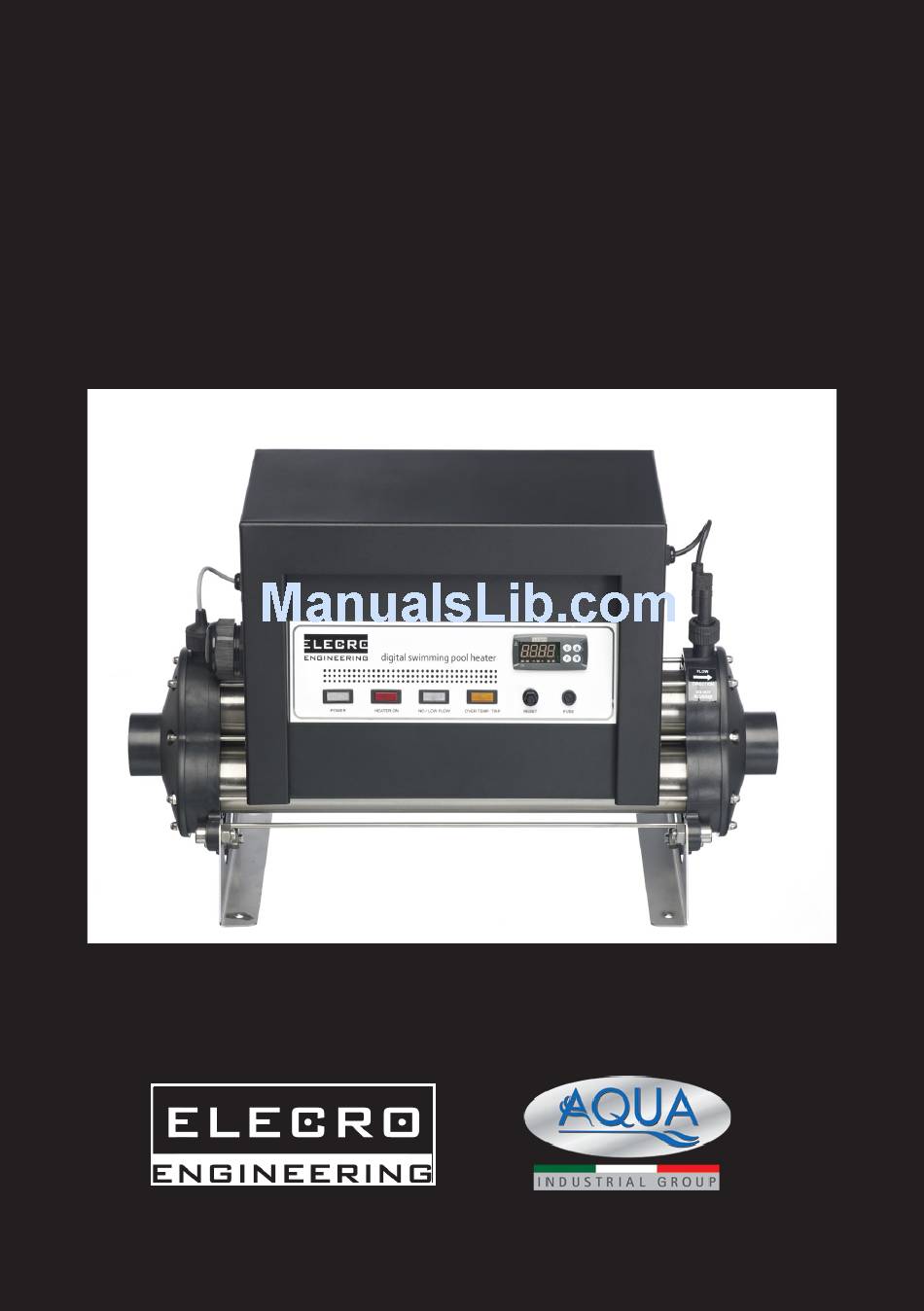

- Page 1 B-100 Pool Heater Installation & Operating Manual www.elecro.co.uk...
- Page 2 Important Notes! Thank you for purchasing the Elecro B-100 direct electric swimming pool heater manufactured in England to the highest standards. To ensure your new heater will give years of trouble free service please carefully read the following instructions. Incorrect installation will affect your warranty.
- Page 3 Positioning Your heater should be horizontally sited on a level floor or a suitable shelf allowing sufficient space for pipe connections and wiring. It must be sited downstream (after) the pump & filter but upstream (before) any chemical dosing plant. Correct In-Correct www.elecro.co.uk...
- Page 4 The heater should be connected to a filtration system with a minimum flow volume of 12,000-litres per hour (2,640 UK gallons per hour). The maximum flow volume the B-100 heater will operate with is 40,000-litres per hour (8,800 UK gallons per hour).
- Page 5 Power Requirements All B-100 heaters are fitted with their own specification plaque that details the power requirements for the heater. Below is a table of power requirements for the most common voltages - if your voltage is not listed please refer to the specification plaque on the heater.
- Page 6 Temperature Display The digital thermostat displays the temperature in ºC Item Description Function To display / modify ‘P’ button the required temperature To decrease the ‘Down’ button value To increase the ‘Up’ button value ‘U’ button NOT USED Indicates that the LED-OUT water temperature Continuously...
- Page 7 Operation Panel Key Item Number Descreption Digital Thermostat Power Indicator Indicates the heating elements are energised and the unit is heating Indicates the flow volume has fallen below 12,000-litres per hour, or has stopped completely Indicates that: A = The high limiting thermostat has tripped (re- quires resetting) B = The temperature within the electrical cabinet is above 60˚C (run the filtration pump to reduce...
- Page 8 10-seconds for a 3 bank heater, and 5-seconds for a 2 bank heater. N.B - The number of banks your B-100 heater has depends on the power output of the heater, please refer to the power requirement section earlier in this manual to check the number of element banks within your B-100 heater.
- Page 9 Possible Cause B.) The heater has been plumbed incorrectly Solution = The B-100 heater has a fixed flow direction indicated on the rigt hand manifold that houses the flow switch, ensure that the water has been plumbed in the correct direction through the heater (ie: entering on the left and exiting on the right).
- Page 10 TDS (Total Dissolved Solids) / Calcium hardness 200— 1,000ppm Stainless Steel heaters are NOT suitable for use on saline (salt) water pools. B-100 heaters with Titanium elemens are suitable for use with salt water pools with a salt concentration up to 8000ppm (8g/litre).
- Page 11 Guarantee Your heater is guaranteed for 1 year from the date of purchase against faulty workmanship and materials.* regional variations apply The manufacturer will replace or repair, at it’s discretion, any faulty units or components returned to the company for inspection. Proof of purchase may be required.
- Page 12 11 Gunnels Wood Park Stevenage Hertfordshire SG1 2BH United Kingdom | f: | e: +44 (0) 1438 749 474 +44 (0) 1438 361 329 info@elecro.co.uk www.elecro.co.uk © Copyright 2016...
