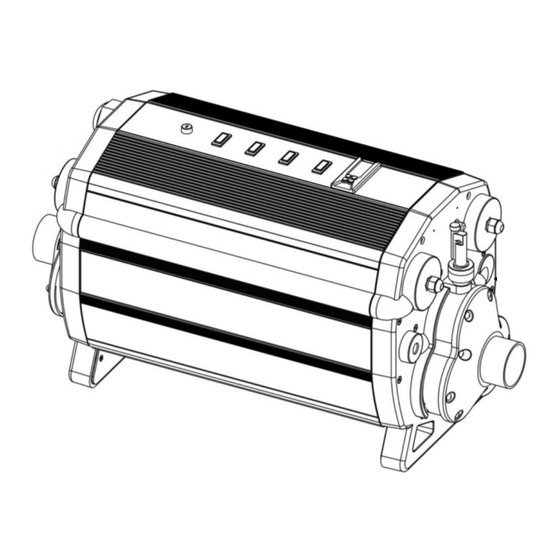

- Page 1 TITAN OPTIMA Pool Heater Installation & Operating Manual www.elecro.co.uk...
-
Page 2: Important Notes
Important Notes! Thank you for purchasing the TITAN OPTIMA direct electric swimming pool heater manufactured in England to the highest standards. To ensure your new heater will give years of trouble free service please carefully read the following instructions. Incorrect installation will affect your warranty. - Page 3 Positioning Your heater should be horizontally or vertically sited allowing sufficient space for pipe connections and wiring, it should be positioned onto a firm level base (if floor mounting) or if wall mounting onto a suitable structural wall using the supplied wall bracket. NOTE: Ensure the correct bracket fixing bolts and wall plugs are used (not supplied).
-
Page 4: Weather Protection
Fig 3. Pipe Work To assist correct air purging and to ensure the heater remains completely full of water during operation, the return pipe which carries the water back to the pool must incorporate a safety loop or ‘kick-up’ in the pipe as close as possible to the heater (see fig’s 2 &... -
Page 5: Electrical Connection
Electrical Connection The heater must be installed in accordance with the country / regional requirements & regulations. In any event the work must be carried out by a qualified electrician, who will provide a certificate of conformity upon completion of the work. The power supply must be fitted with a RCD, and a means of disconnection / isolation. -
Page 6: Flow Requirements
Flow Requirements The heater should be connected to a filtration system with a minimum flow volume of 12,000-litres per hour (2,640 UK gallons per hour). The maximum flow volume that the heater will operate with is 40,000-litres per hour (8,800 UK gallons per hour). Recommended flow is 30.000- litres per hour (6,600 UK gallons per hour). -
Page 7: Operating Your Heater
When the correct required temperature is displayed, press and release the P button. The unit will then revert to displaying the current water temperature, but will now control the water temperature, to a maximum of the required temperature. Time switching delay: To prevent overheating of the components within the heater caused by frequent ’On’... -
Page 8: Troubleshooting
switched on together with the red HEATER ON neon indicator. Following a further 10-second time delay the second bank of elements will be switched ‘ON’. Following a further 10-second delay the third bank of elements will be switched ‘ON’. This sequence of staged energisation (timed energisation) will continue depending on the power output of your heater (see table). -
Page 9: General Troubleshooting
THE AMBER OVER TEMP. TRIP NEON INDICATOR IS ILLUMINATED: Possible Cause: The ‘thermal safety cut-out’ has tripped. Solution: Unscrew the black cover on the water exit side of the heater, press the red button, if a positive click is felt it is likely that an air pocket has built up within the heater and needs to be purged to prevent damage to the heating elements (see diagram below). -
Page 10: Water Quality
Titan Optima Plus heater is required. Water chemistry is complicated if in doubt seek expert advise. RoHS Compliance Statement Elecro Engineering Limited certify that our Electric Swimming Pool Heater Range complies in accordance with RoHS Directive 2011/65/EU on the restriction of hazardous substances. - Page 11 Guarantee Your heater is guaranteed from the date of purchase against faulty workmanship and materials ie: 2 years guarantee for incoloy heating element products and 3 years guarantee for titanium heating element products.* regional variations apply The manufacturer will replace or repair, at it’s discretion, any faulty units or components returned to the company for inspection.
- Page 12 11 Gunnels Wood Park Stevenage Hertfordshire SG1 2BH United Kingdom | f: | e: +44 (0) 1438 749 474 +44 (0) 1438 361 329 info@elecro.co.uk www.elecro.co.uk © Copyright 2016...
