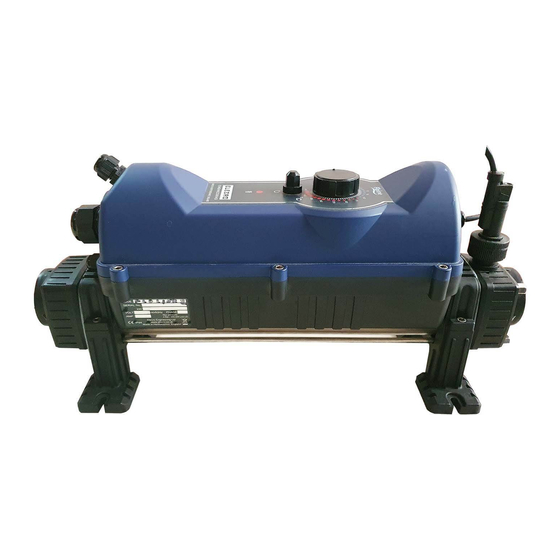

Thank you for purchasing the Flow-Line direct electric swimming pool heater manufactured in England to
the highest standards. To ensure your new heater will give years of trouble free service please carefully
read the following instructions.
P
OSITIONING

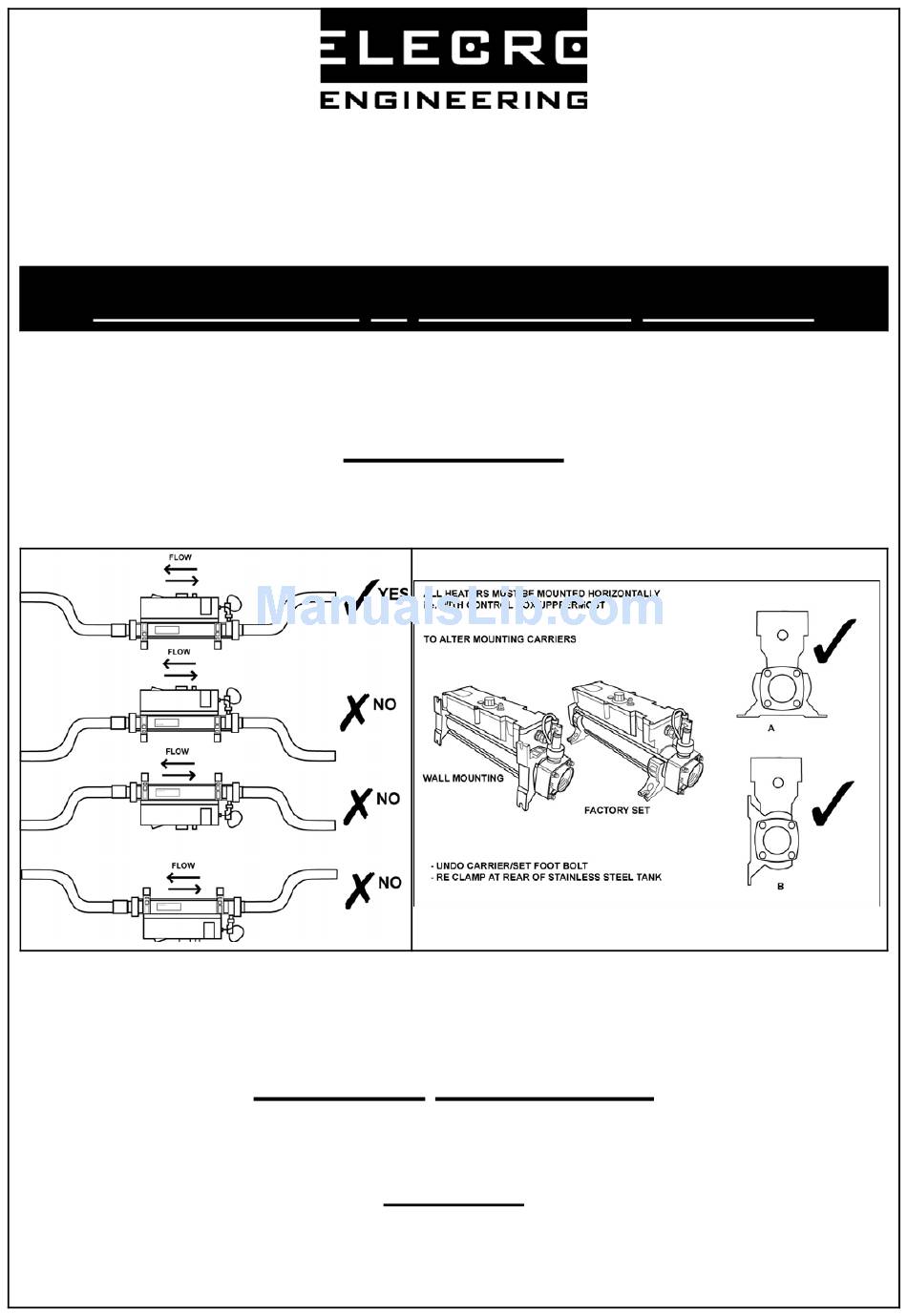

The heater should be horizontally sited allowing sufficient space for pipe connections and wiring. It should
be sited downstream (after) the pump & filter but upstream (before) any chemical dosing plant. The heater
can be floor or wall mounted using the brackets fitted to the heater.
To assist correct air purging and to ensure that the heater remains completely full of water during operation
the return pipe that carries water back to the pool must incorporate a safety loop or kick-up in the pipe
work, installed as close as possible to the heater (see diagram above, left).
W
P
EATHER
ROTECTION
The heater should be installed within a dry weather proof enclosure.
CAUTION !
If the heater is not used during winter months in must be drained to prevent frost damage.
