Elcontrol Microvip 3 plus User Manual page 25

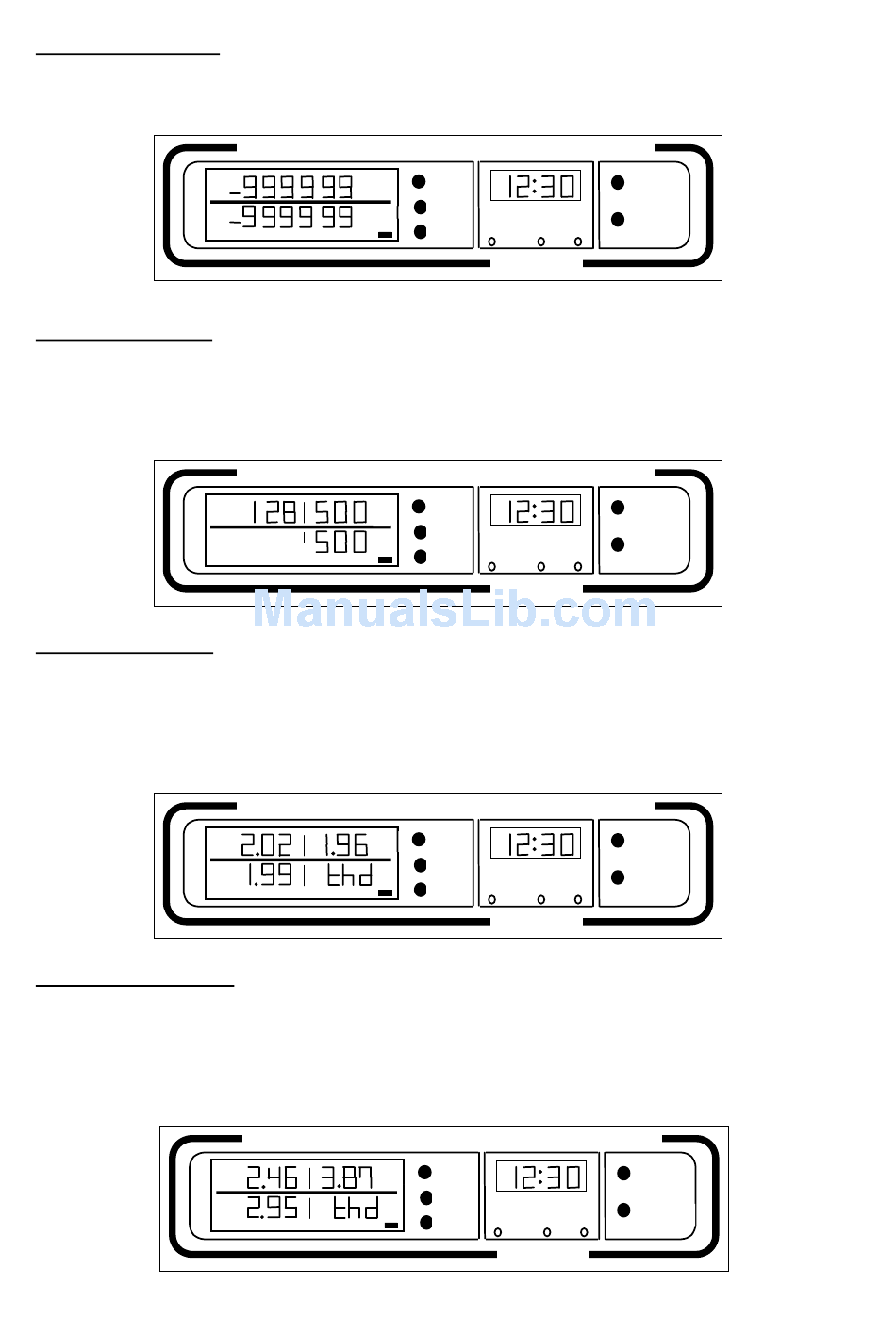

Eighth page (three-phase)
kVArh : Reactive energy export (COG4 option)
kWh : Active energy export (COG4 option)
Note: Press SET to clear
Ninth page (three-phase)
kVAr : Average reactive power peak of the three phase system
kVA : Average apparent power peak of the three phase system
kW : Average active power peak of the three phase system
Note: Press SET to clear
Tenth page (three-phase)
THDF VL1 : Total harmonic distortion factor of the voltage of phase 1 referred to the Rms
or to the fundamental value for 50/60 Hz systems
THDF VL2 : Total harmonic distortion factor of the voltage of phase 2 referred to the Rms
or to the fundamental value for 50/60 Hz systems
THDF VL3 : Total harmonic distortion factor of the voltage of phase 3 referred to the Rms
or to the fundamental value for 50/60 Hz systems
Eleventh page (three-phase)
THDF AL1: Total harmonic distortion factor of the current of phase 1 referred to the Rms
or to the fundamental value for 50/60 Hz systems
THDF AL2: Total harmonic distortion factor of the current of phase 1 referred to the Rms
or to the fundamental value for 50/60 Hz systems
THDF AL3: Total harmonic distortion factor of the current of phase 1 referred to the Rms
or to the fundamental value for 50/60 Hz systems
MICROVIP3 Plus
kVArh
kWh
3 ø
MICROVIP3 Plus
kVAr
kVA
kW
PEAK MEM
3 ø
MICROVIP3 Plus
V
L1 L2
L3
MICROVIP3 Plus
L1
L2 A
L3
3-PHASE ENERGY & HARMONIC ANALYZER
PAGE
SEL
PRG SELC SETC
SET
ELCONTROL energy
3-PHASE ENERGY & HARMONIC ANALYZER
PAGE
SEL
PRG SELC SETC
SET
ELCONTROL energy
3-PHASE ENERGY & HARMONIC ANALYZER
PAGE
SEL
PRG SELC SETC
SET
ELCONTROL energy
3-PHASE ENERGY & HARMONIC ANALYZER
PAGE
SEL
PRG SELC SETC
SET
ELCONTROL energy
20
PRINT
PAPER
PRINT
PAPER
PRINT
PAPER
PRINT
PAPER
