Elcontrol STAR 3 User Manual

Energy & harmonics analyser
Hide thumbs

Advertisement

Quick Links

Download this manual
ENGLISH
Energy & Harmonics Analyser
Energy & Harmonics Analyser
WARNING – Elcontrol Energy Net S.p.a. declines all liability for any damage to people or property caused by unsuitable or incorrect use
of its products. Elcontrol Energy Net reserves the right to change product specifications without prior notice.
Via Vizzano 44 - 40044 Pontecchio Marconi (Bologna)Italy
Tel. +39 051 6782006 - Fax +39 051 845544
http://www.elcontrol-energy.net -
e-mail: Italia vendite@elcontrol-energy.net
estero: sales@elcontrol-energy.net
ST
ST

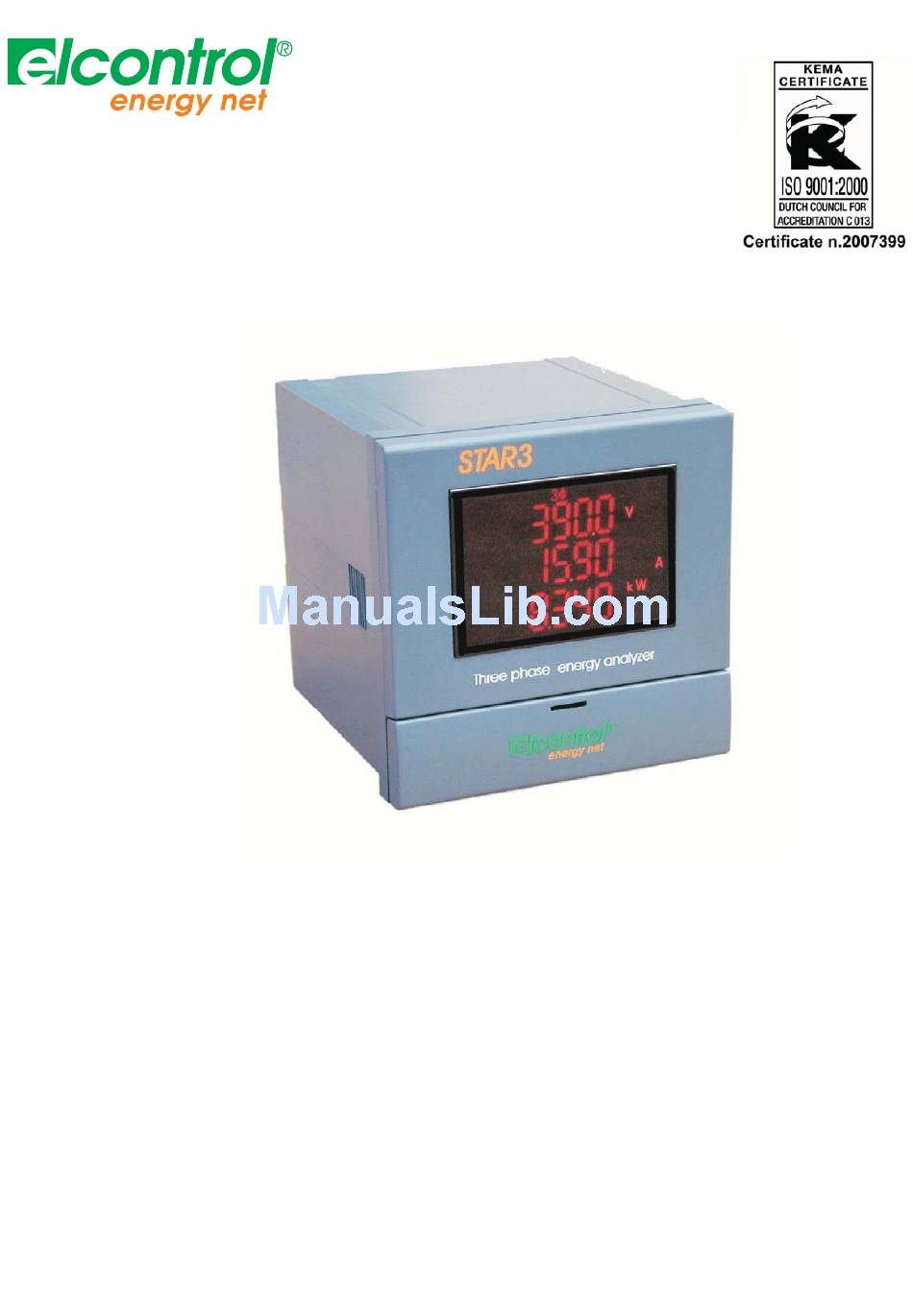

USER MANUAL
USER MANUAL
3YYYB106 STAR3 User Manual Eng Rev. 02/2005
AR3
AR3

Advertisement

loading
Need help?

Need help?

Do you have a question about the STAR 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elcontrol STAR 3

Summary of Contents for Elcontrol STAR 3

  • Page 1 USER MANUAL WARNING – Elcontrol Energy Net S.p.a. declines all liability for any damage to people or property caused by unsuitable or incorrect use of its products. Elcontrol Energy Net reserves the right to change product specifications without prior notice.
  • Page 2 STAR3 The pages of this diagram are available in 3PH-N mode. In 3PH, 2PH and 1PH some pages will disappear.
  • Page 3 MEASURES PAGES STAR3 STAR3 Pg M2 Three phase energy analyzer Three phase energy analyzer PAG. SEL. SET. PAG. SEL. SET. Pg M1 Pg M2 Line voltage Phase Currents STAR3 STAR3 STAR3 STAR3 T h r e e p h a s e e n e r g y Three phase energy analyzer Three phase energy analyzer...
  • Page 4 MEASURES PAGES STAR3 STAR3 STAR3 STAR3 THD% PAG Pg M7 r m s Three phase energy analyzer Three phase energy analyzer Three phase energy analyzer Three phase energy analyzer PAG. SEL. SET. PAG. SEL. SET. PAG. SET. SEL. PAG. SEL. SET.
  • Page 5 MEASURES PAGES STAR3 STAR3 STAR3 STAR3 kVAr VA h VA h Pg M11 Three phase energy analyzer Three phase energy analyzer Three phase energy analyzer Three phase energy analyzer PAG. SEL. SET. PAG. SEL. SET. PAG. SEL. SET. PAG. SEL. SET.
  • Page 6 SETUP MENU - ALL MODELS STAR3 STAR3 STAR3 PAG+SEL Three phase energy analyzer Three phase energy analyzer Three phase energy analyzer PAG. SET. PAG. SET. SEL. SEL. PAG. SEL. SET. Pg S1 Pg S2 Pg S3 VT ratio CT ratio Integration period STAR3 STAR3...
  • Page 7 SETUP MENU - ADDITIONAL PAGES FOR MODELS 4-20MA STAR3 Three phase energy analyzer PAG. SEL. SET. Pg S10 4-20mA Output range STAR3 STAR3 Three phase energy analyzer Three phase energy analyzer PAG. SET. SEL. PAG. SEL. SET. Pg S12 4-20mA Pg S11 4-20mA Measure for output 2 selection Measure for output 1 selection...
  • Page 8 SETUP MENU - ADDITIONAL PAGES FOR MODELS ALM AND HARMO STAR3 STAR3 STAR3 STAR3 SET Pg S12 Pg S11 Three phase energy analyzer Three phase energy analyzer Three phase energy analyzer Three phase energy analyzer PAG. SEL. SET. PAG. SEL. SET.
  • Page 9 MEASURES CONNECTION DIAGRAMS POWER VOLTAGE CURRENT POWER VOLTAGE CURRENT SUPPLY SUPPLY 90-230 V VL3 VL2 VL1 N A1 COM 90-230 V AC/DC A2 A1 COM VL3 VL2 VL1 N AC/DC POWER VOLTAGE CURRENT SUPPLY POWER VOLTAGE CURRENT SUPPLY 90-230 V VL3 VL2 VL1 N A1 COM AC/DC...
  • Page 10 POWER POWER VOLTAGE CURRENT SUPPLY SUPPLY VOLTAGE CURRENT 90-230 V AC/DC A1 COM VL3 VL2 VL1 N 90-230 V VL3 VL2 VL1 N A1 COM AC/DC 5 6 7 POWER SUPPLY CONNECTION DIAGRAMS POWER VOLTAGE CURRENT SUPPLY 230VAC Fuse 100 mAT 115V 230V VL3 VL2 VL1 N A1 COM...
  • Page 11 DISPLAYED MEASUREMENT ARAMETERS ARAMETERS • • • • Phase-neutral V oltage [V] Phase-neutral V oltage [V] • L1-L2 Phase-phase V Phase-phase V oltage [V] oltage [V] L1-L2 L2-L3 L2-L3 L3-L1 L3-L1 • • • • • Current [A] Current [A] •...
  • Page 12 1 - INTRODUCTION Please read carefully the instructions with this symbol before installing and using the instrument. 1.1 - STANDARDS and REGULATIONS STAR3 conforms to Directive 73/23/CEE (LVD) and 2004/108/CE (EMC). It has been designed with reference to EN 61010-1, EN 61326 including append. A1/A2/A3, EN 61000-6-2, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3, EN 61000-3-3/A1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-5/A1, EN 61000-4-6, EN 61000-4-6/A1, EN 61000-4-8, EN 61000-4-8/A1,EN 61000-4-11, EN 61000-4-11/A1.
  • Page 13 Page M1 (page and subpages not available in 1PH mode) Phase-neutral voltages V L1-N , V L2-N , V L3-N (3 PH-N, 3 PH ) Phase-neutral voltages V L1-N , V L2-N (2 PH) ·Page M1-S1 ( page appearing only in 3PH-N and 2 PH) Phase to Phase Voltage V L1-L2 ·Page M1-S2 ( page appearing only in 3 PH-N)

  • Page 14: Setup Pages

    ·Page M8 Equivalent three-phase voltage V = (V ) / 3 (3 PH-N) L1-N L2-N L3-N Equivalent three-phase voltage V = (V ) / 3 (3 PH) L1-L2 L2-L3 L3-L1 Phase to phase voltage V = V (2 PH) L1-N L2-N Phase-Neutral voltage V= V...
  • Page 15 ·Page S5 Reset Averages and Maximum Demands, Power and current averages. If you select Y with the SET key, all the Averages and maximum demand values will be reset as soon you confirm by pressing the PAG. key. ·Page S6 Enable Cogeneration counters. Select ON or Off to enable the measures and confirm with PAG To measure properly the cogeneration counters it is strictly necessary to connect the CTs oriented in the same direction.
  • Page 16 7 – ADDITIONAL SETUP PAGES FOR MODELS STAR3 HARMO and ALM To access Programming Mode, open the front door and press the PAG and the SEL keys at the same time. Use the SEL key to select a digit or a setting. Use the SET key to adjust it. The setup can be protected with a password (see chapter 6) ·Page S10- Pulses with length 100 msec Enable Pulse mode with pulse length of 100 msec...
  • Page 17 ·Page S19- Alarm 1 High threshold Set-up of the upper threshold (H) of the selected measure. When the measure remain above the threshold + hysteresis , for a time longer than the requested delay, the relay 1 is closed, range 000-999 (000-99.9 for the active, reactive and apparent powers) x 10 Press the SEL key to select the digit or exponent to be modified.

  • Page 18: Relay Outputs

    ·Page S12 4-20mA – Measure for output 2 Similar to the previous page for output 1 Press PAG to go to the output 1 end value set-up page. ·Page S13 4-20mA Output 1 full scale value set-up Press the SEL key to select the exponent or the digit to modify. Press the SET key to modify the selected exponent or digit.

  • Page 19: Technical Characteristics

    10 - TECHNICAL CHARACTERISTICS Maximum dimensions (mm): instrument: 157,5 x 58 x 90 Power supply: · Until end 2004: 230Vac or 115 Vac +15%-20% @ 35÷400Hz (consumption 6VA) · From 2005 on: switching circuit. 90÷230 Vac or Vdc ±15% @ 0÷400 Hz (cons. 5VA) Display: reverse red LCD with LED backlight Voltmeter inputs: VL1, VL2, VL3, N up to 350V phase-neutral, 600V phase-to-phase, 35÷400 Hz Voltmeter input impedance: 2 M...
