5

MICROVIP3 PLUS OPERATING MODES

The MICROVIP3 PLUS displays measurements on its LCD.
A switch on the rear panel allows you to select one of two operating modes.
5.1 SINGLE PHASE MODE
The instrument display and data control functions are controlled by the keys on the front panel shown in fig. 2.1.
5.1.1 THE PAGE KEY
The PAGE key enables you to switch the display between seven measurement pages.
When you switch the instrument on in single phase mode, the first measurement page is displayed by default. Press the
PAGE key to move on to the next pages.

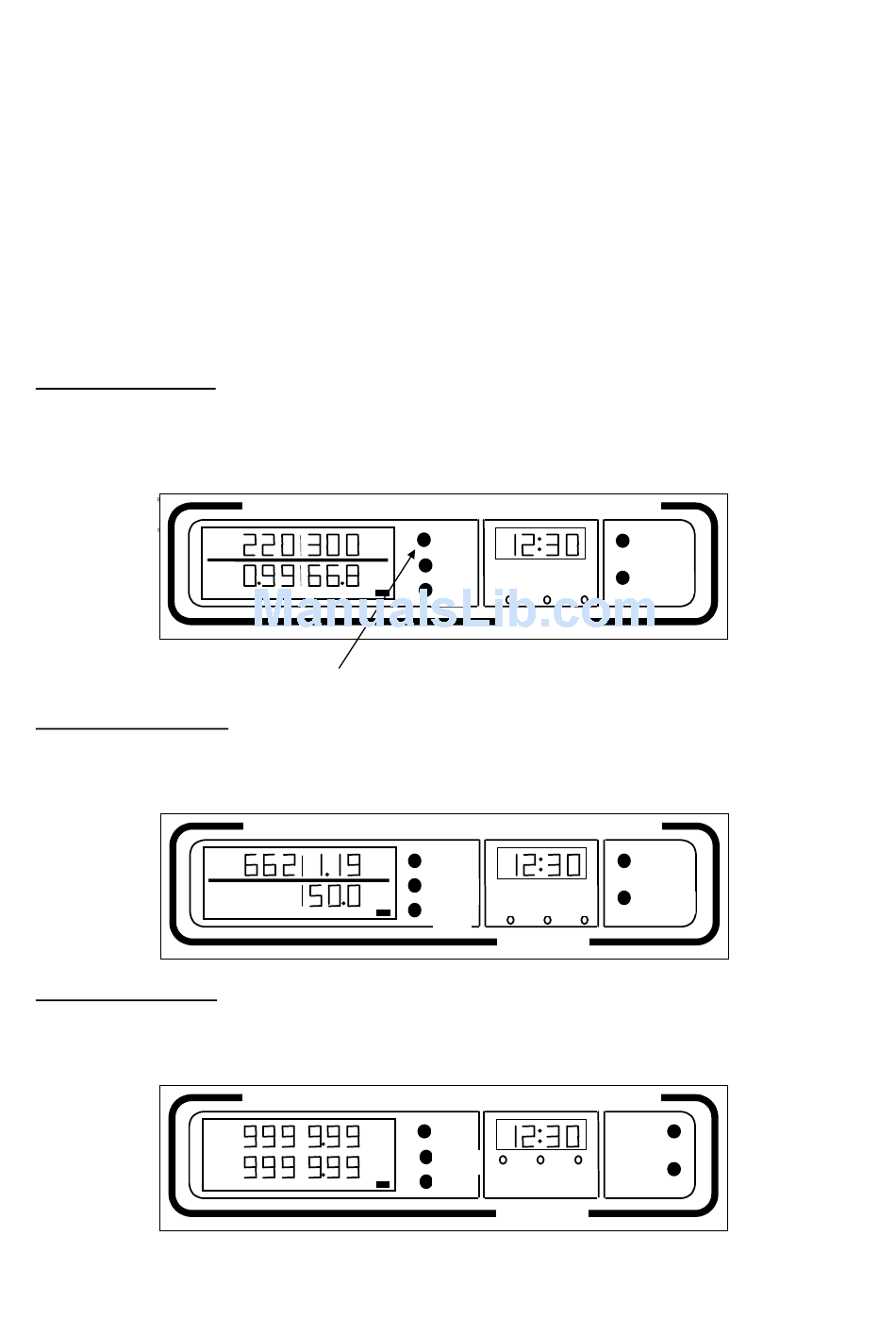

First page (single-phase)
Volt: Rms phase-to-neutral voltage
Amp: Rms current
Watt: Active power with full scale value of VxA.
CosΦ P.F.: Power Factor with variations from -0,00 a +0,00.
Second page (single-phase)
kVAr: Reactive power.
kVA: Apparent power.
Hertz: voltage Frequency, range 20 to 600 Hz (AC) and 00 Hz (DC).
Third page (single-phase)
kvarh (kVAh) : Reactive energy consumption for the single-phase system
(Apparent energy with STD2 option)
kWh : Active energy consumption for the single-phase system
MICROVIP3 Plus
V
CosΦ
KW
P.F.
Press page key to display
next pages
MICROVIP3 Plus
VAr KVA
Hz
MICROVIP3 Plus
kVArh
KWh
3-PHASE ENERGY & HARMONIC ANALYZER
A
PAGE
SEL
PRG SELC SETC
SET
ELCONTROL energy
3-PHASE ENERGY & HARMONIC ANALYZER
PAGE
SEL
PRG SELC SETC
SET
ELCONTROL energy
3-PHASE ENERGY & HARMONICS ANALYZER
PAGE
SEL
PRG SEL
SET
ELCONTROL energy
15
PRINT
PAPER
PRINT
PAPER
PRINT
PAPER
SET
