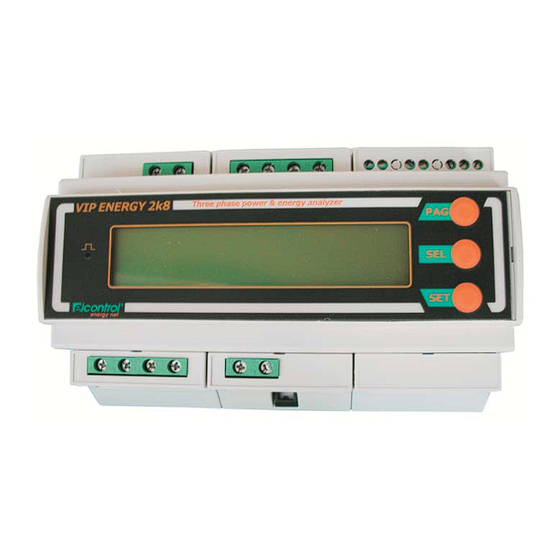

Energy & Harmonics Analyser
Energy & Harmonics Analyser
WARNING – Elcontrol Energy Net S.r.l. declines all liability for any damage to people or property caused by unsuitable or incorrect
use of its products. Elcontrol Energy Net reserves the right to change product specifications without prior notice.
VIP
ENERGY
VIP
ENERGY
ALM - HARMO
ALM - HARMO
USER MANUAL
USER MANUAL
3YYYB125 Vip Energy 2k8 User Manual Eng
Via Vizzano 44 - 40037 Pontecchio Marconi (Bologna)Italy
Tel. +39 051 6782006 - Fax +39 051 845544
http://www.elcontrol-energy.net
e-mail: vendite@elcontrol-energy.net
sales@elcontrol-energy.net
Rel.01/2009
2K8
2K8
Advertisement
Related Manuals for Elcontrol Vip Energy 2K8 ALM HARMO
Summary of Contents for Elcontrol Vip Energy 2K8 ALM HARMO
- Page 1 USER MANUAL WARNING – Elcontrol Energy Net S.r.l. declines all liability for any damage to people or property caused by unsuitable or incorrect use of its products. Elcontrol Energy Net reserves the right to change product specifications without prior notice.
- Page 2 THREE PHASE (DELTA / STAR) CONNECTION, QUICK REFERENCE MEASURES PAGES Legend: Note: Only Harmo version (**) Only in cogeneration Mode (***) Only in Star connection...
- Page 3 DIPHASE CONNECTION QUICK REFERENCE MEASURES PAGES Note: Legend: Only Harmo version (**) Only in cogeneration Mode SINGLE–PHASE CONNECTION QUICK REFERENCE MEASURES PAGES Legend: Note: Only Harmo version (**) Only in cogeneration Mode...
- Page 4 SETUP PAGES (ALL MODELS) PAG + SEL PAG +SEL (30 SEC) Fig. 28 Fig. 27 Fig. 26 Fig. 29 Fig. 30 Fig. 31 Fig. 32 Fig. 33 Fig. 34 SETUP 4-20mA / ALM Fig. 35 SETUP PAGES ALM VERSION Fig. 42 From the Common Setup Pages Fig-36 Fig.
- Page 5 DISPLAYED MEASUREMENT A R A M E T E R S A R A M E T E R S Phase-neutral V age [V] Phase-neutral V age [V] • • • • Phase-phase V age [V] Phase-phase V age [V] L1-L2 L2-L3 L3-L1...
- Page 6 VIP ENERGY 2k8 Three phase power & energy analyzer VIP ENERGY 2k8 Three phase power & energy analyzer Fig.9 Fig.1 VIP ENERGY 2k8 VIP ENERGY 2k8 Three phase power & energy analyzer Three phase power & energy analyzer Fig.10 Fig.2 VIP ENERGY 2k8 Three phase power &...
- Page 7 VIP ENERGY 2k8 Three phase power & energy analyzer VIP ENERGY 2k8 Three phase power & energy analyzer Fig.17 Fig.22 VIP ENERGY 2k8 VIP ENERGY 2k8 Three phase power & energy analyzer Three phase power & energy analyzer Fig.18 Fig.23 VIP ENERGY 2k8 VIP ENERGY 2k8 Three phase power &...
- Page 8 WIRING DIAGRAMS MEASURES INPUTS VIP ENERGY 2k8 Three phase power & energy analyzer VIP ENERGY 2k8 Three phase power & energy analyzer 3 PH 3 PH - N VIP ENERGY 2k8 VIP ENERGY 2k8 Three phase power & energy analyzer Three phase power &...
-
Page 9: Power Supply Connection
POWER SUPPLY CONNECTION 200 mAT 100 mAT 115 VAC 230 VAC VIP ENERGY 2k8 Three phase power & energy analyzer VIP ENERGY 2k8 Three phase power & energy analyzer LABELS 230V 115V Rs485 4VA-50/60Hz CURRENT INPUT MAX 7A POWER SUPPLY VOLTAGE INPUT MAX 600V CAT III DIMENSIONS... - Page 10 1 - INTRODUCTION Please read carefully the instructions with this symbol before installing and using the instrument. 1.1 - STANDARDS and REGULATIONS VIP ENERGY2K8 conforms to Directive 73/23/CEE (LVD) and 2004/108/CE (EMC). It has been designed with reference to EN 61010-1, EN 61326 including append. A1/A2/A3, EN 61000-6-2, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3, EN 61000-3-3/A1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-5/A1, EN 61000-4-6, EN 61000-4-6/A1, EN 61000-4-8, EN 61000-4-8/A1,EN 61000-4-11, EN 61000-4-11/A1.
- Page 11 [Fig. 2] Page appearing only in Three phases without neutral (Delta). 3 PH Phase-phase voltages V L1-L2, V L2-L3, V L3-L1 [Fig. 3] Graphics of the maximum, minimum and instantaneous value of the phase voltage. In the central part of the page you can see the phase the graphic refers to [Fig.
- Page 12 [Fig. 15] 3 PH-N, 3 PH Phase Total Harmonic Distortion THD%A1, THD%A2 ; THD%A3 2 PH Phase Total Harmonic Distortion THD%A1, THD%A2 1 PH Page not appearing THD%A1= æ ö ç ÷ å ø è [Fig. 16] Equivalent three-phase voltage V = (V L1-N + V L2-N + V L3-N ) / 3 (3 PH-N) Equivalent three-phase voltage...
- Page 13 [Fig. 25] Phase-phase Voltage VL1-L2. It appears only in 2 PH. 4 – SETUP PAGES (ALL THE MODELS) Programming the instrument through the SETUP menu. Use the PAG and SEL keys to access the Programming mode (SETUP menu). See also the diagram on page 8 reading this chapter 4.1 –SETUP PAGE PROTECTION CODE By default, the access code to set-up pages is not enabled.
- Page 14 [Fig. 34] Rs485 communication parameters set-up. Baud Rate can have the following values: 2400, 4800, 9600, 19200 (bps) The Parity (central) value can be: N(none), O(odd), E(even). The type of communication protocol Modbus (3 bottom digits) can be: ASCII = Modbus ASCII. This format is limited to simulate the same data frame of the Vip Energy. = Modbus BCD MODICON protocol IEEE = Modbus IEEE standard, INTEL format...
- Page 15 6 – TECHNICAL CHARACTERISTICS Maximum dimensions (mm): instrument: 157,5 x 58 x 90 Power supply: from network 230 V 115 V +15% - 20% @ da 50/60 Hz (4 VA) Display: LCD display dot matrix Voltmeter inputs: 600V CAT. III (750V CAT. II), 35÷400 Hz Voltmeter input impedance: 2 M Voltage input overload : max 850 V phase-neutral Current inputs: AL1, AL2, AL3, COM.
