5.1.2

ENERGY CONSUMPTION AND MAXIMUM DEMAND RESET

The SET button resets to zero all electrical energy consumption counts (kVArh, kVAh, kWh) and active, reactive and
apparent power peak values. The button is enabled only when the page displayed reads out one of these values (i.e. in
pages three, four and five).

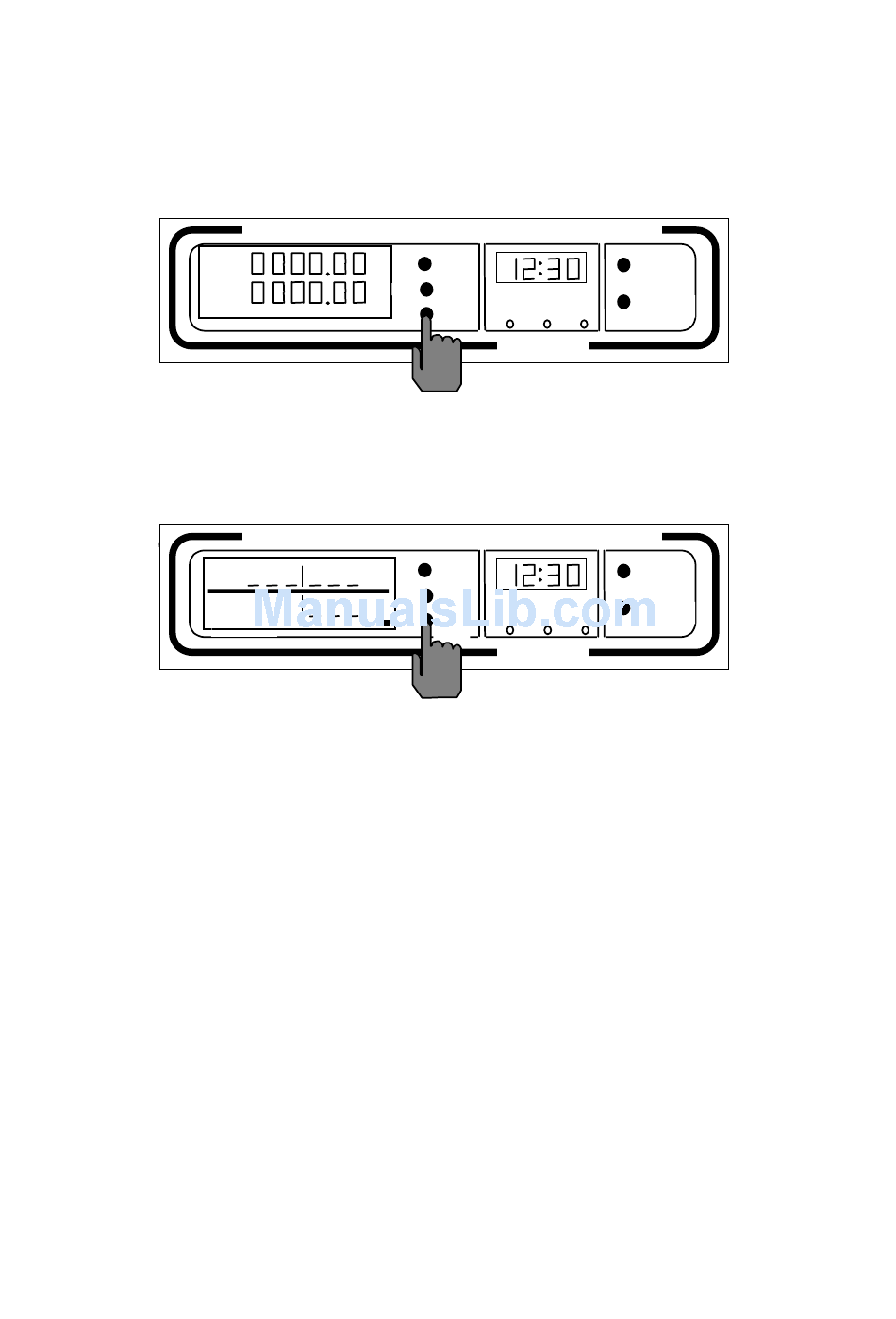

If you press the SET button while page three or page four is displayed, the energy counts on the display are reset to
zero.
If you press the SET button while the fifth page is displayed, the active and reactive power peak values are reset to zero.
The buffer used to calculate average power is also cleared, and this measurement therefore remains invalid until the
programmed integration time has elapsed again.
A series of dashes is displayed.
Once you have reset values, press the PAGE key to return to measuring mode.
MICROVIP3 Plus
kVArh
kWh
MICROVIP3 Plus
VA
VAr
W
PEAK MEM
3-PHASE & HARMONIC ANALYZER
PAGE
SEL
PRG SELC SETC
SET
ELCONTROL energy
3-PHASE ENERGY & HARMONIC ANALYZER
PAGE
SEL
PRG SELC SETC
SET
ELCONTROL energy
17
