Elcontrol Microvip 3 plus User Manual page 21

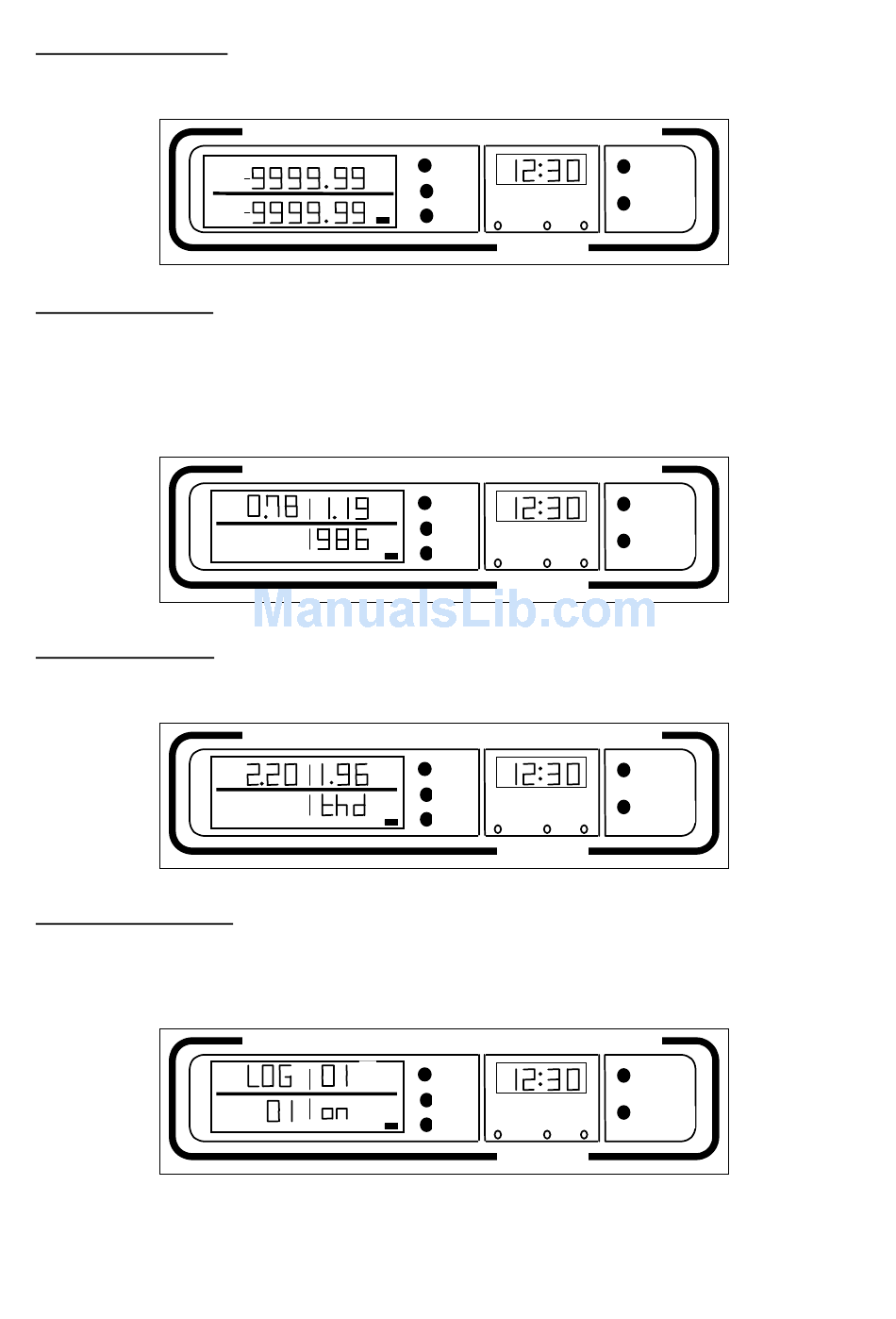

Fourth page (single-phase)
kVArh : Reactive energy export for the single phase system (COG4 option)
kWh : Active energy export (COG4 option)
Fifth page (single-phase)
kVAr : Average Reactive power peak of the single phase system
kVA : Average Apparent power peak of the single phase system
kW : Average Active power peak of the single phase system (Maximum demand)
Peak values are memorized and displayed only after an integration period of 1, 2, 5, 10, 15, 20, 30 or 60 minutes from
the time the instrument is first switched on. Values are updated every fifth of the integration period.
Sixth page (single-phase)
THDF V - THDF A : Total Harmonic Distortion Factor of Voltage and Current referenced
to the rms or to the fundamental value for the 50/60 Hz systems
Seventh page (single-phase)
Data storage control page
Log on (off) : to activate (or de-activate) data storage (using the SET key)
01-99 m (minutes) : Data records rate
00-100 (%) MEM : % of memory used
MICROVIP3 Plus
kVArh
MICROVIP3 Plus
kVA
kVAr
PEAK MEM
MICROVIP3 Plus
V
(00 = 3 seconds)
MICROVIP3 Plus
m
MEM
3-PHASE ENERGY & HARMONIC ANALYZER
PAGE
SEL
PRG SELC
SET
ELCONTROL energy
3-PHASE ENERGY & HARMONIC ANALYZER
PAGE
SEL
W
PRG SELC
SET
ELCONTROL energy
3-PHASE ENERGY & HARMONIC ANALYZER
A
PAGE
SEL
PRG SELC
SET
ELCONTROL energy
3-PHASE ENERGY & HARMONIC ANALYZER
PAGE
SEL
PRG SELC
SET
ELCONTROL energy
16
PRINT
SETC
PAPER
PRINT
SETC PAPER
PRINT
SETC PAPER
PRINT
SETC PAPER
