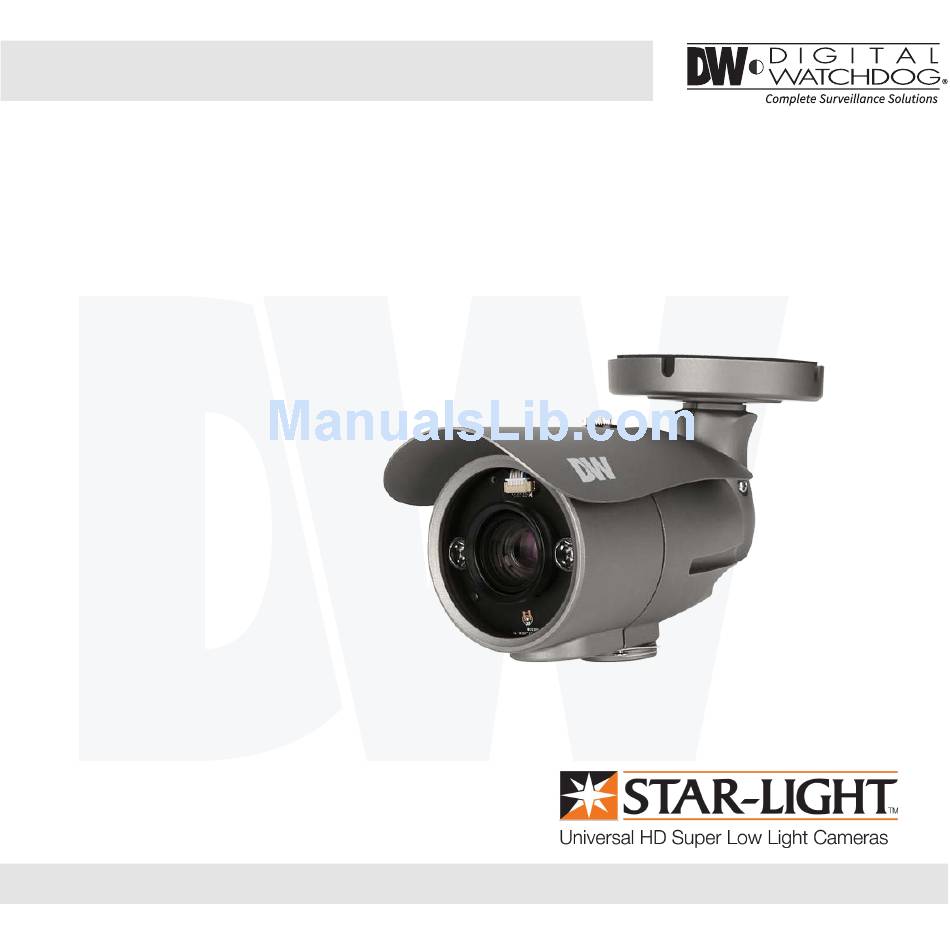

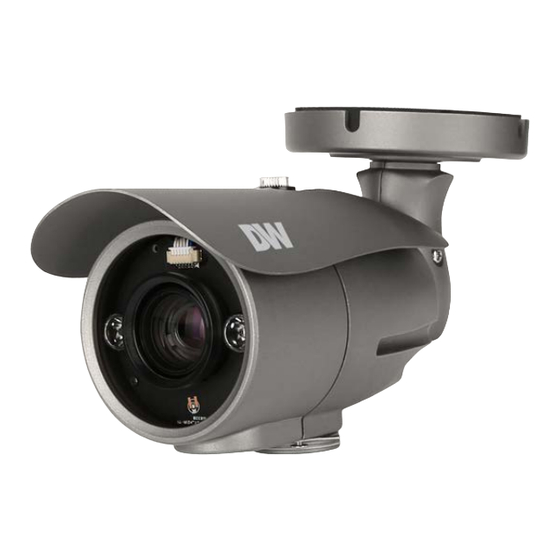

- Page 1 STAR-LIGHT Universal HD over Coax License Plate Recognition Bullet Camera DWC-LPR650U User’s Manual Ver. 08/17 Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference.
- Page 2 Index INTRODUCTION Safety Information Features Part Name Dimension Product & Accessories INSTALLTION Installation Installation - License Plate Recognition Setup Connecting to Monitors Control Board Adjusting the Camera angle OSD MENU Menu Tree OSD Menu - Exposure OSD Menu - Color OSD Menu - Day&Night OSD Menu - Function OSD Menu - Motion...
-
Page 3: Safety Information
Safety Information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that dangerous voltage This exclamation point symbol is intended to alert the consisting a risk of electric shock is present within user to the presence of important operating and... - Page 4 Safety Information 7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock. 8. If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately disconnect the power source and contact the service center. Continued use in such a condition may cause fire or electric shock.
-
Page 5: Important Safety Instructions
Important Safety Instructions 1. Read these instructions. All these safety and operating instructions should be read before the product is installed or operated. 2. Keep these instructions. The safety, operating and use instructions should be retained for future reference. 3. Heed all warnings. All warnings on the product and in the operating instructions should be adhered to. - Page 6 Important Safety Instructions 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
-
Page 7: Features
Features Universal HD over Coax™ Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support 2.1MP 1/3" Image Sensor at Real-time 30fps HD Analog LPR™ License Plate Recognition Technology captures reflective license plates up to 50mph with a 13’~30’ Capture Range Reliable Performance under Any Lighting Conditions External OSD and Lens Adjustment Varifocal P-Iris Lens 6~50mm... -
Page 8: Part Name
Part name Sunshield Adjusting Screws Sunshield Cover Lens Sunshield Adjusting Screws Zoom Control Focus Control Mounting Bracket OSD Joystick EX-CON Con Cap Test Video Slot BNC Cable Power Cable... -
Page 9: Dimension
Dimension Unit : Inches (mm) 10.4" (264mm) 3.6" (92mm) 3.8" (96.7mm) 5.15" (131mm) 3.7" (94mm) 8.8" (225mm) 3.8" (96.7mm) 3.07" (78mm) -
Page 10: Product & Accessories
Product & Accessories Please check if all the camera and accessories are included in the package. Camera Torx Wrench DC Plug Cable Test Video Cable Screw & Template Sheet Manual Plastic Anchor-4pcs NOTE : The ‘Test Video Cable’ is used to test the camera by connecting to a portable display. -
Page 11: Installation
Installation- Instructions Using the mounting template or your own camera, mark and drill the necessary holes to mount the bracket to a wall or ceiling. Pull a necessary wires through and make the proper connections. Use the four mounting screws to install the camera on the wall or ceiling. - Page 12 Installation- Instructions An LPR camera is designed to read a license plate only. When a license plate passes by the camera, the re ective lm on the plate will be re ected back to the camera which gives you the good clear shot of the plate. You will ONLY capture an image of the plate. US license plates need to be at least 216 pixels wide.
- Page 13 Installation- Instructions < 20° CAMERA ANGLE NO GREATER THAN 20 DEGREES FOR SIDE MOUNT INSTALLATIONS < 30° THE CAMERA SHOULD BE MOUNTED AT AN ANGLE NO GREATER THAN 30 DEGREES...
- Page 14 Connecting to DVR/Encoder Use the diagram below to connect to an Universal DVR or CRT Monitor properly. 12VDC/24VAC COAX CCTV Monitor EX-CON Test Video Output Monitor - Power Connection - 12VDC/24VAC Dual Voltage(Auto Polarity Detection and Protection) - All cameras are equipped with a test video output for on-site con guration.
-
Page 15: Control Board
Control Board Zoom Control Focus Control Joystick: Controls the OSD menu. EX-CON Test Video Connector: Video Output Connector for On-Site Con guration - OSD Joystick : The function setting and video output can be adjusted with OSD joystick. (default : HD-A) Image Mode Switches to HD-TVI mode when press OSD Joystick to left 5sec or longer. -
Page 16: Adjusting The Camera Angle
Adjusting the Camera angle Pan 360˚ Rotate 360˚ Tilt 90˚ Warning: - Do not rotate more than 360 ˚ - Do not unnecessarily twist too many times. -
Page 17: Menu Tree
OSD Menu Tree NOTE : The function setting can be adjusted with both switch (OSD joystick) and remote control through RS485 or UTC. In case of camera without OSD joystick, it can be adjusted with coaxial (UTC) only. PRIVACY EXPOSURE EXPO PRIV LENS... -
Page 18: Osd Menu - Exposure
OSD Menu Exposure LENS MANUAL : Manual mode supports the xed board lens or the manual iris lens. AUTO : AUTO mode sets the camera’s iris automatically. EXPOSURE LENS EXPO D&N FUNC MOTI PRIV EXIT LENS AUTO LEVEL BACKLIGHT BRIGHTNESS SHUTTER MANUAL DEFOG... - Page 19 OSD Menu Exposure BACKLIGHT HME HIGHLIGHT MASKING EXPOSURE HME allows objects to appear clearly on the screen by EXPOSURE masking extremely bright areas. To setup HME, set the EXPO D&N FUNC MOTI PRIV EXIT level and color. The lower the setting, the darker the LENS AUTO BACKLIGHT...
- Page 20 OSD Menu Exposure EXPOSURE DEFOG EXPO D&N FUNC MOTI PRIV EXIT LENS AUTO MODE AUTO BACKLIGHT LEVEL ____ RETURN DEFOG 3D DNR EXIT JUMP DRC ( DYNAMIC RANGE COMPRESSOR ) DRC enables dark areas in images to become more visible without overexposing the bright areas to create one perfect image.
-
Page 21: Osd Menu - Color
OSD Menu Color NOT USED COLOR EXPO D&N FUNC MOTI PRIV EXIT EXIT JUMP This is a License Plate Recognition Camera. As such, it has been programmed speci cally to register license plates only. For optimal results, this camera is set to B/W mode only. There is no Color mode on this camera. -
Page 22: Osd Menu - Day&Night
OSD Menu Day & Night DAY/NIGHT EXPO D&N FUNC MOTI PRIV EXIT SMART IR EXIT JUMP SMART IR 0 ~ 20 : Enable Smart IR and set the level. Higher values will make Smart IR stronger. -
Page 23: Osd Menu - Function
OSD Menu Function FUNCTION EXPO D&N FUNC MOTI PRIV EXIT SHARPNESS GAMMA 0.75 MIRROR FLIP EXIT JUMP SHARPNESS 0 ~ 10 - Sets the image sharpness. The higher the number, the sharper the image. GAMMA 0.45 ~ 0.75 - Select the desired gamma level. 0.75 is default setting. MIRROR / FLIP MIRROR : Re ects the camera horizontally. -
Page 24: Osd Menu - Motion
OSD Menu Motion The camera can detect movement and display an alarm on the screen. when movement is detected. MOTION DET WINDOW EXPO D&N FUNC MOTI PRIV EXIT MOTION WINDOW USE DET WINDOW WINDOW ZONE DET TONE DET H-POS DET V-POS MDRECT FILL DET H-SIZE SENSITIVITY... -
Page 25: Osd Menu - Privacy
OSD Menu Privacy You can hide some parts of the screen for privacy masking. A total of 16 di erent privacy masking zones are available. The cameras support square privacy masks or advanced polygon masks. PRIVACY EXPO D&N FUNC MOTI PRIV EXIT PRIVACY... -
Page 26: Osd Menu - Setup
OSD Menu Setup COMMUNICA SETUP CAM ID BAUDRATE 9600 EXPO D&N FUNC MOTI PRIV EXIT COMMUNICA SET DONE CAM TITLE RETURN IMAGE RANGE FULL FREQ 60Hz LANGUAGE INITIAL EXIT JUMP COMMUNICATION Adjust the camera’s ID and Baudrate. Default Protocol is Pelco-D. - CAM ID : Provide an ID number for the camera (0 ~ 255). -
Page 27: Osd Menu Setup
OSD Menu Setup SETUP EXPO D&N FUNC MOTI PRIV EXIT COMMUNICA CAM TITLE IMAGE RANGE FULL FREQ 60Hz LANGUAGE INITIAL EXIT JUMP FREQ When the camera’s image appears to have ickering issues, change the frequency value to adjust the image. LANGUAGE Select from the following: English (Default), Chinese, Chinese (S), Japanese, and Koran. - Page 28 OSD Menu EXIT EXIT EXPO D&N FUNC MOTI PRIV EXIT SAVE&EXIT EXIT SAVE & EXIT Exit the OSD menu after saving the recent changes. EXIT Exit the OSD menu without saving any changes.
-
Page 29: Troubleshooting
Troubleshooting Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the power supply and make sure the camera has the proper voltage and current. FOR OUT-OF-FOCUS VIDEO Check the Front case cover and the lens for dirt or ngerprints. -
Page 30: Speci Cations
Speci cations VIDEO Image Sensor 1/3” CMOS Sensors Active Pixels 1944(H) x 1092(V) Scanning System Progressive scan Freguency 60Hz / 50Hz Signal Technology 2.0 Megapixel Universal Synchronization Internal Resolution 1920x1080 (1080p30fps) F1.6 (30IRE): 0 Lux (B&W) Minimum Scene Illumination S/N Ratio 55dB Video Output BNC (Universal : HD-A/HD-TVI/HD-CVI/CVBS) - Page 31 Speci cations OPERATIONAL (CONT.) Digital Noise Reduction OFF / LOW / MIDDLE / HIGH Day and Night NIGHT Auto Gain Control 0 ~ 10 Motion Detection ON/OFF (4 Zones) Privacy Zones ON/OFF (16 Zones) Sharpness 0 ~ 10 Gamma 0.45 ~ 0.75 Remote Control Coaxial (UTC) ENVIRONMENTAL...
-
Page 32: Limits & Exclusions
This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 5436 W. Crenshaw Street... -
Page 33: Warranty Information
Warranty Information Digital Watchdog (referred to as “the Warranter”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warranter will repair or replace the unit with a new or refurbished product at its option at no charge. - Page 34 Notes...
- Page 35 Notes...
- Page 36 East Coast Headquarters Office: 5436 W Crenshaw St, Tampa, FL 33634 West Coast Headquarters Office: 16220 Bloomfield Ave., Cerritos, CA 90703 PH: 866-446-35951 FAX: 813-888-9262 www.Digital-Watchdog.com Technical Support: USA & Canada 1+ (866) 446-3595 International 1+ (813) 888-9555 French Canadian 1+ (514) 360-1309 Support Hours: Monday-Friday 9:00am to 8:00pm EST...
