Digital Watchdog Universal HD over Coax LPR DWC-LPR650U Quick Start Manual

Quick Start Guide

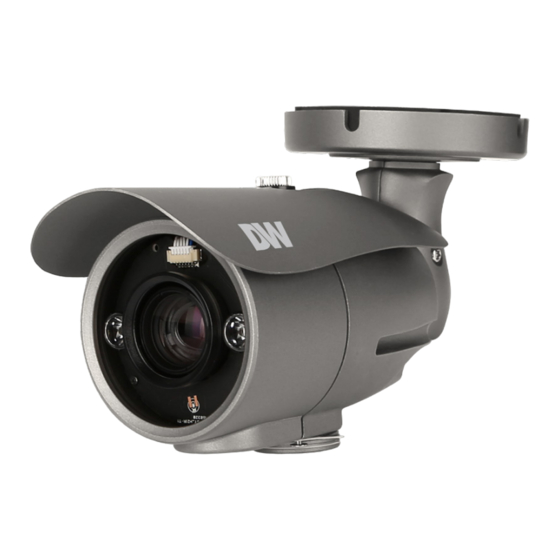

DW® Universal HD over Coax® LPR cameras
DWC-LPR650U
WHAT'S IN THE BOX
Screws and
Manual 1 plastic
anchors – 4pcs
Mounting
1 Star wrench
template
Sunshield cover &
Test Video Cable
Test video cable 1 DC plug cable
Moisture
absorber and
1 set
absorber guide
(recommended)
Screw & Moisture absorber &
Absorber Guide
NOTE: Download all your support materials and tools in one place.
1. Go to: http://www.digital-watchdog.com/resources.
2. Search your product by entering the part number in the
'Search by Product' search bar. Results for applicable
part numbers will populate automatically based on the
part number you enter.
3. Click 'Search'. All supported materials, including manuals
and quick start guide (QSGs) will appear in the results.
Attention: This document is intended to serve as a quick reference for the initial
setup. It is recommended that the user read the entire instruction manual for com-
plete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
digital-watchdog.com
Technical Support Hours:
9:00AM – 8:00PM EST, Monday through Friday
STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must withstand five times the camera weight.
2. Do not let the cables get caught in improper places or the electric line
cover can be damaged. This may cause a short or fire.
3. Install the moisture packet in the base of the camera's lens.
a. Remove the moisture absorber from the packaging.
b. Cut the card and folder along the dotted line.
c. Place the moisture absorber behind the camera's lens module. See
drawing for more information.
NOTE: The camera will generate enough heat to dry moisture
during operation. In most cases it will not need the
moisture absorber for more than the first day. In cases
where the camera can experience a moisture issue,
users must keep the moisture absorber in the camera.
The moisture absorber has an approximately 6-month
life cycle, varying depending on the environment.
WARNING: It is highly recommended that you install the moisture
absorber when mounting the camera. The moisture
absorber prevents moisture from being captured
inside the camera's housing, which may cause image
performance issues and damage the camera.
1 set
Please cut the card type absorber along
Please cut the card type absorber along
1
a dotted line, overlap and attach them
a dotted line, overlap and attach them according to the direction of the arrow.
according to the direction of the arrow.
1
4. Using the mounting template sheet or the camera itself, mark and drill
the necessary holes in the wall or ceiling.
STEP 2 – CABLING THE CAMERA
Pass the wires through the mount bracket and make all necessary
connections. Connect the BNC cable and power cables to the camera.
Power requirements Power consumption
DC12V (LED on): 6.12W
DC12V/AC24V dual voltage
AC24V (LED on): 5.7W
STEP 3 – MOUNTING AN LPR CAMERA
THE CAPTURED IMAGE SHOULD BE FILLED WITH THE FULL WIDTH OF THE VEHICLES
THE CAMERA SHOULD BE MOUNTED AT AN ANGLE NO GREATER THAN 30 DEGREES
CAMERA ANGLE NO GREATER THAN 20 DEGREES FOR SIDE MOUNT INSTALLATIONS
Quick Start Guide
>11.5ft
< 30
< 20
