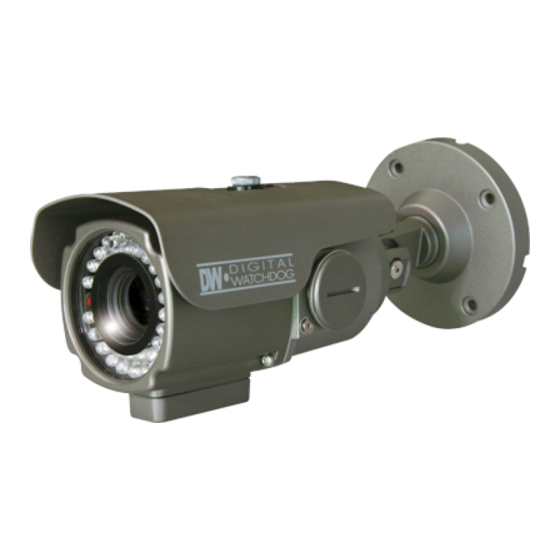

Digital Watchdog DWC-LPR650 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
5436 W Crenshaw St. Tampa, FL 33634
Tel: 866-446-3595 / 813-888-9555
Fax: 813-888-9262
www.Digital-Watchdog.com
technicalsupport@dwcc.tv
Technical Support Hours: Monday-Friday
8:30am to 8:00pm Eastern Time

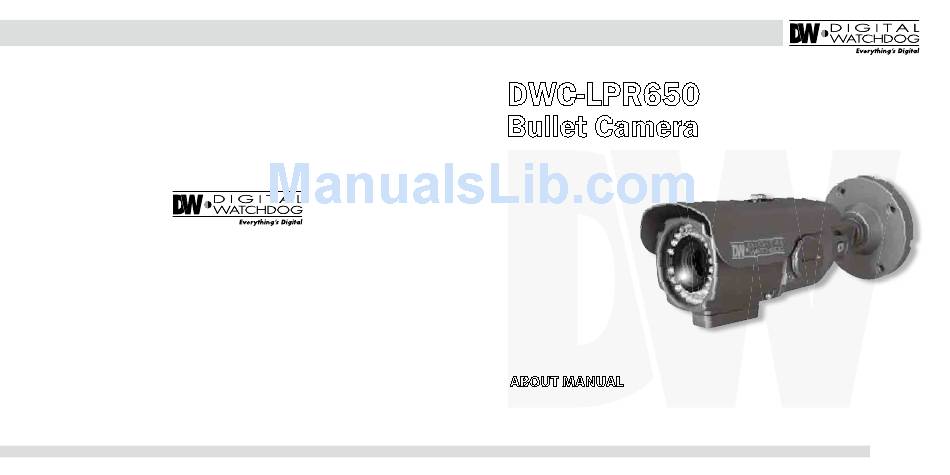

DWC-LPR650

Bullet Camera

User Manual

ABOUT MANUAL
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
12232010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DWC-LPR650 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digital Watchdog DWC-LPR650

Summary of Contents for Digital Watchdog DWC-LPR650

  • Page 1: Bullet Camera

    DWC-LPR650 Bullet Camera User Manual 5436 W Crenshaw St. Tampa, FL 33634 Tel: 866-446-3595 / 813-888-9555 Fax: 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours: Monday-Friday 8:30am to 8:00pm Eastern Time ABOUT MANUAL Before installing and using the camera, please read this manual carefully.
  • Page 2 PRECAUTIONS TROUBSHOOTING Do not open or modify. Before sending your camera for repair, check the following or contact our technical specialist. ■ Do not open the case except during maintenance and installation, ■ No VIDEO for it may be dangerous and can cause damages. Do not put objects into the unit.

  • Page 3: Dimensions In Millimeters

    DIMENSIONS IN MILLIMETERS * CONNECTION * 230.0 DC12V / AC24V BNC JACK VIDEO(yellow) AC 24V or DC 12V BLACK 5mm TWIST SORDERING 122.0 96.5 (OPTION) CABLE LENGTH STANDARD : 13.78 (350.0mm) 4.2 96.7 300.0 78.0 68.0 Front View Bracket Rear View CAUTION : CHECK THE POLARITY WHEN USING A DC12V OR AC24V POWER SUPPLY.

  • Page 4: Camera Setting Angle

    CAMERA SETTING ANGLE * EXTERNAL CONTROL BOARD * 360˚ ① OSD Control LEFT RIGHT DOWN 360˚ ① CON1 2nd Video Out IR LED Brightness 90˚ ② Adjustable 122.0 FUNCTIONAL OF CONTROL BOARD ATTENTION 1. SW: Functional Control OSD (On-Screen Display 1.

  • Page 5: Lens Zoom & Focus Adjustment

    LENS ZOOM & FOCUS ADJUSTMENT * INSTALLATION & REQUIREMENT * Maximum Wire Distance Wire Gauge 12VDC 24VAC 24 AWG 80feet 323feet 22 AWG 128feet 513feet 20 AWG 203feet 815feet 18 AWG 323feet 1295feet 16 AWG 514feet 2056feet 14 AWG 816feet 3264feet 12 AWG 1295feet...
  • Page 6 EXPOSURE FUNCTION LENS DC (0~100) / MANUAL / VIDEO. (DC Lens is recommended.) MIRROR OFF/MIRROR/V-FLIP/ROTATE 1/60 / FLK / 1/250 ~ 100000 / SENS-UP x2 ~ x250 SHARPNESS 0 ~ 31 SHUTTER FLK (Flickerless);1/1000sec ~ 1/2000sec is recommended for License 0.05 ~ 1.00 GAMMA Plate Application only.

  • Page 7: Warranty Information

    WARRANTY INFORMATION * PRIVACY OFF / ON Digital Watchdog (referred to as “the Warrantor”) AREA SELECT: 1~7 / AREA DISPLAY: OFF / ON PRIVACY warrants the Camera Series against defects in LEFT / RIGHT / WIDTH / UP / DOWN materials or workmanship as follows.

  • Page 8: Limits And Exclusions

    LIMITS AND EXCLUSIONS * SPECIFICATIONS * There are no express warranties except as listed above. Model DWC-LPR650 The Warrantor will not be liable for incidental or consequential Camera TYPE License Plate Recognition Camera damages (including, without limitation, damage to recording media)
