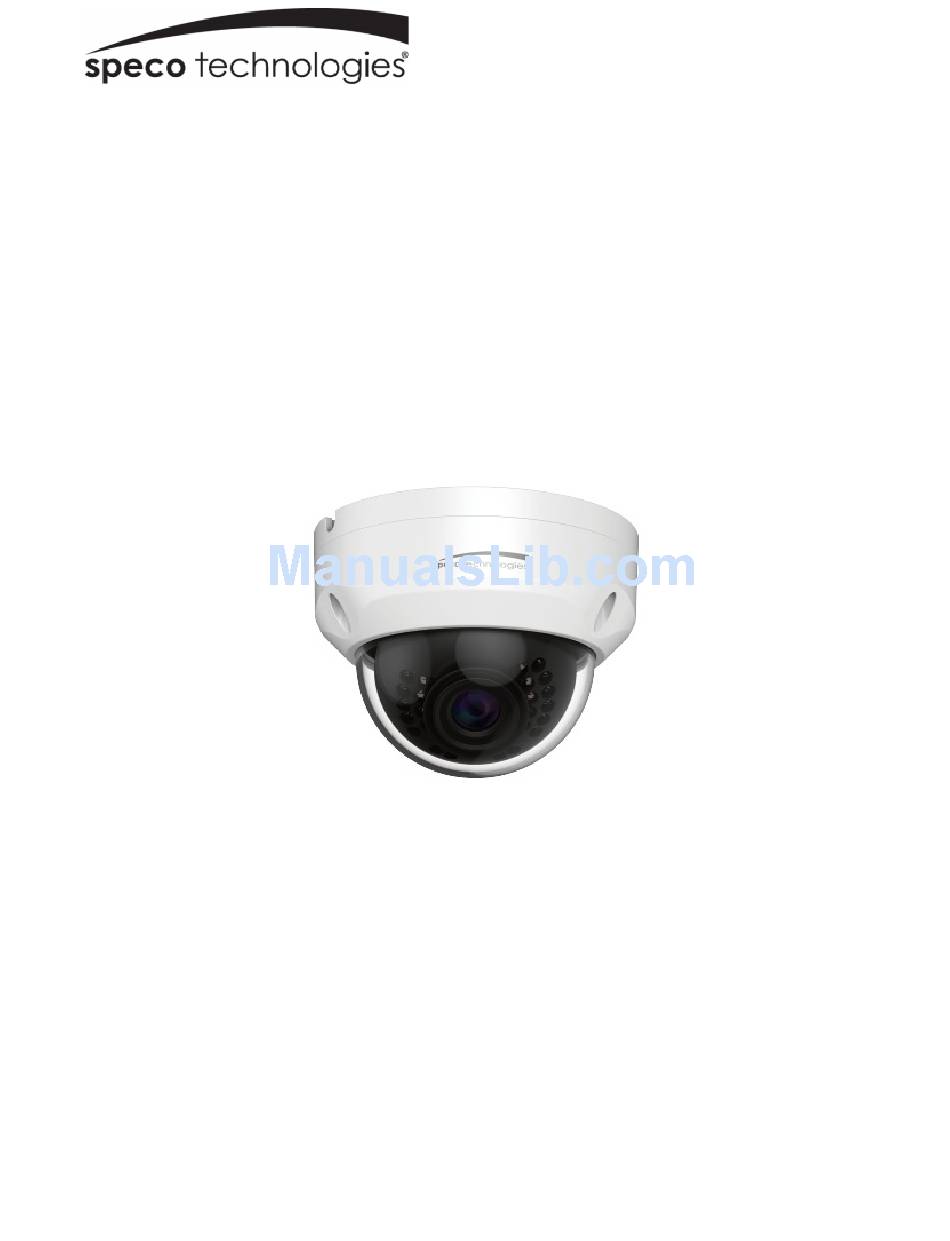

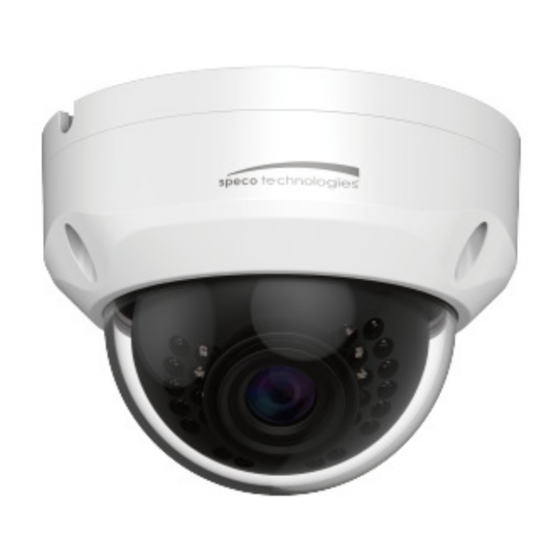

- Page 1 Quick Start Guide 4MP Vandal Dome Fixed Lens IP Camera O4D1 Version 1.1.1...
- Page 2 Thank you for purchasing this Network camera! This manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, please contact Speco Technologies Technical Support.
- Page 3 Important Safeguards and Warnings E lectrical safety ． ． ． ． All installation and operation here should conform to local electrical safety codes. Use a certified/listed 12VDC Class 2 power supply only. Please note: Do not connect two power supplying sources to the device at the same time; it may result in device damage! The product must be grounded to reduce the risk of electric shock.
- Page 4 Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included. Contact your rep or Speco customer service department immediately if something is broken or missing in the package. Accessory Name...
- Page 5 Table of Contents Physical Specifications ......................1 Components ............................1 Dimensions ..............................2 Alarm Setup ............................... 2 Device Installation ......................5 Installation Steps ............................5 Micro SD Card Installation ........................7 IP Scanner ..........................8 Overview ............................8 Operation ............................8 Web Operation ........................
-
Page 6: Physical Specifications
1 Physical Specifications 1.1 Components Note: The following figure is for reference only, which is used to indicate the components and the functions. Refer to the following figure for component structure. See Figure 1-1. Figure 1-1 Component structure Please refer to the following table for detailed information. Port Port Name Note... -
Page 7: Dimensions
See below for detailed information regarding the I/O. Port Port Port name Function Description Name Sequence ALARM_IN1 Sensor input I/O Port ALARM_OUT1 Relay output ALARM_GND Connect ground 1.2 Dimensions Please refer to the following figure for dimension information. The unit is in mm. See Figure1-2. Figure1-2 1.3 Alarm Setup... -
Page 8: Step
Figure1-3 Alarm input, output description: Alarm input, output description: Step 1 Step 1 Connect alarm input device Connect alarm input device to the alarm input of the I/O cable. Step 2 Connect alarm output device to the alarm output of Connect alarm output device to the alarm output of the I/O cable. - Page 9 When alarm output is OC, it needs to increase pull-up resistance externally to work normally; output signal is high and low level. After external pull-up resistance is increased, the default of output signal is high level, and it switches to low level when there is alarm output. The working current of alarm output port is recommended as <= 10mA.
-
Page 10: Device Installation
2 Device Installation 2.1 Installation Steps Note: Before installation, please make sure the installation surface can support a minimum of 3 times the weight of the camera Figure 2-1 Device installation illustration Step 1 Use inner hex wrench in the accessories bag to open dome enclosure by unfastening three inner hex screws on enclosure. - Page 11 Adjust the device installation pedestal to the proper position and then pull cable through the exit hole on Installation surface. Make direction of TOP sign same as it is on the installation template. Line up the three screw holes in the device pedestal to the three plastic expansion bolt holes in the installation position.
-
Page 12: Micro Sd Card Installation
2.2 Micro SD Card Installation Note: Please disconnect the device before installing the micro SD card. Step 1 Find the micro SD card slot in figure 2-2; open the slot according to the direction in figure 2-3. Step 2 Adjust the card to the proper direction and install it into the slot. Step 3 According to the direction in figure 2-4, close the micro SD card slot and keep it locked. -
Page 13: Ip Scanner
3 IP Scanner 3.1 Overview IP Scanner can search for the device on the local network. IP Scanner can search for the device on the local network. Please note that only devices that are on the same subnet can be discovered. that only devices that are on the same subnet can be discovered. -
Page 14: Web Operation
4 Web Operation This device supports viewing and management via a web browser on a PC. This device supports viewing and management via a web browser on a PC. 4.1 Login and Main Interface Login and Main Interface Open the browser and input network camera address in the address bar or double click the Open the browser and input network camera address in the address bar or double click the Open the browser and input network camera address in the address bar or double click the device in IP Scanner.
