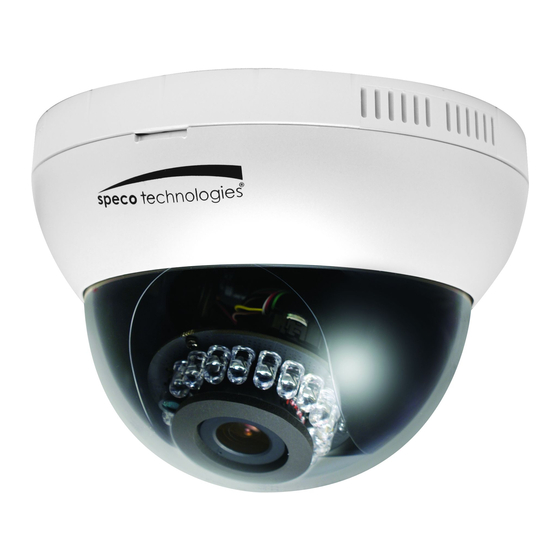

  • Page 1 ’ ’ ONSIP O2DP8 Rev.1.2 (June, 2013)
  • Page 2 ’ ’ Directions Be careful not to cause any physical damage by dropping or throwing ONSIP O2DP8. Especially keep the device out of reach from children. Do not disassemble ONSIP O2DP8. No after service is assumed when disassembled. Use only the power adapter provided with ONSIP O2DP8.
  • Page 3 ’ ’ Caution Any changes or modifications to this device could void the warranty. Revision History Date Revision Details May 13 , 2013 First manual revision creation. May 24 , 2013 Text revision June, 19 , 2013 Updated package contents, drawings Rev.1.2 (June, 2013)

  • Page 4: Table Of Contents

    Contents ................... 4 1. Introduction ................... 5 1.1. Overview ....................5 1.2. Specification ....................6 1.3. Applications of ONSIP O2DP8 ............... 8 2. Product Description................. 9 2.1. Contents ....................9 2.2. Product Preview ..................10 2.3. Physical description .................. 11 2.4.

  • Page 5: Introduction

    It enables real time transmission of synchronized video of up to 1080p and audio data. Remote clients can connect to ONSIP O2DP8 for the real time video/audio data through various client solutions running on PC, PDA or mobile phones. Real time 2-way communication is available through bidirectional audio communication feature.

  • Page 6: Specification

    Upgrade Firmware upgrade over IP network Administration Remote administration over IP network Web Viewer Simple viewing over internet explorer Client & Viewer Speco-NVR Standard VMS software Dynamic IP support DDNS support Supported Video/Audio stream encryption ID and Password protection Security...
  • Page 7 ’ ’ Daylight savings Active-X SDK support HTTP Rev.1.2 (June, 2013)

  • Page 8: Applications Of Onsip O2Dp8

    ’ ’ 1.3. Applications of ONSIP O2DP8  Security surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities, military, etc.)  Remote monitoring (hospitals, kindergartens, traffic, public areas, etc.)  Teleconference (Bi-directional audio conference). Remote Learning, Internet broadcasting ...

  • Page 9: Product Description

    2. Product Description 2.1. Contents The product package contains followings: Contents Description Remarks IP camera ONSIP ONSIP O2DP8 O2DP8 main unit Tools and Mounting Screws L-wrench, Screws(M4x16L 4EA, 4x16L 4EA) Software & User’s Guide Quick Reference Guide Quick installation guide...

  • Page 10: Product Preview

    ’ ’ 2.2. Product Preview 2.2.1. Preview VMS Software ONSIP O2DP8 IP-Installer (Speco-NVR) PC software to view and record the A/V streaming data transmitted (Megapixel) IP Camera PC software to allocate an IP from IP camera. O2DP8 address to the IP Camera...

  • Page 11: Physical Description

    Figure 2-1. External view of ONSIP O2DP8 2.4. Functional Description  DC 12V: Power input for supplying 12V DC power. Caution: If ONSIP O2DP8 is powered by PoE, do not plug in DC Jack with active DC power into DC power connector. Rev.1.2 (June, 2013)
  • Page 12 100Mbps Ethernet connector (RJ-45) with PoE standard (802.3af). 2 LEDs on the Ethernet connector show the status of ONSIP O2DP8 as the following: Status LED (Dual Color - Red/Green): It will be lit in green or red depending on the status.
  • Page 13 ’ ’  SNS IN: Examples of sensing devices are infrared sensors, motion sensors, heat/smoke sensors, magnetic sensor, etc. Connect the two wires of the sensors to “SNS In”. The sensor type (NC/NO) can be set in Administrative mode. Multiple sensor devices can be connected in parallel. Photo Coupler NO/NCType Open CollectorType...
  • Page 14 A switch provided for returning the IP camera to factory default state. Open the dome cover to access the switch. Press the switch for a few seconds while power is applied. Figure 2-5 Factory Default switch of ONSIP O2DP8 Caution: Restoring the factory default will erase all settings.

  • Page 15: Getting Started

    Brief information for initial operation of ONSIP O2DP8 is provided in this chapter. 3.1. PC Requirement Audio/Video streaming data received from ONSIP O2DP8 can be displayed or stored in a PC running client programs. Minimum requirement of the PC is described below:...

  • Page 16: Quick Installation Guide

    1) Prepare a PC to run programs for the installation and video connection (PC is needed to assign IP address to ONSIP O2DP8) 2) In case of using PoE, connect the PC and ONSIP O2DP8 to the network using one of the following ways.
  • Page 17 ’ ’ 2. Install Speco-NVR Speco-NVR is a multi-channel VMS program for to IP camera or Video server. Install Speco-NVR on remote PC to connect to these products. It is needed to assign connection information to Speco-NVR program before connection.
  • Page 18 ’ ’ Click on the field in (3) for sorting and rearranging the list. Select network mode that best suits from the drop down list in (5). You can choose either Static or ADSL and Auto (DHCP), respectively. If ADSL and Auto are selected, the fields in (6) are deactivated.
  • Page 19 3. Remote video connection to ONSIP O2DP8 1) Connection through Web Viewer Web Viewer offers the simplest way of video connection to ONSIP O2DP8. For video connection, enter the IP address of ONSIP O2DP8 in the URL window of Internet Explorer as : Port 80 (default) can [e.g.] Port 80...
  • Page 20 SAVE button. You can see the live video when you click the live view button as below. When you exit Speco-NVR, you have to input the ID/PW, admin/1234. Details for Speco-NVR can be found in [Speco-NVR User’s Guide].
  • Page 21 ’ ’ 4. Additional settings through connection to the Admin Page All the parameters of the camera are factory default out of the box. For a more sophisticated target application, parameters need to be changed through the admin page. The admin page can be connected through ”http://IP_address:HTTP_port_number”/admin.htm ID and password of the administrator are required.

  • Page 22: Trouble Shooting

    If PoE is not applied, the power and network connection should be made through separate cables. It is recommended to use DC adapter supplied by Speco Technology for the feeding of the power. In case of replacing the DC power supply, make sure that the power supply meets with the power requirement of the IP camera to prevent damage or malfunction.

  • Page 23: Cannot Connect To The Video

    ’ ’ 4.2. Cannot connect to the Video Check the status of the network connection through PING test. Try the following on your PC: Start > Run > Cmd > Ping IP address (Ex : Ping 172.16.42.51) If “Reply from ~”...

  • Page 24: Windows Vista Or Windows 7

    4.3. Windows Vista or Windows 7 Windows Vista and Windows 7 users need to configure UAC (User Access Control) and Privilege Level for proper recording and still video capture in Speco-NVR and Web Viewer. <Windows Vista> 1. UAC (User Access Control) configuration 1) Double-click “User Accounts”...
  • Page 25 ’ ’ <Windows 7> 1. UAC (User Access Control) configuration 1) Double-click “User Accounts” in control panel 2) Double-click “Change User Account Control setting” 3) Set to “Never notify” Rev.1.2 (June, 2013)
  • Page 26 ’ ’ 2. Privilege Level Control 1) Select “NVR” icon on the desktop 2) Click right mouse button and select “properties” 3) Check “Privilege Level” in “Compatibility” tab Rev.1.2 (June, 2013)

  • Page 27: Technical Assistance

    ’ ’ 4.4. Technical Assistance If you need any technical assistance, please contact your dealer. For immediate service please provide the following information. 1. Model name 2. MAC address and Registration number 3. Purchase date 4. Description of the problem 5.
