Metra Electronics 99-7631B Installation Instructions Manual

Nissan titan 2017-up, titan xd 2016-up
Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual

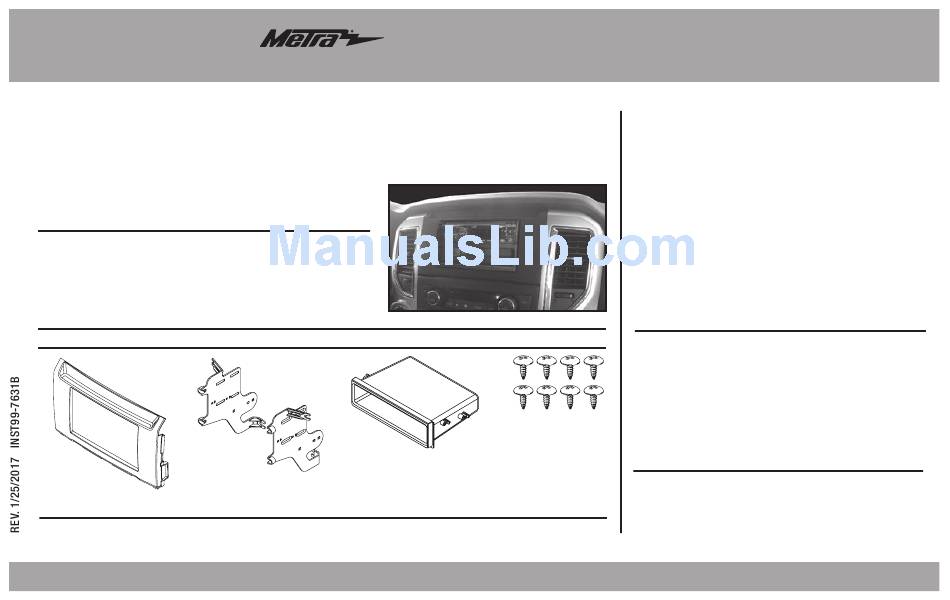

INSTALLATION INSTRUCTIONS FOR PART 99-7631B
Nissan Titan 2017-up, Titan XD 2016-up
KIT FEATURES
• ISO DIN radio provision with pocket
• Painted matte black
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (8) #8 x 3/8" Phillips screws
A
B
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-7552 Antenna Adapter: • 40-NI12
METRA – The World's best kits.
99-7631B
C
metraonline.com
®
Dash Disassembly ..............................................2-5
Kit Assembly .......................................................... 6
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
D
• 12mm socket wrench • T-20 Torx driver
CAUTION!
and especially air bag indicator lights must be connected before
cycling the ignition. Also, do not remove the factory radio with
the key in the on position, or while the vehicle is running.
© COPYRIGHT 2017 METRA ELECTRONICS CORPORATION
Table of Contents
All accessories, switches, climate controls panels,

Advertisement

loading
Need help?

Need help?

Do you have a question about the 99-7631B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Metra Electronics 99-7631B

Summary of Contents for Metra Electronics 99-7631B

  • Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7631B Table of Contents Nissan Titan 2017-up, Titan XD 2016-up 99-7631B Dash Disassembly ..........2-5 Kit Assembly ............6 KIT FEATURES • ISO DIN radio provision with pocket • Painted matte black KIT COMPONENTS TOOLS REQUIRED • A) Radio trim panel • B) Radio brackets • C) Pocket • D) (8) #8 x 3/8” Phillips screws •...

  • Page 2: Dash Disassembly

    99-7631B Dash Disassembly 1. Remove the (2) Phillips screws Upper screws securing the knee bolster panel below the steering column, and then unclip the panel. It is not necessary to completely remove the panel. (Figure A) 2. Unclip and remove the passenger door sill and kick panel.
  • Page 3 99-7631B Dash Disassembly 4. Unclip and remove the (2) side trim panels at the front of the center console, and then remove the (1) Phillips screw exposed behind each panel. Tip: Pull out on the front sides of the console to release for later steps.
  • Page 4 99-7631B Dash Disassembly 7. Unclip and remove the trim panel where the center console and the dashboard meet, and then remove the (2) Phillips screws exposed. (Figure H) 8. Slide the center console back, and then unclip and remove the vent panels from each side of the radio/ climate control panel.
  • Page 5 99-7631B Dash Disassembly 10. Remove the (2) Phillips screws securing the climate control panel and then remove. (Figure K) 11. Remove the (4) Phillips screws securing the radio and then remove. (Figure L) 12. Slightly loosen the (8) T-20 Torx screws securing the radio brackets.

  • Page 6: Kit Assembly

    99-7631B Kit Assembly 1. Attach the radio brackets to the 5. Slide the radio into the completed radio trim panel using the assembly, and then secure it to the (4) #8 x 3/8” Phillips screws assembly using the screws supplied provided.
  • Page 7 99-7631B...
  • Page 8 INSTALLATION INSTRUCTIONS FOR PART 99-7631B IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated.
  • Page 9 INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 99-7631B Indice Nissan Titan 2017 y mas, Titan XD 2016 y mas 99-7631B Desmontaje del tablero ..........Ensamble del kit ............ 3 CARACTERÍSTICAS DEL KIT • Provisión de radio ISO DIN con cavidad • Pintura negra mate...
  • Page 10 99-7631B Desmontaje del tablero 1. Quite los (2) tornillos Phillips que Tornillos superiores sujetan el panel del protector de rodillas debajo de la columna de dirección, luego desenganche el panel. No es necesario quitar el panel por completo. (Figura A) 2.
  • Page 11 99-7631B Desmontaje del tablero 4. Desenganche y quite los (2) paneles de la moldura lateral en la parte frontal de la consola central, y luego quite (1) tornillo Phillips expuesto detrás de cada panel. Sugerencia: jale los lados frontales de la consola para liberar en pasos siguientes.
  • Page 12 99-7631B Desmontaje del tablero 7. Desenganche y quite el panel de la moldura donde se unen la consola central y el tablero, y luego quite los (2) tornillos Phillips expuestos. (Figura H) 8. Deslice de vuelta la consola central y luego desenganche y quite los...
  • Page 13 99-7631B Desmontaje del tablero 10. Quite los (2) tornillos Phillips que sujetan el panel de control del clima y quite. (Figura K) 11. Quite los (4) tornillos Phillips que sujetan el radio y quite. (Figura L) 12. Afloje ligeramente los (8) tornillos Torx T-20 que sujetan los soportes del radio.
  • Page 14 99-7631B Ensamble del kit 1. Una los soportes del radio al panel 5. Deslice el radio en el ensamble de la moldura del radio con los terminado y luego sujételo (4) tornillos Phillips #8 de 3/8” al ensamble con los tornillos suministrados.
  • Page 15 99-7631B...
  • Page 16 INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 99-7631B IMPORTANTE Si tiene dificultades con la instalación de este producto, llame a nuestra línea de soporte técnico al 1-800-253-TECH. Antes de hacerlo, revise las instrucciones por segunda vez y asegúrese de que la instalación se haya realizado exactamente como se indica en las instrucciones.
