INSTALLATION INSTRUCTIONS FOR PART 99-7604

99-7604/99-7604B/

99-7604T

KIT FEATURES

• DIN Radio Provision

• ISO Mount Radio Provision

• Double DIN Radio Provision

• Stacked ISO Mount Units Provision

• Painted To Match Factory Dash

99-7604= SILVER

99-7604B= BLACK

99-7604T=TAN

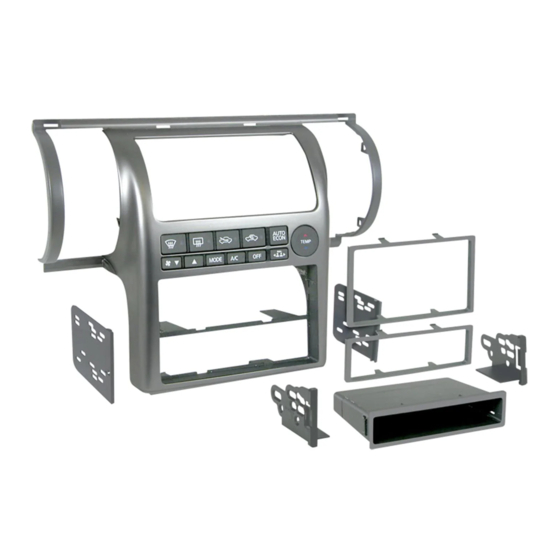

KIT COMPONENTS

A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Pocket • E) Double DIN Brackets

• F) Double DIN Trim Plate • G) Top Radio Housing Bracket • H) (2) #8 X 3/8" Phillip Screws

• I) Climate Control Cable

Hook Tool • Panel Removal Tool • (2) Small Flat Blade Screwdrivers

1-800-221-0932

APPLICATIONS

INFINITI G35

2003-2004

TOOLS REQUIRED:

• Phillips Screwdriver • Socket set

www.metraonline.com

Table of Contents

Need help?

Do you have a question about the 99-7604 and is the answer not in the manual?

Questions and answers

Summary of Contents for Metra Electronics 99-7604

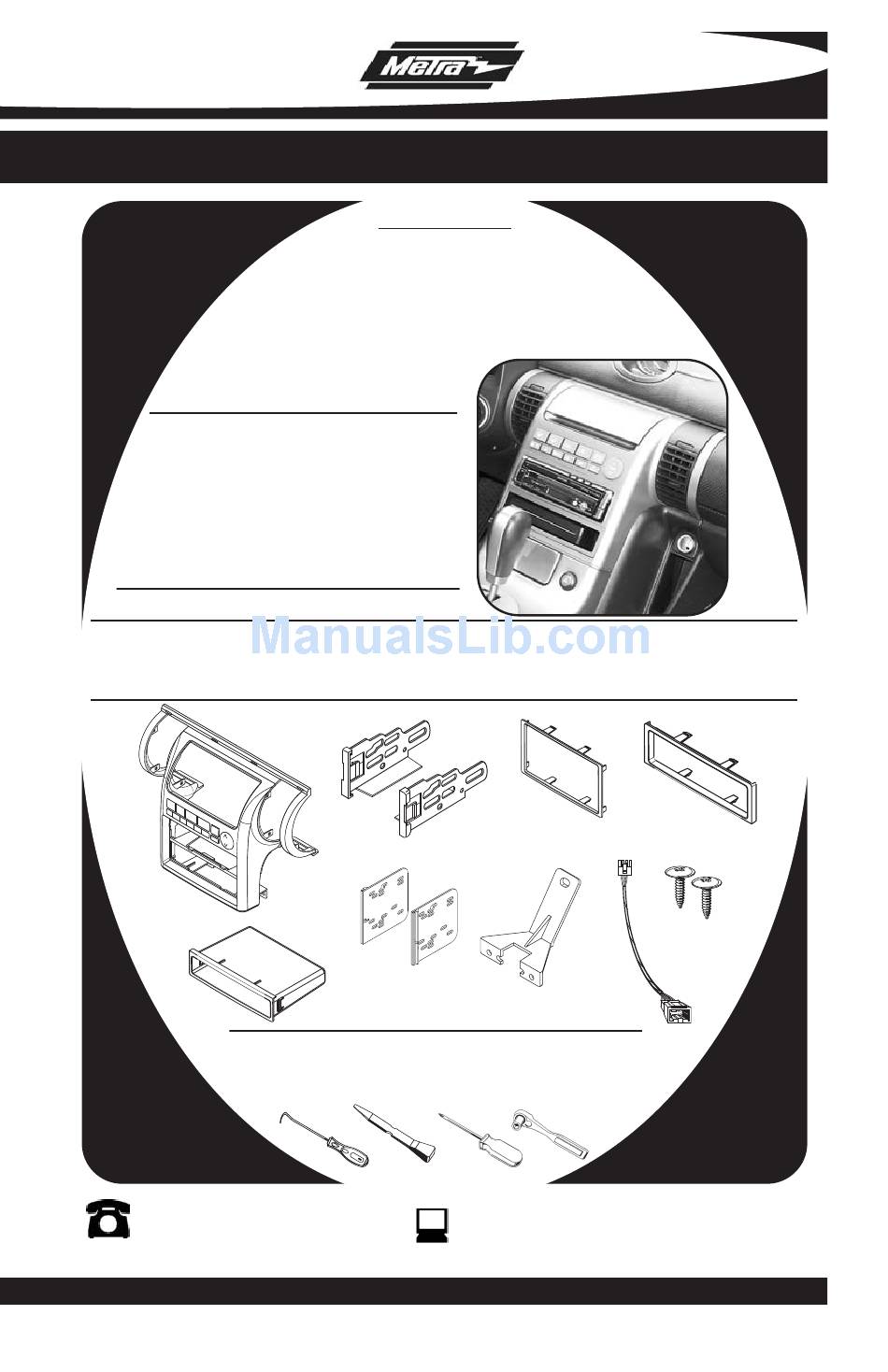

Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7604 INFINITI G35 99-7604/99-7604B/ 99-7604T KIT FEATURES • DIN Radio Provision • ISO Mount Radio Provision • Double DIN Radio Provision • Stacked ISO Mount Units Provision • Painted To Match Factory Dash 99-7604= SILVER 99-7604B= BLACK...
Page 2: Table Of Contents
Final Assembly ......... . 9 *Note: Refer also to the instructions included with the aftermarket radio. 99-7604 NOWLEDGE IS Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry.
Page 3: Infiniti G35 2003-2004
(Figure D) Unclip and remove the passenger side kick panel then remove (1) Phillips screw exposed behind the panel on bottom right side of glove box. (Figure E) Continue on page 2 . 99-7604 DASH DISASSEMBL Y...
Page 4 Remove (2) Phillips screws securing the clock and clock bracket. Unplug and remove clock and bracket. (Figure I) 13 Remove (1) Phillips screw at the top of the radio/climate control panel. (Figure J) Continue on page 3. 99-7604 DASH DISASSEMBL Y...
Page 5 15 Remove (6) Phillips screws securing the radio chassis to the factory panel and remove radio chassis to access the factory pocket. 99-7604 DASH DISASSEMBL Y Remove (2) Phillips screws securing the pocket to the radio/climate con- trol panel and remove pocket. (Retain pocket for use during kit assembly.)
Page 6: Kit Assembly
Connect the black end of the climate control cable to the climate controls in the radio housing and connect the other end of the cable to the factory climate control harness during final assembly. Continue to kit assembly. 99-7604 KIT PREPARATION KIT PREPARATION...
Page 7: Din Radio Provision With Pocket
Housing and secure by bending the metal locking tabs outward. (Figure A) Slide the aftermarket radio into the cage until it snaps into place. (Figure B) Snap the pocket into the radio housing. (Figure C) Continue to final assembly. 99-7604 KIT ASSEMBL Y...
Page 8: Iso Mount Radio Provision With Pocket
Slide the radio into the radio housing until it snaps into place. (Figure B) Snap the ISO trim plate onto the front of the Radio Housing. (Figure B) Snap the pocket into the radio housing. (Figure C) Continue to final assembly. 99-7604 KIT ASSEMBL Y...
Page 9: Double Din Radio Provision
Slide the Double DIN radio into the bracket/trim plate assembly and secure the radio to the assembly using the screws supplied with the radio. (Figure C) Snap the Double DIN trim plate into the radio housing. (Figure C) Continue to final assembly. 99-7604 KIT ASSEMBL Y...
Page 10: Stacked Iso Units Provision
Slide the stacked ISO units into the bracket/radio housing assembly and secure the units to the kit using the screws supplied with the units. (Figure C) Snap the Double DIN trim plate into the radio housing. (Figure C) Continue to final assembly. 99-7604 KIT ASSEMBL Y...
Page 11: Final Assembly
*NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications. 99-7604 FINAL ASSEMBL Y (A) Strip wire ends back 1/2" B) Twist ends together...

This manual is also suitable for:

99-7604b 99-7604t
