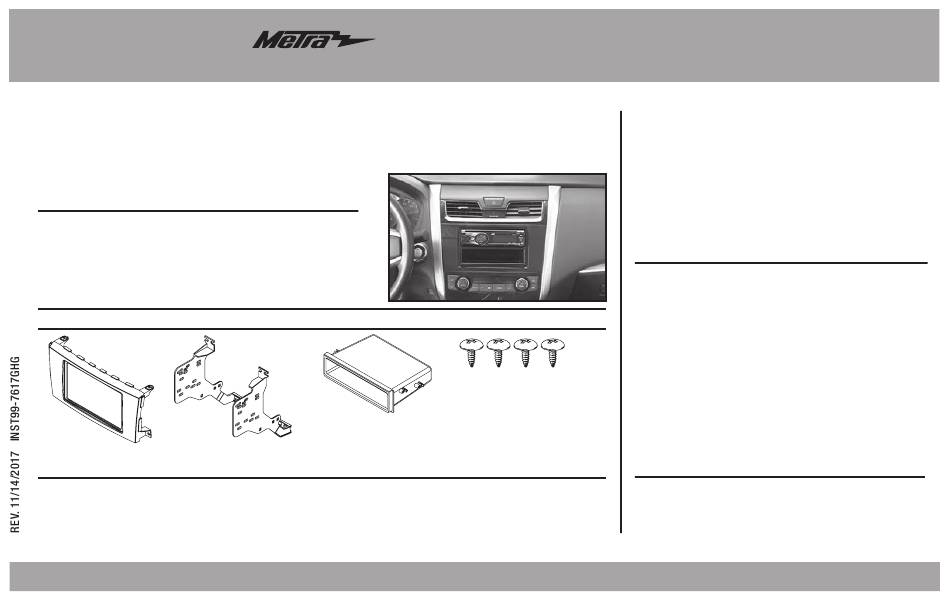

Installation instructions for part 99-7617HG

Nissan Altima

KIT FEATURES

• ISO DIN radio provision with pocket

• Painted high gloss gray

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8" Phillips screws

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • 70-7552

Antenna Adapter: • 40-NI12

Steering wheel control interface: • ASWC-1 (sold separately)

METRA - The World's best kits

2013-2015

(Sedan)

99-7617GHG

metraonline.com

U.S. PATENT # D757,707
