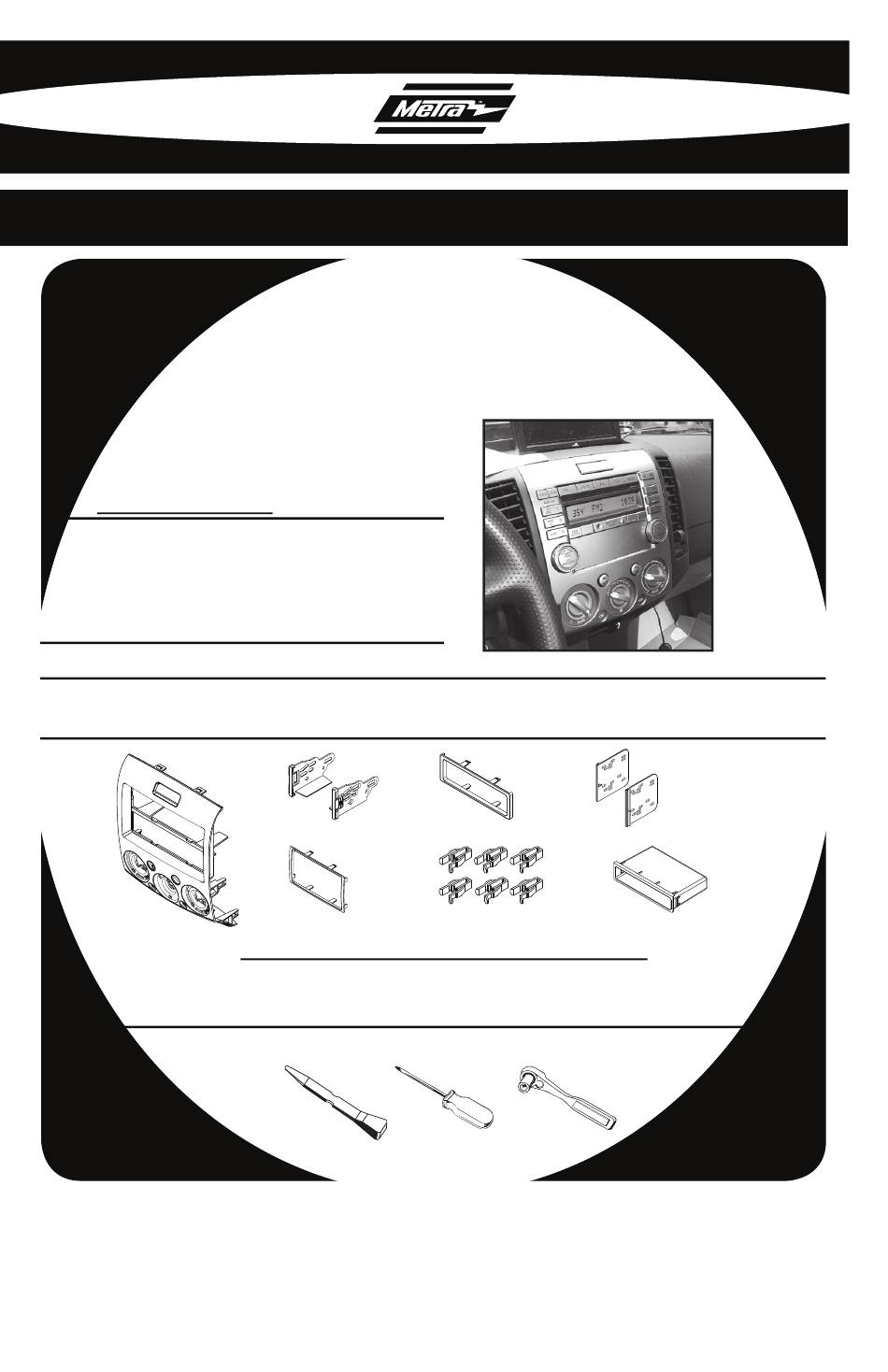

INSTALLATION INSTRUCTIONS FOR PART 99-7517S
99-7517S
KIT FEATURES
•
DIN Head Unit Provisions With Pocket
•
ISO DIN Head Unit Provision With Pocket
•
DDIN Head Unit Provisions
•
ISO Stacked Head Unit Provisions
•
Painted Silver To Match Factory Finish
KIT COMPONENTS
• A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) DDIN Brackets
• E) DDIN Trim Plate • F) (6) Panel Clips • G) Pocket
A
• Panel Removal Tool • Phillips Screwdriver • Socket Wrench
APPLICATIONS
MAZDA BT-50
2006-UP
B
E
WIRING & ANTENNA CONNECTIONS (Sold Separately)
• 70-7903 - Mazda 2001-Up Wire Harness
TOOLS REQUIRED
C
D
F
G
Advertisement
Related Manuals for Metra Electronics 99-7517S
Summary of Contents for Metra Electronics 99-7517S
-
Page 1: Kit Features
INSTALLATION INSTRUCTIONS FOR PART 99-7517S APPLICATIONS MAZDA BT-50 2006-UP 99-7517S KIT FEATURES • DIN Head Unit Provisions With Pocket • ISO DIN Head Unit Provision With Pocket • DDIN Head Unit Provisions • ISO Stacked Head Unit Provisions • Painted Silver To Match Factory Finish KIT COMPONENTS •... - Page 2 99-7517S DASH DISASSEMBLY MAZDA BT-50 2006-UP Remove three climate control knobs and two Phillips screws from behind. (Fig. A) Using a panel removal tool, unsnap and remove radio/climate panel. (Fig. B) Remove the fresh air and recirculation air stickers from the...
- Page 3 99-7517S KIT PREPARATION MAZDA BT-50 2006-UP Attach the (6) panel clips to the 99-7517S radio housing. (Fig. A)
-
Page 4: Din Head Unit Provision
99-7517S KIT ASSEMBLY DIN HEAD UNIT PROVISION Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs down. (Fig. A) Snap the pocket into the bottom opening of the radio housing. (Fig. B) Slide the aftermarket head unit into the cage and secure. -
Page 5: Iso Din Head Unit Provision
99-7517S KIT ASSEMBLY ISO DIN HEAD UNIT PROVISION Mount the ISO Brackets to the head unit with the screws supplied with the unit. (Fig. A) Snap the pocket into the bottom opening of the radio housing. (Fig. B) Slide the head unit into the radio opening until the side clips engage. -
Page 6: Ddin / Stacked Iso Din Head Unit Provision
99-7517S KIT ASSEMBLY DDIN / STACKED ISO DIN HEAD UNIT PROVISION Cut and remove the center bar from the radio housing. (Fig. A) Snap the Double DIN brackets to the inside edge of the Double DIN trim plate. (Fig. B)
