INSTALLATION INSTRUCTIONS FOR PART 99-7609G
METRA. THE WORLD'S BEST KITS.™
1-800-221-0932
© COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION
metraonline.com
INSTALLATION INSTRUCTIONS FOR PART 99-7609G
APPLICATIONS
INFINITI I30 2000-2001
INFINITI I35 2002-2004
99-7609G
KIT FEATURES
• DIN Head Unit Provision w/ Pocket
• ISO DIN Head Unit Provision w/ Pocket
• DDIN Head Unit Provision
• ISO Stacked Head Unit Provision
• Painted Gray to Match Factory Color & Finish
KIT COMPONENTS

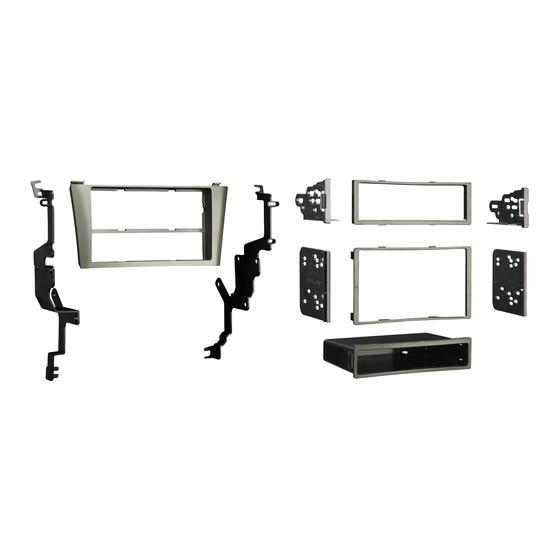

• A) Radio Housing • B) Radio Housing Brackets • C) ISO Brackets • D) ISO Trim Plate
• E) DDIN Brackets • F) DDIN Trim Plate • G) Snap-In Pocket • H) (4) PPH38 Screws
A
B
C
WIRING & ANTENNA CONNECTIONS
G
(Sold Separately)
WIRE HARNESS:
• 70-7551 1995-up Nissan Amp Integration Harness
ANTENNA ADAPTER:
• 40-NI10 Nissan to Aftermarket Radio Antenna Adapter
TOOLS REQUIRED
• Phillips Screwdriver • Panel Removal Tool • Socket Wrench
