Metra Electronics 99-7892 Installation Instructions Manual

ALL VEHICLES
4
Fig. A

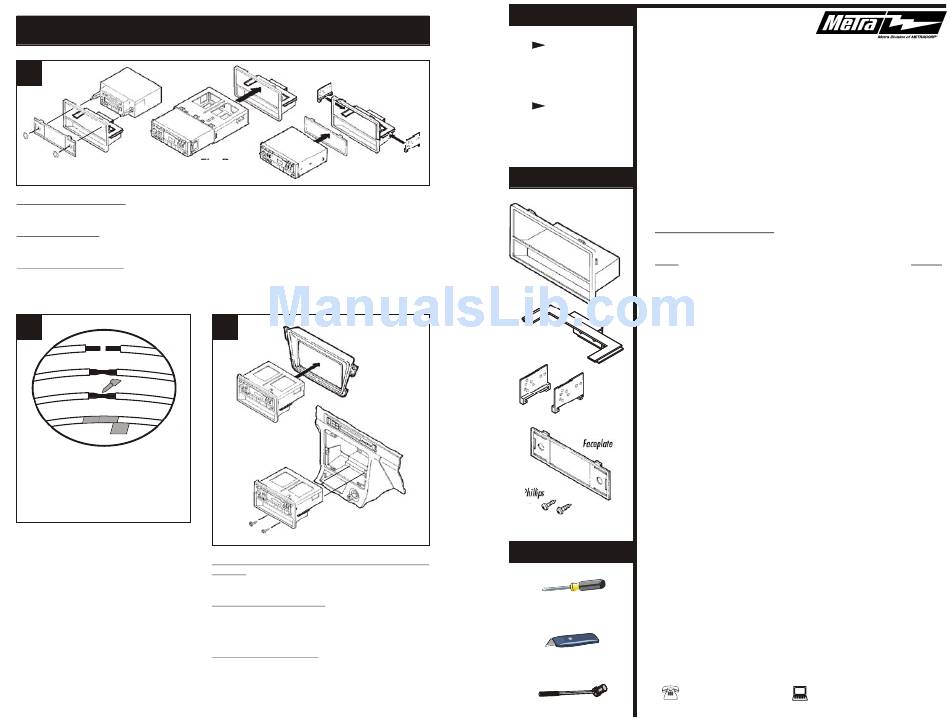

2-SHAFT HEAD UNITS: Snap the Faceplate into the Radio Housing. Slide the aftermarket
head unit into the kit and secure with shaft nuts. (see Fig. A)
DIN HEAD UNITS: Slide the DIN cage into the kit and secure by bending the metal locking tabs
down. Slide the aftermarket head unit into the cage until secure. (see Fig. B)
ISO-DIN HEAD UNITS: Slide the ISO-DIN Brackets onto the sides of the Rear Support
Bracket. Cut and remove the shaft supports from the Faceplate and snap into the Radio
Housing. Slide the aftermarket head unit into the Housing, align the holes in the unit with the
holes in the ISO-DIN Brackets and mount with the screws supplied with the unit. (see Fig. C)
5
A
B
C
D
A) Strip wire ends back ½"
B) Twist ends together
C) Solder
D) Tape
Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adaptor and making
connections as shown. (Isolate and
individually tape off the ends of any
unused wires to prevent electrical short
circuit).
11
Fig. C
Fig. B
6
Fig. A
Fig. B
ACCORD 1990-93, INTEGRA, ODYSSEY,
OASIS: Re-connect the battery terminal and test
the unit for proper operation. Snap the head
unit/kit assembly into the sub-dash.
LEGEND, TL, VIGOR: Re-connect the battery
terminal and test the unit for proper operation.
Snap the head unit/kit assembly into the factory
trim bezel. Mount the bezel to the dash with those
screws previously removed in step #1. (see Fig. A)
ACCORD 1994-97, CL: Re-connect the battery
terminal and test the unit for proper operation.
Slide the head unit/kit assembly into the sub-dash
and mount the Rear Support Bracket to the rear
support provision with (2) hex-head bolts
previously removed. (see Fig. B)
rev. 250701
KIT FEATURES
Shaft, DIN and
ISO-DIN unit
99-7892
provisions
Pocket
INSTALLATION
provisions
INSTRUCTIONS
KIT COMPONENTS
Radio Housing
APPLICATIONS
CAR
ACURA
CL 1997-99................................................................. 1
Integra 1990-93.......................................................... 2
Integra 1994-00.......................................................... 3
Rear Support
Bracket Legend 1990................................................................4
Legend 1991-96.......................................................... 5
TL 1996-98..................................................................6
ISO-DIN
Vigor 1992-94............................................................. 7
Brackets
HONDA
Accord 1990-93........................................................... 8
Faceplate
Accord 1994-97........................................................... 9
Odyssey 1995-98.........................................................10
(2) Phillips
ISUZU
Screws
Oasis 1996-99............................................................. 10
TOOLS REQUIRED
Phillips screwdriver
Cutting tool
1-800-221-0932
Socket wrench © COPYRIGHT 2001 METRA ELECTRONICS CORPORATION
