Metra Electronics NISSAN MURANO 99-7426 Installation Instructions Manual

Dash kit for nissan murano 2009-10 (without bose audio)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION INSTRUCTIONS FOR PART 99-7426
Nissan Murano 2009-10
(Climate Controls must be above OE radio)
99-7426
KIT FEATURES
• DIN Mount Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
• Painted Charcoal To Match OEM Finish
KIT COMPONENTS
A) R adio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Double DIN Brackets
E) Double DIN Trim Plate • F) Pocket
B
A
Harness & Antenna Connections (sold separately)
• 70-7552 - Nissan Harness 07-up
• 40-NI12 - Nissan Antenna Adapter 07-up
Small Flat Blade Screwdriver or Panel Removal Tool
1-800-221-0932
© COPYRIGHT 2010 METRA ELECTRONICS CORPORATION
APPLICATIONS
(Without Bose Audio)
C
D
TOOLS REQUIRED:
• Phillips Screwdriver
www.metraonline.com
F
E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NISSAN MURANO 99-7426 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Metra Electronics NISSAN MURANO 99-7426

Summary of Contents for Metra Electronics NISSAN MURANO 99-7426

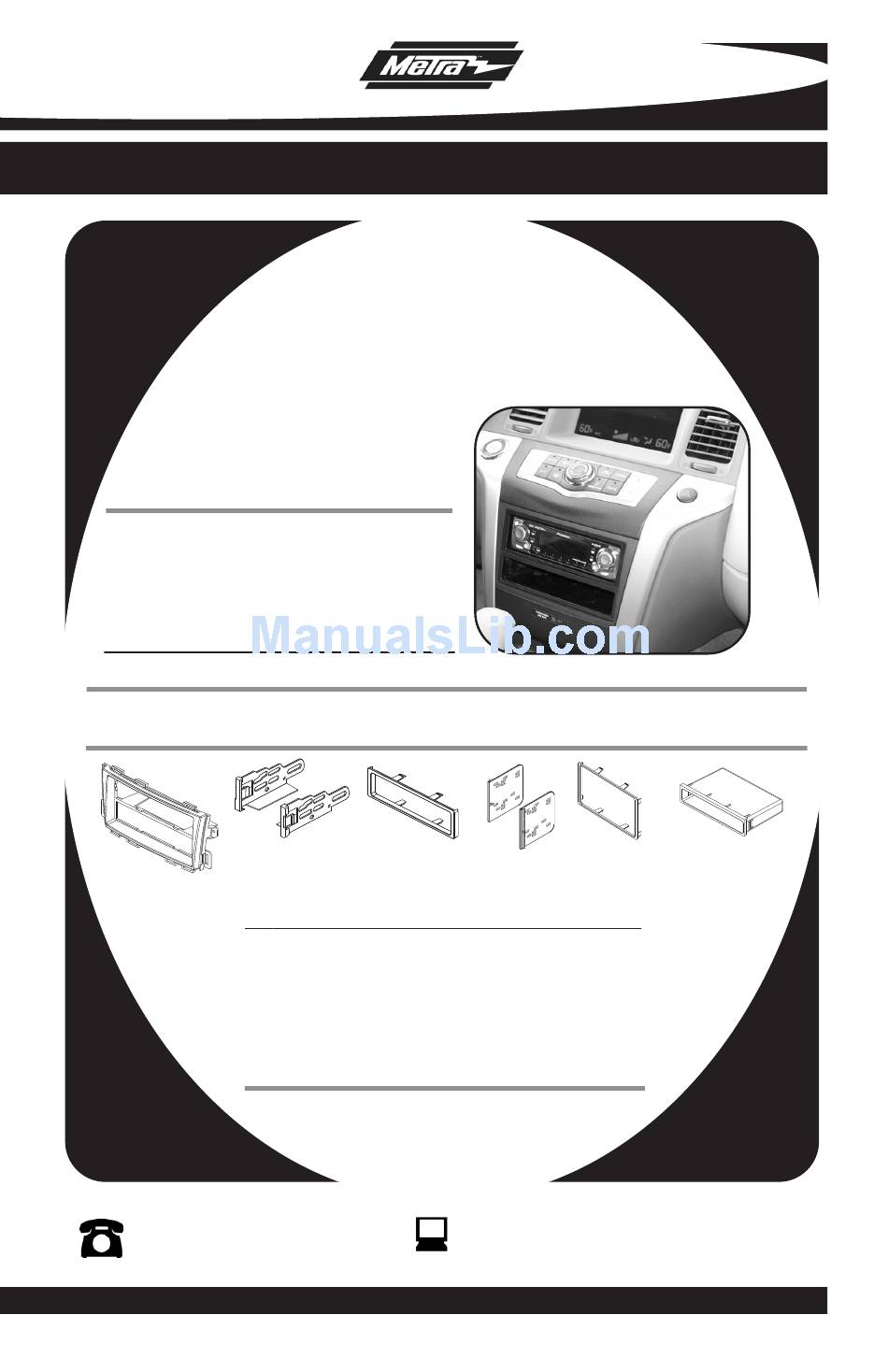

  • Page 1 Harness & Antenna Connections (sold separately) • 70-7552 - Nissan Harness 07-up • 40-NI12 - Nissan Antenna Adapter 07-up Small Flat Blade Screwdriver or Panel Removal Tool 1-800-221-0932 © COPYRIGHT 2010 METRA ELECTRONICS CORPORATION APPLICATIONS TOOLS REQUIRED: • Phillips Screwdriver www.metraonline.com...

  • Page 2: Table Of Contents

    - DIN Mount Radio Provision with Pocket ...3 - ISO Mount Radio Provision with Pocket ...4 - Double DIN Radio Provision ...5 - Stacked ISO Mount Units Provision...5 •Final Assembly ...6 *Note: Refer also to the instructions included with the aftermarket radio.

  • Page 3: Nissan Murano 2009-10

    NISSAN MURANO 2009-10 1 Disconnect the negative battery termi- nal to prevent an accidental short cir- cuit. Unclip trim panel at bottom center of dash. (Figure A) Remove (1) Phillips screw from bot- tom of each side trim panel. Unclip and remove the side trim panels.
  • Page 4 (containing the passenger air bag light) then unclip, unplug and remove the panel. (Figure D) Remove (6) Phillips screws securing the radio to the sub dash. Unplug and remove radio. (Figure E) Continue to kit assembly. 99-7426 DASH DISASSEMBLY...

  • Page 5: Din Mount Radio Provision With Pocket

    99-7426 KIT ASSEMBLY DIN MOUNT RADIO PROVISION WITH POCKET Note: Refer also to the instructions included with the aftermarket radio. Slide the DIN cage into the radio hous- ing and secure by bending the metal locking tabs down. (Figure A) Slide the aftermarket radio into the cage until it snaps into place.

  • Page 6: Iso Mount Radio Provision With Pocket

    ISO MOUNT RADIO PROVISION WITH POCKET Note: Refer also to the instructions included with the aftermarket radio. Mount the ISO Brackets to the radio using the screws supplied with the radio. (Figure A) Slide the radio into the radio housing until it snaps into place.

  • Page 7: Double Din Radio Provision

    DOUBLE DIN RADIO PROVISION STACKED ISO MOUNT UNITS PROVISION Note: Refer also to the instructions included with the aftermarket radio. Cut and remove the center bar from the radio housing. (Figure A) Snap the Double DIN brackets to the inside edge of the radio housing.

  • Page 8: Final Assembly

    Dimmer ....Orange / White *NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications.
