D A I L Y O P E R A T I O N

Control Panel Features

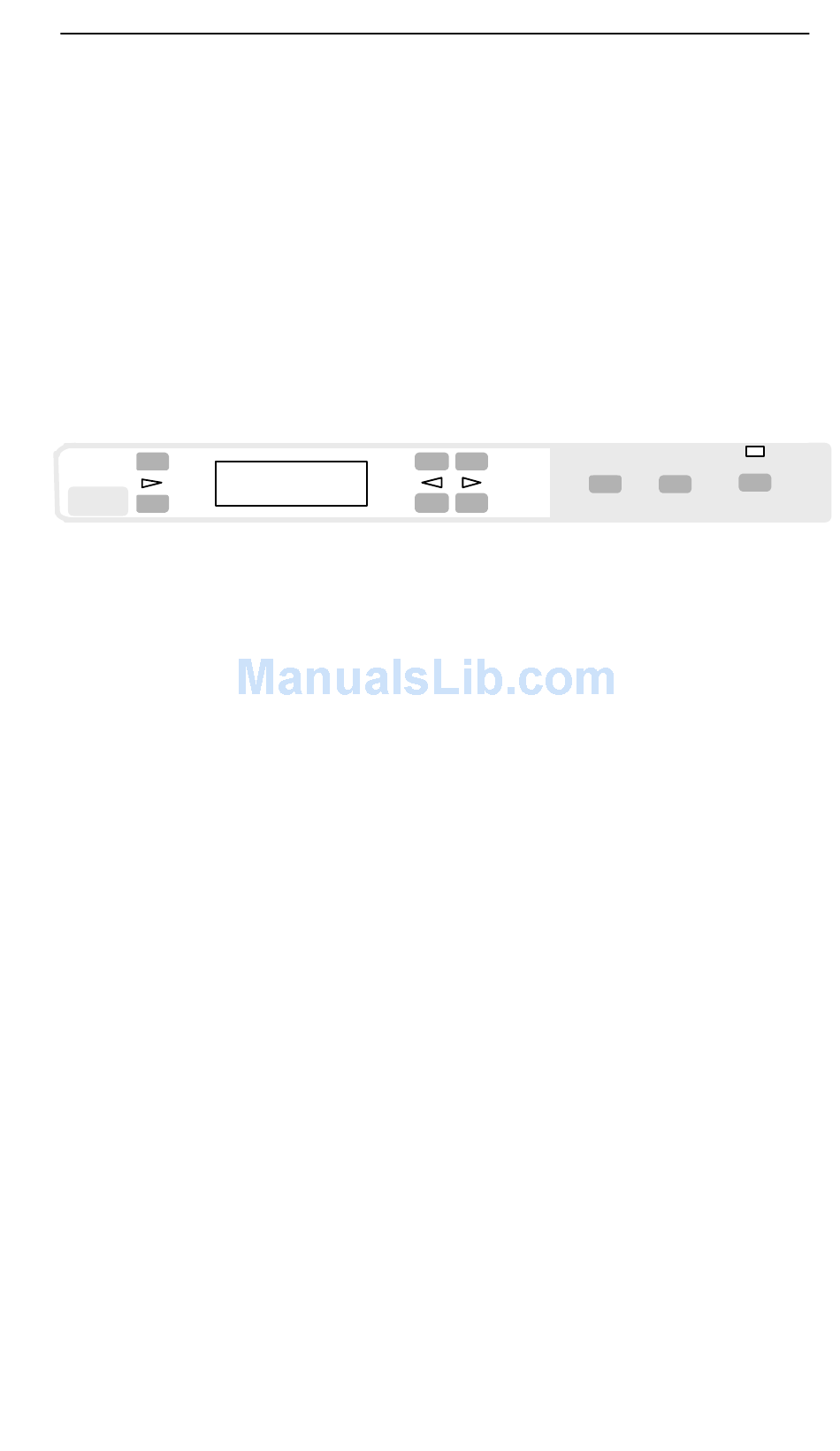

The following picture shows the printer's control panel. The control panel
consists of a two line LCD display, an ONLINE status indicator, nine push
button switches or "buttons", and a speaker. Each of these items is
described below
MENU
SETU
ALIGN
SUB-
PRINT
MENU

LCD Display and Online Indicator

LCD Display
ONLINE Status
Indicator LED
Green:
22
ITEM
LCD
DISPLAY
VALUE
Control Panel
This two line by sixteen character display is used
to convey several types of information. When the
printer is on line and printing, or ready to print,
the display will show the currently selected
tractor path and the form currently loaded in that
path. When the printer is off line, the display will
continue to show this information, additional
information based upon other buttons being
pressed by the operator, or error conditions such
as "Check Paper".
This is a multicolored LED which is used to
display the following information:
The printer is on line and ready to print.
FORM FOR
SELEC M
LINE
T FEED
UNLOA LOAD
ON
