Summary of Contents for Printek 4000se

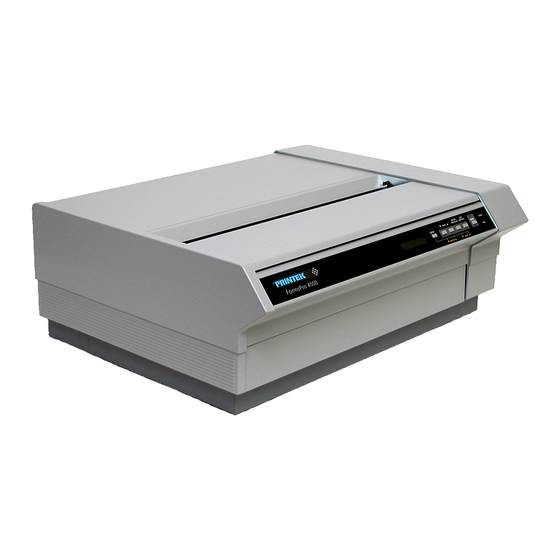

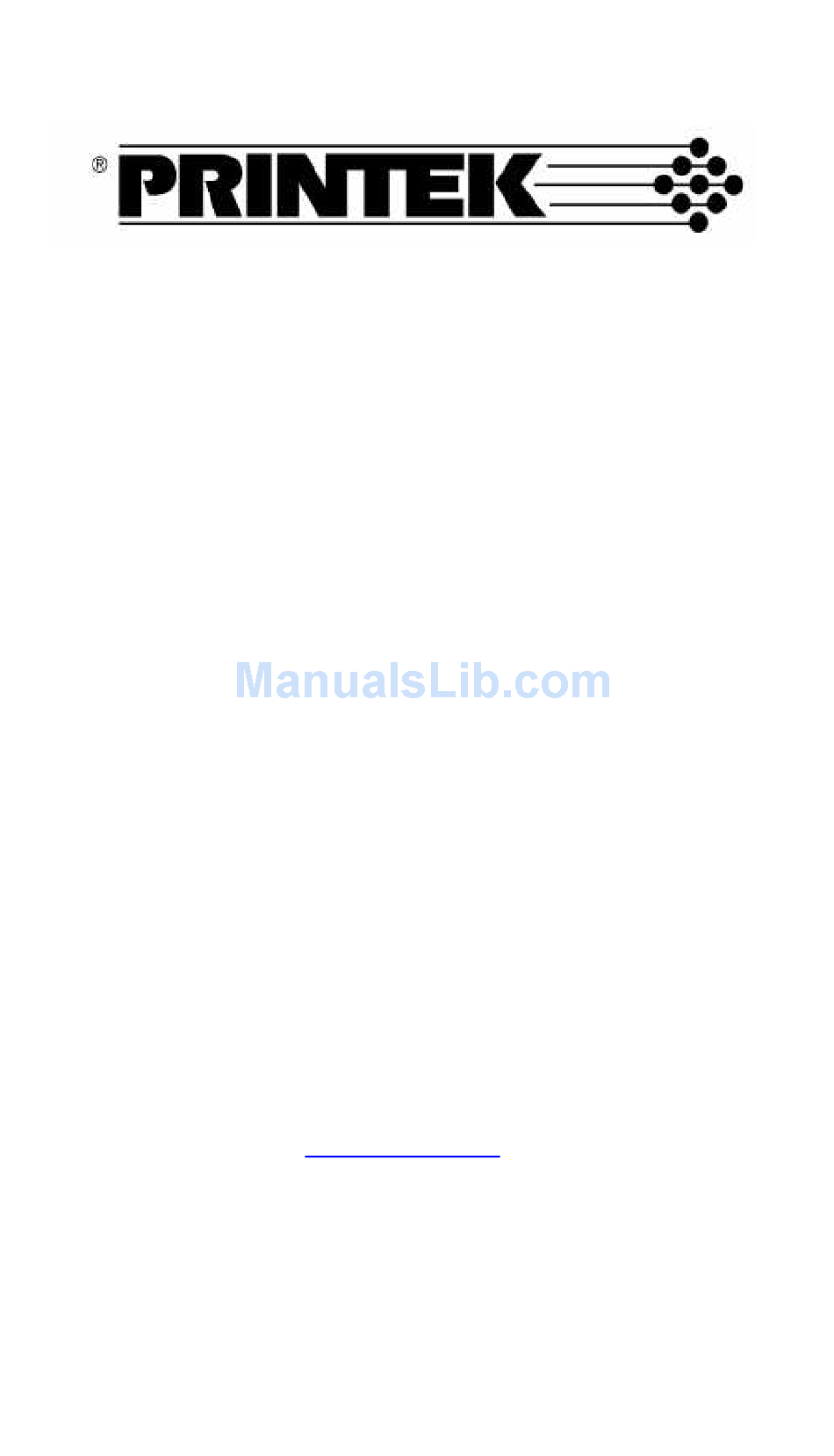

- Page 1 FormsPro 4000se Series Operator’s Manual ©Printek, Inc. 2003 1517 Townline Road Benton Harbor, MI 49022 (800) 368-4636 www.printek.com Part Number 5593...
- Page 2 Co.; DEC is a registered trademark of Digital Equipment Corporation; Epson is a registered trademark of Seiko Epson; QMS is a registered trademark of Quality Micro Systems, Inc.; IGP is a registered trademark of Printronix Corp.; Printek is a registered trademark of Printek, Inc.
- Page 3 Do not operate near a heat source. No user-serviceable parts inside. Refer service or repairs to a qualified service professional. Use of genuine Printek replacement parts is required to warrant proper, safe operation. Any alteration or modification of this device voids the user warranty and may make the product unsafe to operate.
- Page 4 Enthält keine Teile, die vom Bediener instandgesetzt werden können. Bitte wenden Sie sich bei Instandsetzung oder Reparatur an qualifiziertes Kundendienstpersonal. Die Verwendung von echten Printek Ersatzteilen ist notwendig, um ordnungsgemäßen, sicheren Betrieb zu gewährleisten. Änderungen oder Modifikationen dieses Geräts machen die Garantie ungültig und können den sicheren Betrieb des Produkts gefährden.
-
Page 5: Table Of Contents
Interface Set Up RS-232C Serial Interface Parallel Interface Ethernet 10/100BaseT Print Server Wireless Ethernet Print Server Installing The Ribbon Cartridge Why Use Only Printek Ribbon Installation Loading Paper FormsPro 4300se & 4500se Single Tractor Model FormsPro 4503se Tri-Trak Model Printer Self-Test... - Page 6 Too Much Paper to Unload Selected Form is not Loaded No Ribbon or Wrong Ribbon Ribbon Lid Open Change Ribbon Other Errors PRINTER CONFIGURATION Introduction To Setup Setup Buttons Entering Setup Using the SETUP Button Using the FUNCTION and VALUE Buttons...
- Page 7 Setup Module Installation PRINTER RESET CONDITIONS CONTROL CODE AND ESCAPE SEQUENCE SUMMARIES Genicom 3840 and 3410 Emulation ANSI X3.64 Emulation Epson Fx Emulation IBM Proprinter Emulation LA-120/210 Emulation Simple TTY Emulation Printek Emulation ASCII CHARACTER TABLES SPECIFICATIONS GLOSSARY OF TERMS...
-
Page 9: Introduction
This printer has been designed to provide years of service handling your most demanding printing requirements. The FormsPro 4000se Series printers offer higher throughput than all other printers in its class. In addition, an easy to use front panel combined with the ability to store ten different form configurations makes handling multiple forms as simple as a button press for the operator. -
Page 10: Manual Contents
Manual Contents *Unless specifically noted, all instructions and information herein is valid for all models in the 4000se series. GETTING STARTED the computer interface, installing the ribbon cartridge, loading paper, and performing a printer self-test. DAILY OPERATION features that are used most frequently. These include the “every day”... - Page 11 CONTROL CODE AND ESCAPE SEQUENCE SUMMARIES lists the commands supported for each printer emulation. ASCII CHARACTER TABLES show the characters for each character set. SPECIFICATIONS list the operating ranges and ratings of the printer. GLOSSARY OF TERMS provides definitions for terms used in this manual.
-
Page 13: Getting Started
“ ” on 111. Once a site has been selected, the printer should be placed on a Printek print stand. The Printek print stand is especially recommended for the FormsPro 4503se and is required to meet the low noise rating of the printer. -
Page 14: Interface Set Up
Next, connect the power cord supplied with the printer to the printer and an appropriate power outlet. appropriate interface on the rear panel of the printer. -
Page 15: Rs-232C Serial Interface
This interface uses a 25 pin “D” connector as described below. The default settings are 9600 baud, 8 data bits, 1 stop bit, and no parity with hardware handshake on pin 11. The default printer emulation is Epson. For a complete description of all the default settings for this interface, refer to page 55. -
Page 16: Parallel Interface
Parallel Interface This interface uses the standard 36 pin parallel connector as shown below. The default printer emulation is Epson. Pin Signal ____________________ DATA STROBE DATA STROBE RTN DATA 1 DATA 1 RETURN DATA 2 DATA 2 RETURN DATA 3... -
Page 17: Ethernet 10/100Baset Print Server
CAT-5 twisted pair wiring, using the standard RJ- 45 connector. The interface automatically senses when a CAT-5 connection is present and will disable the wireless capability. For additional software installation and operational information, please refer to the Printek Wireless Ethernet Print Server Manual shipped with the unit. -
Page 18: Why Use Only Printek ® Brand Ribbons
4000se Series printer. First of all, using only Printek brand ribbons will automatically extend the print head warranty to two years. The reason this is possible is that Printek brand ribbons are manufactured to much higher quality standards than those offered by other manufacturers. -
Page 19: Ribbon Installation
Premature engine failure and poor performance leading up to the failure would be the best you could expect. Other useful features available only with the u se of Printek brand ribbons are that the printer will not allow printing if a ribbon is not installed, and the printer will alert the operator when a ribbon needs to be changed. - Page 20 3. Place the right hand end of the ribbon on the support bracket while you align the plastic tabs with the slots in the bracket as shown below. 4. Align and lower the left end of the ribbon onto the left support bracket until it snaps into place, while guiding the ribbon fabric between the nose of the print head and the ribbon guide pins.
- Page 21 G E T T I N G S T A R T E D 5. Finally, lower the ribbon-loading handle to its original position. Closing the Ribbon Load Handle 6. Close the ribbon lid on top of the printer.
-
Page 22: Loading Paper
FormsPro 4300se, 4500se, or 4503se. FormsPro 4300se & 4500se Single Tractor Model If the printer is not currently turned on, push the ON-1 side of the power switch on the right side of the printer. After you turn on the printer, it performs several self-tests. - Page 23 2. While you pull outward on this panel, lift the front of the unit to expose the paper tractors. The top of the unit will support itself in the up position while you load paper. 3. To load paper or forms, open the door on each tractor and position the holes in the paper over the pins in the tractors;...
-
Page 24: Formspro 4503Se Tri-Trak Model
FormsPro 4503se with Form Installed in Front Tractors. FormsPro 4503se Tri-Trak Model 1. To install forms in the other sets of tractors in the FormsPro 4503se: 2. Press the FORM SELECT button on the front panel until the desired form setup and tractor path is selected on the LCD display (this button's sequence is 0 through 9, and back to 0, and may be operated while the case is either opened or closed). - Page 25 G E T T I N G S T A R T E D The following picture shows a FormsPro 4503se with forms installed in all three sets of tractors and the center tractor path positioned for loading in place for operation.
-
Page 26: Printer Self-Test
To stop or restart printing the test pattern, press the ONLINE button. 8. To take the printer out of the test mode, stop the test by pressing the ONLINE button. 9. Press the SETUP button four times to display TEST MENU. -
Page 27: Daily Operation
DAILY OPERATION Introduction This chapter describes how to use the “everyday” features of the FormsPro 4000se Series printers. The items covered are: Control Panel Features features of the printer’s control panel. Selecting and Loading Forms or forms into the tractors and how to inform the printer of which forms are “loaded”. -
Page 28: Control Panel Features
“ ”, and describes the Installation and Interface Setup daily operation of the FormsPro 4000se series printers. In particular, using the control panel, changing paper or forms, and changing the ribbon cartridge are discussed. Control Panel... -
Page 29: Lcd Display And Indicators
This two line by sixteen-character display is used to convey several types of information. When the printer is on line and printing, or ready to print, the display will show the currently selected tractor path and the form currently loaded in that path. -
Page 30: Control Panel Buttons
Control Panel Buttons ONLINE LOAD / FORM FEED This button allows you to place the printer online or offline, as indicated by the ONLINE indicator, and as temporarily displayed on the two line by sixteen character display. It is also used for starting and stopping the test pattern while the printer is in the Barber Pole mode. - Page 31 LOAD button. The printer will not allow you to change the form during printing. If you press the FORM SELECT button while there is still a line to print, the button press is rejected, the bell sounds, and the message “Finish Printing!”...
- Page 32 ALIGN ih SETUP parked and secured whenever the printer is being transported. These buttons will access the horizontal and vertical print adjustment settings for the currently selected form. When either ALIGN button is pressed, the horizontal adjustment is shown first. Pressing the VALUE buttons will move the print position on the line left or right by 0.01 inches for each press of a...
-
Page 33: Selecting And Loading Forms
Different Form in the Tractors”. Selecting a Form Already Loaded In the Tractors To select a form that is already loaded in the tractors, take the printer off line and press the FORM SELECT button until that form is displayed (a form that is not considered to be loaded will flash Not Loaded on the bottom line of the display). - Page 34 2. To open the case for access to the tractors, pull out on the bottom of the lower front panel of the printer to release the latch as shown below: Opening The Latch Panel...
- Page 35 3. While pulling out on this panel, lift the front of the printer to expose the paper tractors. The top of the unit will support itself in the up position while you load paper. Caution: Do not open the unit in this fashion while the printer is printing or forms are loaded.
- Page 36 4 on the following page. You can position the other tractor paths for loading without closing the printer's case. To load another tractor path: 1. Press the UNLOAD/FORM SELECT button on the front panel until the desired form and tractor path is indicated on the LCD display.
- Page 37 FormsPro 4503se with Forms in All Tractor Center Path Positioned for Loading 4. Close the case of the printer by lowering it until the lower front panel closes. The printer LCD will display Case Closed when you do this. 5. Check the LCD display to make sure the correct form setup (0-9) or the actual name of the form has been selected.
-
Page 38: Ejecting And Tearing Off A Form
When most print jobs complete, they will command the paper to be positioned at the top of the next form so that the printer is ready for the next job. This is, however, dependent solely upon how the programmer chose to write your particular application software. - Page 39 This will prevent the printer from pulling the paper down to start printing the next job while you are tearing off this one. 2. Pull the paper toward the front of the printer and toward one side of the printer as shown.
- Page 40 O P E R A T I O N Tearing off a form 3. Place the printer back on line with the ONLINE button (indicator changes to green). The form will automatically be pulled down into position for printing the next time the printer receives data to be...
-
Page 41: Installing A New Ribbon Cartridge
Installing A New Ribbon Cartridge Removing the Old Ribbon Cartridge 1. Open the ribbon lid on top of the printer and position the print head for ribbon loading by lifting the ribbon loading handle as indicated in the following picture. -
Page 42: Installing The New Ribbon Cartridge
Installing the New Ribbon Cartridge Note: The use of Printek brand ribbons is recommended for increased ribbon life and print head life. The use of only Printek brand ribbons is required for the extended print head warranty. For details, see “... - Page 43 D A I L Y O P E R A T I O N Ribbon Cartridge Installation 3. Lower the ribbon loading bail as shown below. This automatically places the ribbon between the ribbon guides and the print head as the print head is placed back into the printing position.
-
Page 44: Aligning Print
Aligning Print When a new form is loaded into the printer for the first time, it may be necessary to adjust where printing begins. This depends upon how the software that controls the printing was written. If the software was written to perform its own character and line spacing relative to the edges of the form, then adjustment may not be necessary. - Page 45 MOVE Down/Up PRINT × The VALUE buttons will move the print down or up in 1/100 increments. Note again that the arrow will change according to the direction the print is to be moved from the normal print position. The maximum distance print may be moved is 9.99 inches in either direction.
- Page 46 D A I L Y O P E R A T I O N MOVE Down/Up PRINT 0.08” Now when the form is printed again, the text will be printed in the box as shown here. 12345...
-
Page 47: Common Error Conditions
Depending upon how the printer has been set up, the printer may start printing where it left off or it may start at the beginning of the page where the error occurred and reprint the entire page. -
Page 48: Too Much Paper To Unload
This message is periodically displayed when a ribbon has reached the end of its useful life and indicates that a new Printek ribbon should be installed. This error is merely a reminder to change the ribbon and does not force the... -
Page 49: Other Errors
D A I L Y O P E R A T I O N Other Errors If other errors occur, it is possible that they may not be resolved without the aid of a factory trained service technician. Please refer to the MAINTENANCE AND TROUBLESHOOTING “... -
Page 51: Printer Configuration
These values are stored in nonvolatile memory, which means that they will remain set even if the printer is turned off. -
Page 52: Entering Setup
Entering Setup To enter Setup, simply take the printer off line and press the SETUP button. The SETUP indicator will begin to flash yellow and the display will temporarily show the following. Entering Setup Menus After the above message has been shown, the display will change to the first menu available, which is the display will also show which form is to be set up. -
Page 53: Exiting Setup
Pressing the ONLINE button indicated by Yes will display one of the following messages depending on whether or not changes were made, reset the printer if changes were made, and then leave the printer off line. Exiting Menus Saving Changes... -
Page 54: Forms Menu
Not all of these forms require the same printer settings for things such as font, character size, line spacing, or form length. The FormsPro 4000se series printers store up to ten complete sets of form parameters, including the name of the form. -
Page 55: Automatic Cut
To manually cut a form or report at the end of the current page, the user can take the printer offline and press the UNLOAD button. See the FormsPro 4000se Series FormsCutter Manual for additional information. ), or spaces. The name may be up to 16... -
Page 56: Form Length
Cut Adjustment Auto, -0.2951” … 0* … +0.2951”, Auto Possible Values: This item may be used to adjust the position of the cut relative to the top-of- form for improved cut accuracy. This item is only available when the optional FormsCutter is installed. Refer to the FormsCutter manual for more information. - Page 57 P R I N T E R C O N F I G U R A T I O N print the first form correctly and then print following forms too far down the page if the program sending the data does not require the margin.
- Page 58 Bottom Margin Possible Values: 0* … 226 Lines This item sets the bottom margin in lines. Setting a bottom margin will reduce the size of the printable area of the page by the number of lines set. When the bottom margin is reached, the remainder of the page will be skipped and printing will resume at the beginning of the next page (or top margin if one is set).
-
Page 59: Impact Force
Possible Values: This item selects whether the Draft Font ( be selected when the printer receives a “select draft font” command from the host computer. This will allow the Fast Draft font to be used with programs, which would not be able to otherwise. - Page 60 Possible Values: Normal*, High This item may be used to select High Impact for improved printing on multipart forms that do not otherwise print well on the back copies. Language Possible Values: USA*, France, Germany, England, Denmark, Sweden, Italy, Spain, Japan, Finland This item selects the character substitution table to be used for an alternate language when printing.
- Page 61 P R I N T E R C O N F I G U R A T I O N Unidirectional Unidirectional Printing Possible Values: No*, Yes This item selects unidirectional printing instead of bi-directional printing. This may be used to improve the straightness of vertical lines for critical applications such as printing small bar codes.
-
Page 62: Interface Menu
The factory default values are indicated with an asterisk (*) in this manual (the asterisk does not appear on the printer’s display). on page 55 on page 59... -
Page 63: Rs-232C Serial Interface Items
INTERFACE MENU Serial Emulation Possible Values: Epson*, IBM Proprinter, DEC LA120/210, TTY, Printek, ANSI X3.64, Genicom 3840, Genicom 3410 Automatic Carriage Return Possible Values: Off, On* This item enables or disables automatic Carriage Returns (CR) whenever a Line Feed (LF), Vertical Tab (VT), or Form Feed (FF) is received. -
Page 64: Baud Rate
Paper Out Fault size). Setting this to Yes may decrease performance, but is useful when the printer is currently printing using the printer with operating systems that try to keep track of which page. This may also be useful when using serial I/O with systems that do not respond quickly enough to handshake signals. -
Page 65: Stop Bits
Busy Signal Polarity Possible Values: Low*, High This item selects the polarity of the busy signal (pin 11 of the RS-232C interface). Busy is set whenever the printer is offline; the serial input buffer is full. Data Terminal Ready Possible Values:... - Page 66 Enables or disables the transmission of the XON and XOFF characters from the printer to the host to control data flow to the printer. XOFF will be sent whenever the printer goes offline or the serial buffer is full. XON will be sent when it is again ready to receive characters.
-
Page 67: Parallel/Lan Interface Items
TTY, Printek, ANSI X3.64, Genicom 3840, Genicom 3410 This item selects the emulation to be used whenever the parallel port is active. The emulation should be set to match the type of printer your software supports. LAN Setup Possible Values:... -
Page 68: Subnet Mask
IP Address Method Auto*, Static Possible Values: This item controls how the optional Ethernet interface card receives its network address. When set to Auto, the Ethernet card will receive its network address from a network DHCP server (typical installation). When set to Static, the user sets the TCP/IP address, Subnet Mask and TCP/IP Gateway address as follows: IP Address... - Page 69 To set the TCP/IP Gateway, use the CURSOR button to select which digit group you wish to change, and then use the VALUE buttons to change the value. The value will change rapidly if the key is held down. Automatic Carriage Return Possible Values: Off, On* This item enables or disables automatic Carriage Returns (CR) whenever a...
- Page 70 (see “ Paper Out Fault size). Setting this to printer is currently printing using the printer with operating systems that try to keep track of which page. will allow the printer to make maximum use of the I/O ” on page 64 for more information on buffer...
-
Page 71: Options Menu
Off, 0, 1* to 15 Second Delay Possible Values: This item sets the number of seconds to delay before scrolling the top of form to the tear bar when the printer is idle (no additional data received Max Form Allowed... - Page 72 (the printer assumes there is not a complete page available), when reverse paper motion is attempted within the last one inch of the form, or when a paper jam occurs.
- Page 73 The printer’s ability to complete the reprint successfully depends on whether the data for the current page is still in the printer’s memory. Refer to the following Reprint Page Size option for more information regarding how much data may be retained.
-
Page 74: Page Size
This feature has no meaning in other emulations. User Language Possible Values: English*, French, German This selects the front panel language that will be used by the printer's LCD display screen. Press the UP/DOWN ARROW keys to change the selection. Note:... - Page 75 (see Ribbon Life below). Ribbon Check may be turned off if these features are not desired. Ribbon Check may also be turned off to allow the use of non-Printek brand ribbons. Using non-Printek ribbons may limit the warranty on the print head, so before turning Ribbon Check off, please read “...
-
Page 76: Imagerplus Graphic Card
114. Note that turning this feature off while still using Printek brand ribbons will not affect the extended warranty. Ribbon Life 5 … 23* … 30 Million Chars Possible Values: This item sets the number of “draft equivalent” characters to be printed... -
Page 77: Bar Code
Control Character Possible Values: ^ (5E Hex)* SOH (01 Hex) through HT (09 Hex), SO (0E Hex) through (FF Hex) This item sets the control character used to begin commands. character normally used for QMS is the caret (^) and the character normally used for IGP is the tilde (~) (if you change the emulation to Printronix IGP , you may need to change the control character to the... -
Page 78: Free Format
This item selects the character set. ^PY Translation Mode (QMS CodeV v2 and PTX CodeV v2 only) Possible Values: Not Active*, Active This item selects whether or not Filter Mode is active at power on or reset. ^F Free Format Mode (QMS CodeV v2 and PTX CodeV v2 only) Possible Values: Not Active*, Active... -
Page 79: Vertical Text
This item selects whether or not the form will automatically be advanced to the next line boundary when Filter Mode is exited. Vertical DPI Resolution (QMS CodeV v2 and PTX CodeV v2 only) Possible Values: 72*, 70 This item sets the vertical resolution to 72 or 70 Dots Per Inch. Vertical Text Spacing (QMS CodeV v2 and PTX CodeV v2 only) Possible Values:... -
Page 80: Delete Logos
Delete Logos No*, Yes Possible Values: This item selects whether logos should be deleted when a form is deleted. Quiet Mode Possible Values: Not Active*, Active This item selects whether or not the quiet mode is active at power on. Spacing Mode Possible Values: IGP 10/20/40*, IGP 30... -
Page 81: Test Menu
After setting this value, press ONLINE to begin printing. After printing is completed, the value of this item will automatically return to once printing begins, taking the printer off line for any reason ( ONLINE button pressed, ribbon lid or paper door opened, or a paper fault) will cause printing to be aborted. - Page 82 For more information, refer to the Hex Dump section of the FormsPro 4000se series Programmer’s Manual. Note: When in Barber Pole mode and Hex Dump mode, if the printer is taken OFFLINE during printing, the printer will remain in these modes. If the printer is put back ONLINE, printing will resume.
-
Page 83: Form Construction
FORM CONSTRUCTION Form Construction Although the FormsPro 4000se series printers have been designed to handle difficult forms, y ou may come across a form that does not feed reliably or provide adequate print quality on all copies. One of the main causes of paper misfeeds is a form that is “tented”. Tenting is a tent-like bulge at the perforation when forms are unfolded from the box. -
Page 84: Form Layout Considerations
While the print alignment can be adjusted on the FormsPro 4000se series printer to 1/100 of an inch, this is often too much to expect of the forms manufacturer. -
Page 85: Maintenance And Troubleshooting
Common Error page 39. Other errors which are not listed here should be reported to the company where you purchased your printer, or to your nearest Authorized Service Center. If you do not know the name or number of your nearest Authorized Service Center, see “... -
Page 86: Preventive Maintenance
It is only suggested that you periodically clear out any excessive paper dust. Also, the various bearings used in the FormsPro 4000se should not require any lubrication. If you do choose to lubricate any bearings, use only 30 Wt. -
Page 89: Advanced Setup Features
Security Menu The SECURITY MENU is for Information System managers who want to be able to set up a printer and then “lock out” operator changes to the various menus. This method of security may be set independently for the Align Print, the Forms menu, the Interface menu, or the Options menu. - Page 90 Forms Menu Possible Values: Edit Allowed, View Only, Initialize This item selects whether items in the viewed by the operator. Initialize will reset the value of all the items for all forms to factory default values. Interface Menu Possible Values: Edit Allowed, View Only, Initialize This item selects whether items in the INTERFACE MENU can be edited or only viewed by the operator.
-
Page 91: Using Remote Setup
Remote Setup via Windows Application Printek provides a remote setup program for Windows 95, 98, 2000 and NT users. This provides a convenient method for graphically configuring the printer. Visit www.printek.com... - Page 92 The I/O interface to be used for remote setup must be configured appropriately to communicate with the host system, and printer must be placed in remote setup mode. This is done by sending a 3- byte escape sequence to the printer. This sequence is ESC; or hexadecimal 1B 1B 3B.
- Page 93 U S I N G R E M O T E S E T U P *Note that the 3-byte escape sequence can be included as the first 3 bytes in the remote setup file.
-
Page 94: Remote Setup Line Definitions
Remote Setup Line Definitions [BeginPrintekSetup] AlignPrint=FactoryDefaults Forms=FactoryDefaults Interfaces=FactoryDefaults Options=FactoryDefaults Security=FactoryDefaults [Form0] ... [Form9] MovePrintLeft=0.00 ... 9.99 MovePrintRight=0.00 ... 9.99 MovePrintUp=0.00 ... 9.99 MovePrintDown=0.00 ... 9.99 FormName="UPTO16CHARACTERS" TractorPath=Front,Center,Rear, AutomaticCut=No,Yes LinesPerInch=6,8 FormLength=1 ... 227 TopMargin=0 ... 226 BottomMargin=0 ... 226 CharactersPerInch=10,12,13.3,15,16.74,17.14,2 LeftMargin=0 ... 268 RightMargin=4 ... - Page 95 Emulation=ANSI_X3.64,Epson,IBM_Proprinter, DEC_LA120,TTY,Printek,Genicom_3840, Genicom_3410 AutoCR=Off,On AutoLF=Off,On HostFFatTOF=No,Yes Characters=Control,Printable MinimumBuffer=No,Yes BaudRate=110,150,300,600,1200,2400, 4800,9600 DataBits=8,7 StopBits=1,2 Parity=None,Even,Odd BusyPolarity=Low,High DTR=Power,Online,Busy XON/XOFF=Off,On ETX/ACK=Off,On [Parallel/LAN Interface] Emulation=ANSI_X3.64,Epson,IBM_Proprinter, DEC_LA120/210,TTY,Printek,Genicom_3840,Genico m_3410 AutoCR=Off,On AutoLF=Off,On HostFFatTOF=No,Yes Characters=Control,Printable MinimumBuffer=No,Yes [Options] MaxFormAllowed=0 ... 9 AutoScroll=Off,1 ... 15 PaperOutFault=BreakPage,ReprintPage,FinishPag PageSize=0K . . . 28K...
- Page 96 ControlCharacter=01h ... 09h,0Eh ... FFh LineTerminator=LF,CR BarCodeDensity=LowRes,MediumRes,HighRes, GraphicsMediumRes QMSCharacterSet=USA,UnitedKingdom, Sweden/Finland,Norway/Denmark,Japan, Germany,France,Italy,Spain,PCSubset, CodeVVersion1 Translation=NotActive,Active FreeFormat=NotActive,Active IgnoreData=NotActive,Active ImagerZero=Slashed,Normal LineRegistration=NotMaintained,Maintained VerticalDPI=72,70 VerticalTextSpacing=Version2,Version1 CodeVSpaceFields=Process,Ignore IGPCharacterSet=ASCII,Germany,Sweden,Denmark, Norway,Finland,English,Dutch, France,Spain,Italy,Turkey DeleteLogos=No,Yes QuietMode=NotActive,Active Spacing=IGP10/20/40,IGP30 [Security] AlignPrint=ViewOnly,EditAllowed FormsMenu=ViewOnly,EditAllowed InterfaceMenu=ViewOnly,EditAllowed OptionsMenu=ViewOnly,EditAllowed [EndPrintekSetup]...
-
Page 97: Remote Setup Example File
U S I N G R E M O T E S E T U P Remote Setup Example File The following example will set up three forms. Before the forms are set up, “AlignPrint” and all “Forms” will be reset to their factory default values so that only the “non-default”... -
Page 99: Using The Optional Setup Module
Introduction The optional Setup Module is a small cartridge that plugs directly into the RS-232 Serial connector on the rear of any FormsPro 4000se series printer. This module is used to store a second copy of the current Setup configuration of the printer. This may then be used to restore settings after a printer is serviced or to copy the same configuration settings to another printer. - Page 100 Setup Module. If the data is not an exact match, proceed with step 8. If the data in the printer and the data in the module are an exact match, installation is complete and the printer will complete its power up procedure.
- Page 101 Backup Copy of Setup Information for a Single Printer This use of the Setup Module provides a method of automatically maintaining a copy of the Setup configuration in case a printer should ever need to be repaired or if it is replaced under a service contract.
- Page 102 First, install the Setup Module on the printer where the Setup data is to be copied from. If the printer determines that steps 8 and 9 are required, choose “Copy to Module”...
-
Page 103: Printer Reset Conditions
PRINTER RESET CONDITIONS The following list describes conditions that are assumed whenever power is applied to the printer, changes have been made in SETUP, or a reset escape sequence is received (when the printer is operating in an emulation mode that supports such a sequence). - Page 104 horizontal tabs vertical tabs to every eight columns cleared...
-
Page 105: Control Code And Escape Sequence Summaries
CONTROL CODE AND ESCAPE SEQUENCE SUMMARIES Genicom 3840 and 3410 Emulation ESC D ESC E ESC ESC n ESC H ESC J ESC K ESC L ESC P <graphics> ESC \ ESC [(p1);(p2)<SP>B ESC [(p1);(p2)<SP>G ESC [(p)` ESC [(p)a ESC [(p)d ESC [(p)e ESC [(p1);(p2)f ESC [(Ps)g... -
Page 106: Ansi X3.64 Emulation
Genicom 3840 and 3410 Emulation (cont.) ESC [(p1);(p2);...(p12)v ESC [(p1);(p2)<SP>{ ESC [(p1);(p2);...(p12)} ESC ]6;4;(p3);(p4)ESC\ ESC c ANSI X3.64 Emulation ESC D ESC E ESC ESC n ESC H ESC J ESC K ESC L ESC [ n1 ; n2 SP G ESC [ n ` ESC [ n a ESC [ n d... -
Page 107: Epson Fx Emulation
Partial Line Up Vertical Tab Set Vertical Tab Stop Bell Backspace Cancel Line Carriage Return Cancel Condensed Mode Deselect Printer Cancel Double-Wide Mode (one line) Delete Character Master Print Mode Select Cancel MSB Control Absolute Horizontal Tab m DPI Graphics Underline Mode Select 8 LPI Set Line Spacing to 7/72"... - Page 108 Variable Distance Reverse Line Feed Select Font Set Left Margin Character Table (Italic vs. Extended) Double-High Mode Select Draft or Letter Quality End of Text Form Feed Horizontal Tab Line Feed Select Condensed Mode Select Double-Wide Mode (one line) Vertical Tab Deselect Printer...
-
Page 109: Ibm Proprinter Emulation
Variable Distance Line Feed 60 DPI Graphics 120 DPI Graphics Set Perforation Skip Cancel Perforation Skip Deselect Printer Reset Horiz. and Vertical Tab Stops Select Subscript or Superscript Mode Select Condensed Mode Select Double-Wide Mode (one line) Cancel Subscript and Superscript Mode... -
Page 110: La-120/210 Emulation
Select Software Interface n Set Horizontal Tab Stop Set Vertical Tab Stop Control Sequence Introducer Absolute Horizontal Tab Relative Horizontal Tab Printer Identification Printer Identification Absolute Vertical Tab Relative Vertical Tab Clear Horizontal Tab Stop Clear Horizontal Tab Stop Clear Vertical Tab Stop... -
Page 111: Simple Tty Emulation
LA-120/210 Emulation (cont.) ESC [ n1 ; n2 ; ... nx u ESC [ n1 ; n2 ; ... nx v ESC [ n w ESC [ n z Simple TTY Emulation ESC ESC n Set Horizontal Tab Stops Set Vertical Tab Stops Set Character Spacing Set Line Spacing End of Text... -
Page 112: Printek Emulation
Printek Emulation ESC # m n1 n2 data ESC % ESC * m n1 n2 data ESC @ ESC A n ESC B n ESC C ESC D n ESC E n ESC ESC n ESC F n ESC FF n... -
Page 113: Ascii Character Tables
ASCII CHARACTER TABLES Epson FX Font Character Set... - Page 114 A S C I I C H A R A C T E R T A B L E S PC Font Character Set EBCDIC Font Character Set...
- Page 115 A S C I I C H A R A C T E R T A B L E S PC Latin 2 (Slavic) Font Character Set OCR-A Font Character Set...
- Page 116 A S C I I C H A R A C T E R T A B L E S OCR-B Font Character Set ML Euro (858)
- Page 117 ML (850)
-
Page 119: Specifications
SPECIFICATIONS Print Speeds Text Modes Fast Draft Draft Fast Draft High Impact Draft High Impact Letter Quality Optical Quality Graphics Modes 8 Wire Graphics 8 Wire Fast Graphics 9 Wire Graphics 9 Wire Fast Graphics Character Matrix Fast Draft 7x9 in 9x9 cell. Draft 9x9 in 12x9 cell. - Page 120 6 lpi, 8 lpi, or programmable in 1/216th or 1/288th of an inch. * Line Length 13.6 inches. Control Code And Escape Sequence Emulations Genicom 3840 Genicom 3410 ANSI X3.64 Epson FX IBM Proprinter DEC LA-120 and LA-210 Simple TTY Printek Basic Bar Code Paper Handling...
-
Page 121: Computer Interface
S P E C I F I C A T I O N S Bottom tractor feed. Straight paper path with zero waste tear off. Paper width: 2.3 to 15 inches. Paper Slew Rate: 12 inches per second. Ribbon 23,000,000 character, mobius loop cartridge. Special Forms Handling Features Print up to six part forms (.025"... - Page 122 Forced air-cooling. MTBF 10,000 hours on electronics, 100% duty cycle. Print head life of 500,000,000 draft mode (or equivalent) characters. Printer life excluding print head of 1,000,000 pages. Warranty Printer: One year limited warranty for defects in materials and/or workmanship.
- Page 123 Printek Environmental Specifications Power requirements: 100-250 VAC, 50-60Hz Autoswitching Power consumption: 18 W non-printing, 60 W printing. Energy Start Compliant Audible noise: 65 dBA, cooling fan automatically switch to low speed when not printing.
-
Page 125: Glossary Of Terms
The column on the current line where the next character will be printed. Value or configuration that is assumed when the printer is turned on or reset. Draft Font. Dots-per-inch. Generally used to refer to graphics density or resolution. - Page 126 0 through 9 and A through F. Generally refers to the connection between the printer and the host computer. May also be used in reference to the user interface at the control panel of the printer.
- Page 127 Refers to the state of the printer when the ONLINE indicator is not solid green and the printer does not respond to the host computer. Refers to the state of the printer when the...
