Parallel Interface

This interface uses the standard 36 pin parallel connector as shown below.
The default printer emulation is Epson. For a complete description of all the
default settings for this interface, refer to page 57.
Pin Signal
____________________
1 DATA STROBE
19 DATA STROBE RTN
2 DATA 1
20 DATA 1 RETURN
3 DATA 2
21 DATA 2 RETURN
4 DATA 3
22 DATA 3 RETURN
5 DATA 4
23 DATA 4 RETURN
6 DATA 5
24 DATA 5 RETURN
7 DATA 6
25 DATA 6 RETURN
8 DATA 7
26 DATA 7 RETURN
9 DATA 8
27 DATA 8 RETURN
8
S T A R T E D

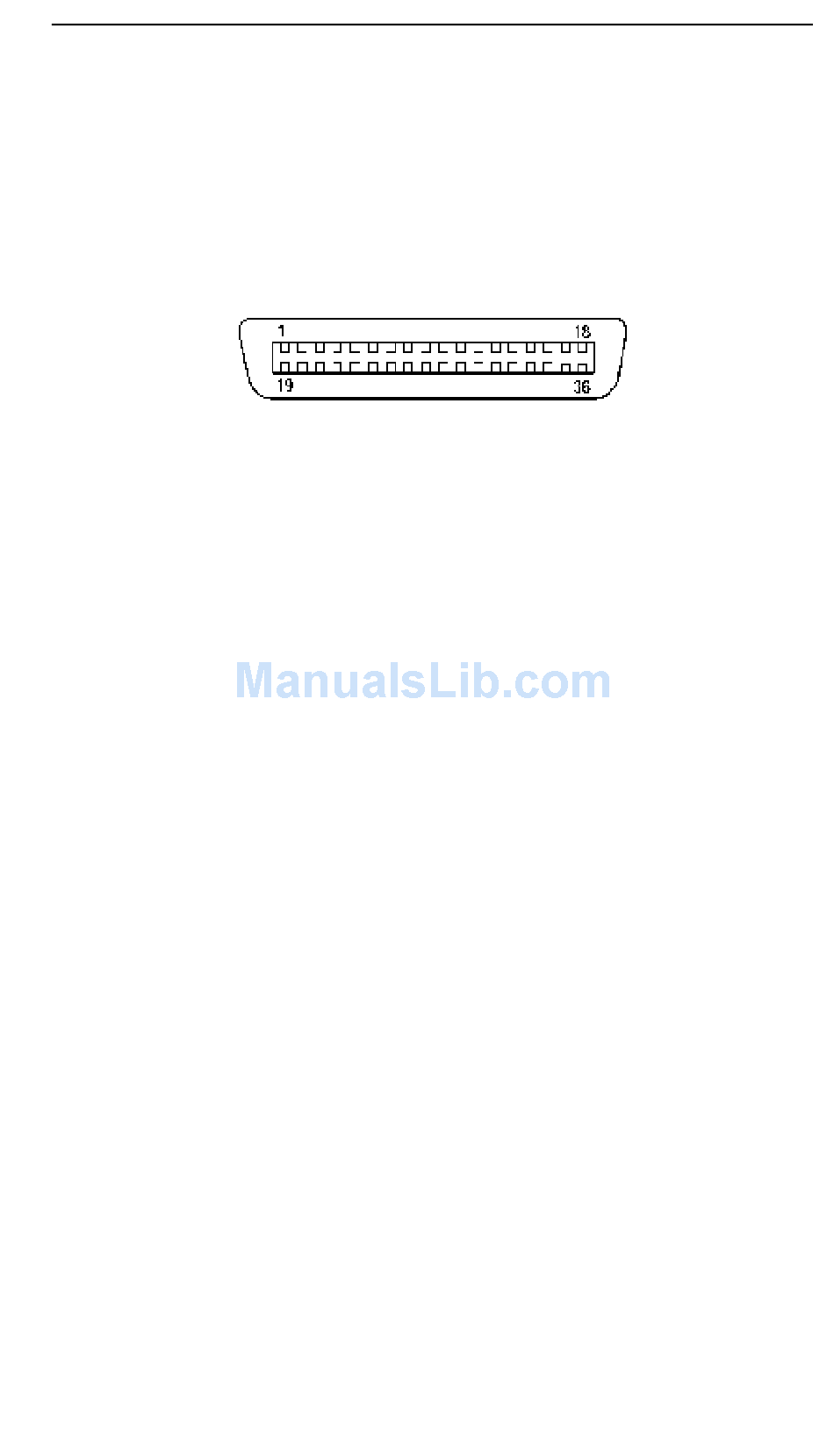

Parallel Interface Connector
Pin Signal
_______________________
10 ACKNOWLEDGE
28 ACKNLG RETURN
11 BUSY
29 BUSY RETURN
12 PAPER ERROR
13 SELECT
________________
14 AUTO FEED
16 ±0V
17 CHASSIS GROUND
18 +5V at 200mA Max.
______
31 INIT
30 INIT RTN
_________
32 FAULT
35 +5V LOGIC HIGH
______________
36 SELECT IN
