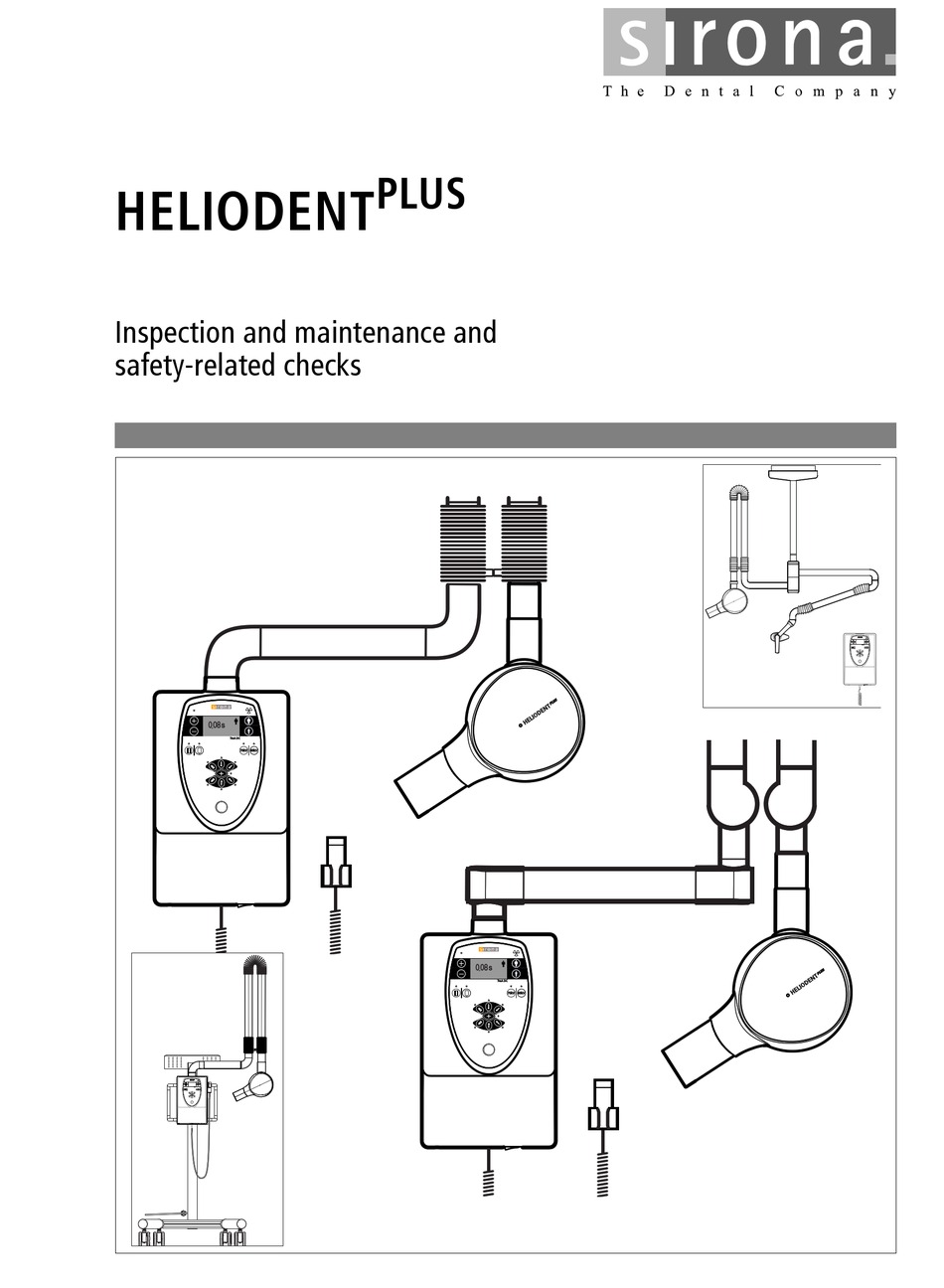

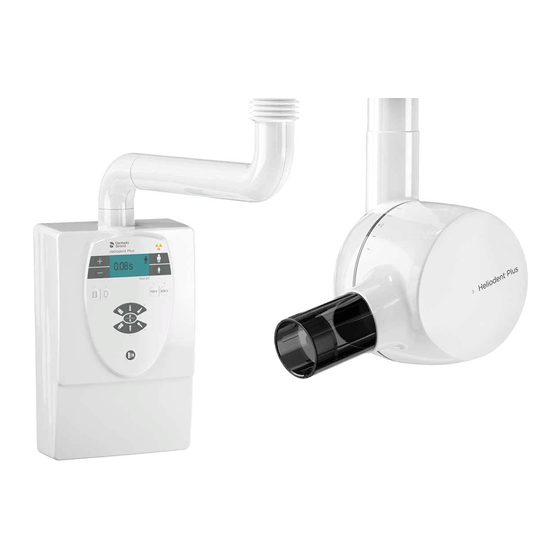

- Page 1 mirp ebiflabkq fåëéÉÅíáçå=~åÇ=ã~áåíÉå~åÅÉ=~åÇ= ë~ÑÉíóJêÉä~íÉÇ=ÅÜÉÅâë 7mA DC 70kV 60kV 7mA DC 70kV 60kV...
- Page 2 Sirona Dental Systems GmbH Dear Customer, You are no doubt eagerly looking forward to using your Sirona X-ray unit for some time to come. Safety and reliability are essential in order to achieve this. Your dental depot offers you service by specially trained engineers for this purpose.
- Page 3 Sirona Dental Systems GmbH Table of contents Table of contents General information ............5 Inspection and maintenance and safety-related checks .... 5 Please fill in the required general information ......5 Annual inspection performed by the system owner or other authorized persons ..........6 Technical documentation ............
- Page 4 Table of contents Sirona Dental Systems GmbH 62 14 923 D 3507 D 3507.105.01.10.02...
-
Page 5: General Information
Sirona Dental Systems GmbH 1 General information General information Inspection and maintenance and safety-related checks Inspections, preventive maintenance and safety-related checks must be performed at scheduled intervals to protect the health and safety of patients, users and other persons. In order to ensure the operational safety and functional reliability of your product, you as the system owner •... -
Page 6: Annual Inspection Performed By The System Owner Or Other Authorized Persons
2 Annual inspection performed by the system owner or other authorized persons Sirona Dental Systems GmbH Annual inspection performed by the system owner or other authorized persons Technical documentation Technical documents Answer questions with yes () or no (− ) -
Page 7: Labels On The System
Sirona Dental Systems GmbH 2 Annual inspection performed by the system owner or other authorized persons Labels on the system Labels on system Answer questions with yes () or no (− ) Date (please enter month/year) All all labels affixed? -
Page 8: Surfaces Of The Unit
2 Annual inspection performed by the system owner or other authorized persons Sirona Dental Systems GmbH Surfaces of the unit Cover parts Answer questions with yes () or no (− ) Date (please enter month/year) Are all cover parts present? -
Page 9: System Functions
Sirona Dental Systems GmbH 2 Annual inspection performed by the system owner or other authorized persons System functions Condition of tube assembly/arm/ remote control/remote timer Answer questions with () or no (− ) Date (please enter month/year) Loss of oil noticeable on tube... -
Page 10: Documenting Your Yearly Inspection
2 Annual inspection performed by the system owner or other authorized persons Sirona Dental Systems GmbH Documenting your yearly inspection The undersigned confirms that he/she has checked the unit for the above criteria. NOTE: If one of the questions is answered with NO or an error message occurs repeatedly, please contact your service engineer. -
Page 11: Safety-Related Checks Performed By The Service Engineer
If you use an automatic tester, you can program it according to these standards. – Application components Type B – Permanently attached unit – Protection Class I The measurements to be performed are complex and time-consuming. Sirona therefore explicitly recommends using an automatic tester. 62 14 923 D 3507 D 3507.105.01.10.02... -
Page 12: Interval For Safety-Related Checks
3 Safety-related checks performed by the service engineer Sirona Dental Systems GmbH Interval for safety-related checks It is essential to perform safety-related checks aimed particularly at detecting electrical faults during initial startup and then every 2 years. All inspections and measurements are performed by the authorized service engineer. They are specified in the following. -
Page 13: Documenting The Safety-Related Check
Sirona Dental Systems GmbH 3 Safety-related checks performed by the service engineer Documenting the safety-related check The undersigned confirms that he/she has checked the unit for the above criteria If any question is answered with No, the fault must be eliminated... -
Page 14: Maintenance By The Service Engineer
4 Maintenance by the service engineer Sirona Dental Systems GmbH Maintenance by the service engineer General information for the service engineer PLUS The Service Manual for HELIODENT (order no. 62 15 102) is absolutely essential for performing mainte- nance, as all of the maintenance required is described therein. -
Page 15: Maintenance Interval
Sirona Dental Systems GmbH 4 Maintenance by the service engineer Maintenance interval NOTE In addition to the annual inspections to be carried out by the system owner or authorized persons, safety-related checks must be performed by the service engineer after 4, 7 and 10 years, and then at two-year intervals. -
Page 16: Maintenance Of Wall Adapter/Remote Timer
4 Maintenance by the service engineer Sirona Dental Systems GmbH Maintenance of wall adapter/remote timer (see Service Manual, chapter on Maintenance) Equipment safety Answer questions with yes () or no (− ) Maintenance interval after X years Date (please enter month/year) -
Page 17: Maintenance Of Arm/Tube Assembly
Sirona Dental Systems GmbH 4 Maintenance by the service engineer Maintenance of arm/tube assembly (see Service Manual, chapter on Maintenance) Equipment safety Answer questions with yes () or no (− ) Maintenance interval after X years Date (please enter month/year) -
Page 18: Maintenance Ceiling Model
4 Maintenance by the service engineer Sirona Dental Systems GmbH Maintenance Ceiling Model Equipment safety Answer questions with yes () or no (− ) Maintenance interval after X years Date (Enter month/year) Is the mounting on the ceiling in a safe condition? -
Page 19: Maintenance Unit Model
Sirona Dental Systems GmbH 4 Maintenance by the service engineer Maintenance Unit model Equipment safety Answer questions with yes () or no (− ) Maintenance interval after X years Date (please enter month/year) Is the fastening on the treatment center in a safe condition? -
Page 20: Final Steps
4 Maintenance by the service engineer Sirona Dental Systems GmbH Final steps Equipment safety Answer questions with yes () or no (− ) Maintenance interval after X years Date (please enter month/year) Complete functional test performed? (see Operating Instructions) System cleaned? 4.10... - Page 21 Sirona Dental Systems GmbH 4 Space for remarks Space for remarks 62 14 923 D 3507 D 3507.105.01.10.02...
- Page 22 4 Space for remarks Sirona Dental Systems GmbH 62 14 923 D 3507 D 3507.105.01.10.02...
- Page 24 tÉ=êÉëÉêîÉ=íÜÉ=êáÖÜí=íç=ã~âÉ=~åó=~äíÉê~íáçåë=ïÜáÅÜ=ã~ó=ÄÉ=êÉèìáêÉÇ=ÇìÉ=íç=íÉÅÜåáÅ~ä=áãéêçîÉãÉåíëK «=páêçå~=aÉåí~ä=póëíÉãë=dãÄe=OMMV péê~ÅÜÉW ÉåÖäáëÅÜ= mêáåíÉÇ=áå=dÉêã~åó a=PRMTKNMRKMNKNMKMO===MVKOMNS ûKJkêKW NOO=UMV fãéêáã¨=Éå=^ääÉã~ÖåÉ páêçå~=aÉåí~ä=póëíÉãë=dãÄe SO=NQ=VOP=a=PRMT c~Äêáâëíê~≈É=PN lêÇÉê=åçK SQSOR=_ÉåëÜÉáã dÉêã~åó ïïïKëáêçå~KÅçã...
